Hager is a German-founded switchgear maker whose modular devices are common in UAE distribution boards. The 52 items here lean heavily towards earth-leakage protection — roughly half the page is RCCBs — alongside Type C MCBs, HHA moulded-case breakers, modular isolators, installation contactors and DIN-rail time switches.
How do I read a Hager RCCB code?

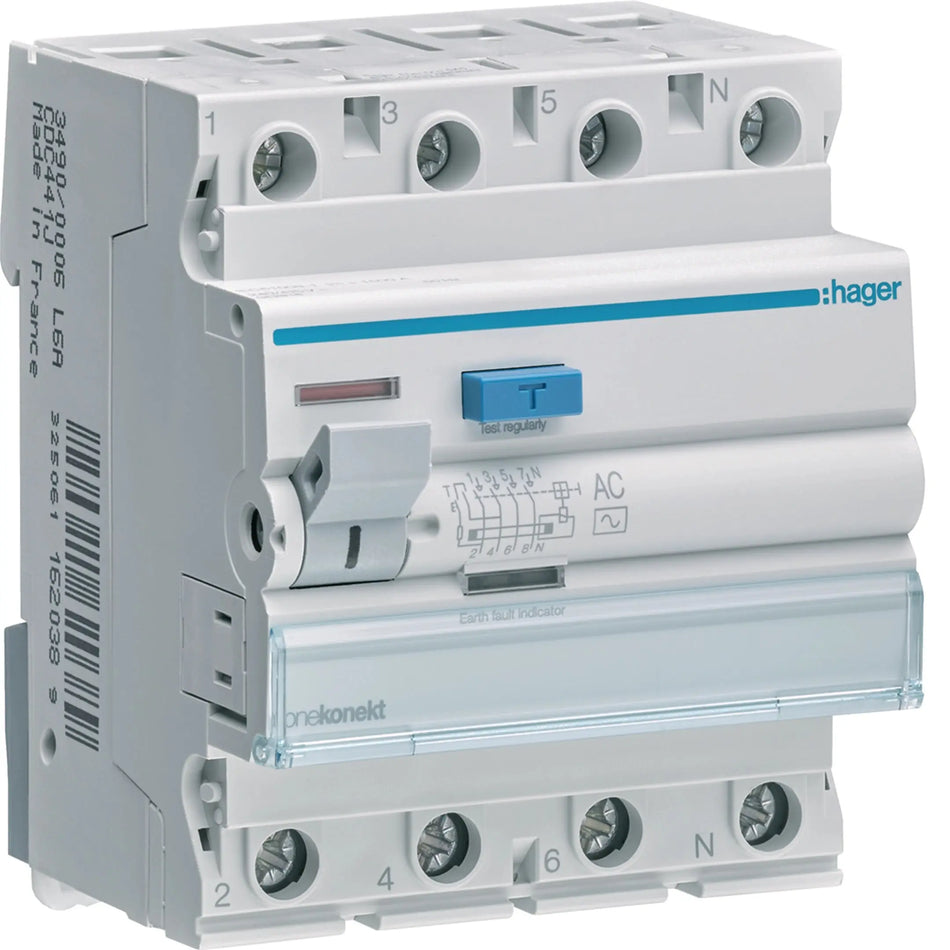

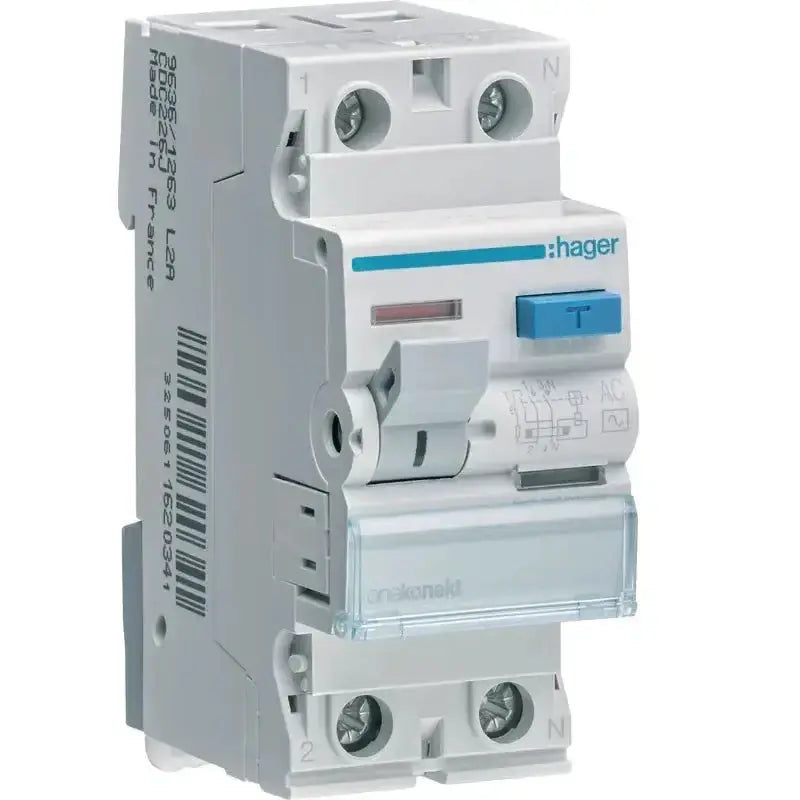

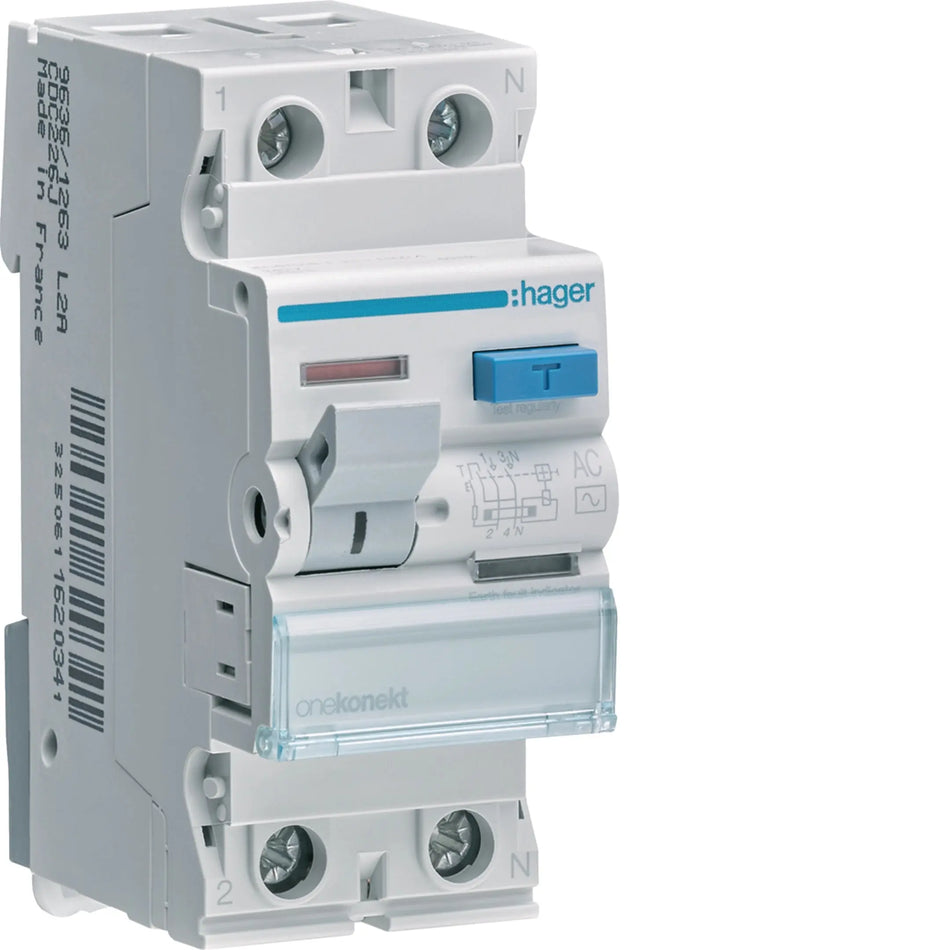

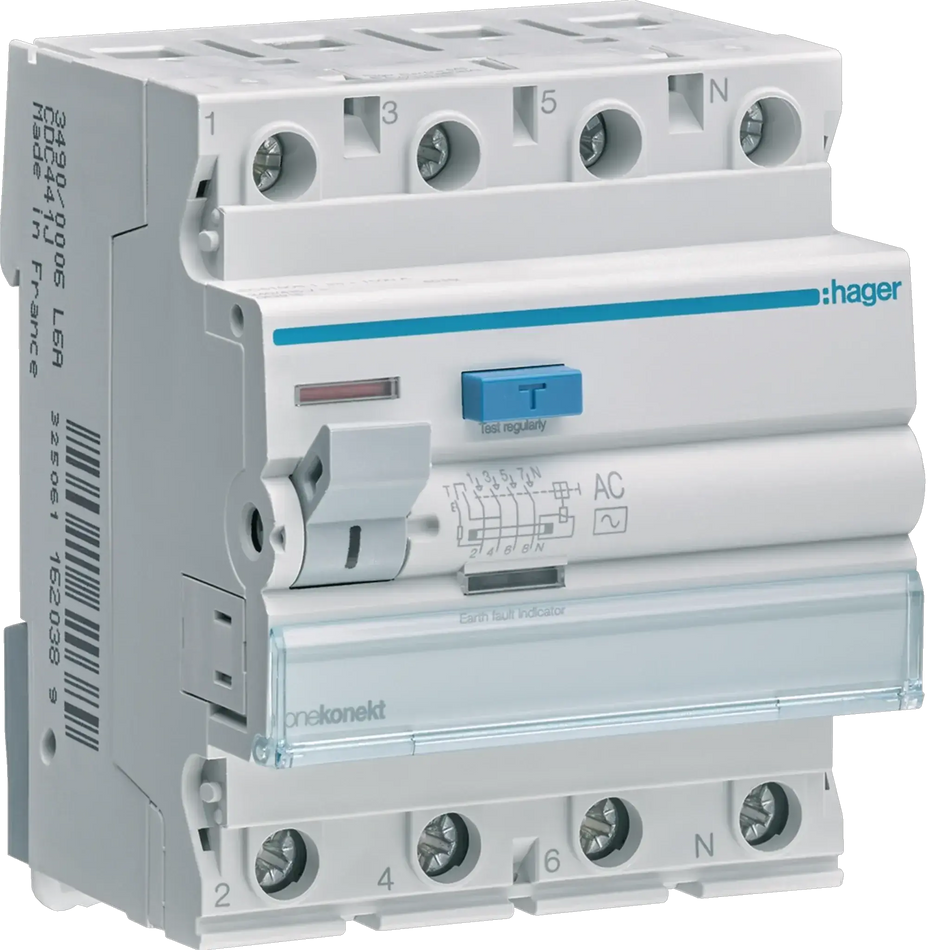

The catalogue numbers are systematic once the pattern is clear. Across the C-series RCCBs the second letter tracks sensitivity: CD is 30mA, CE is 100mA and CF is 300mA. So CDC441J is a 40A four-pole 30mA device and CFC264J is a 63A two-pole 300mA one. When replacing like for like, match the full code on the existing unit, not the amperage alone: a 100mA device occupies the same space as a 30mA one and behaves very differently.
Onekonekt or the older C-series?
Onekonekt is Hager's newer modular platform, represented here by RCCBs including CCC217J at 10mA, CDC226J, CEC226J and CEC426J, plus the SBN464N 63A four-pole main switch. The longer-running C-series, listed as made in France, covers the heavier end with 100A two- and four-pole RCCBs. Mixing platforms in one board comes down to busbar and terminal compatibility, so check what the existing board is built around.
What else on this page mounts on the rail?

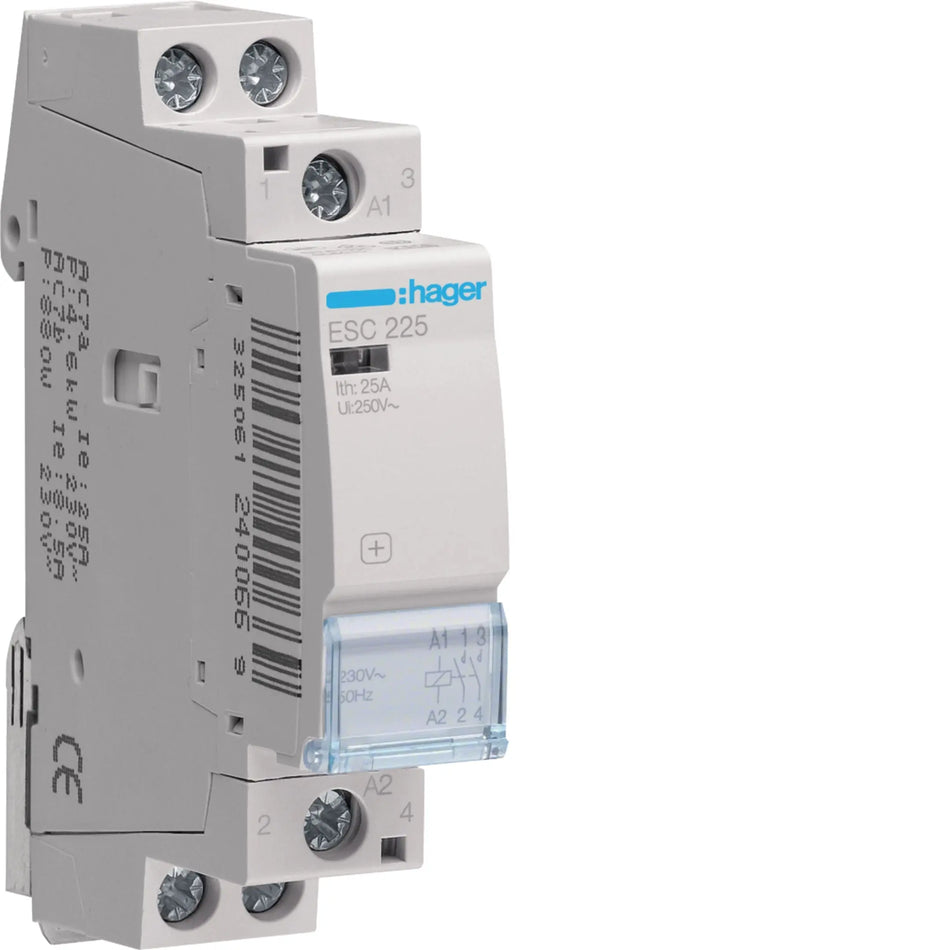

MCN, MW and MU series MCBs in one to four poles, the HLF390S 100A 10kA three-pole, JG and SBN modular isolators from 32A to 90A, ESC installation contactors from 25A to 63A for lighting and pump duty, and EHN daily and weekly time switches.
Device selection and any change inside a live board is work for a licensed electrician. Photograph your board and we will identify the replacements.
