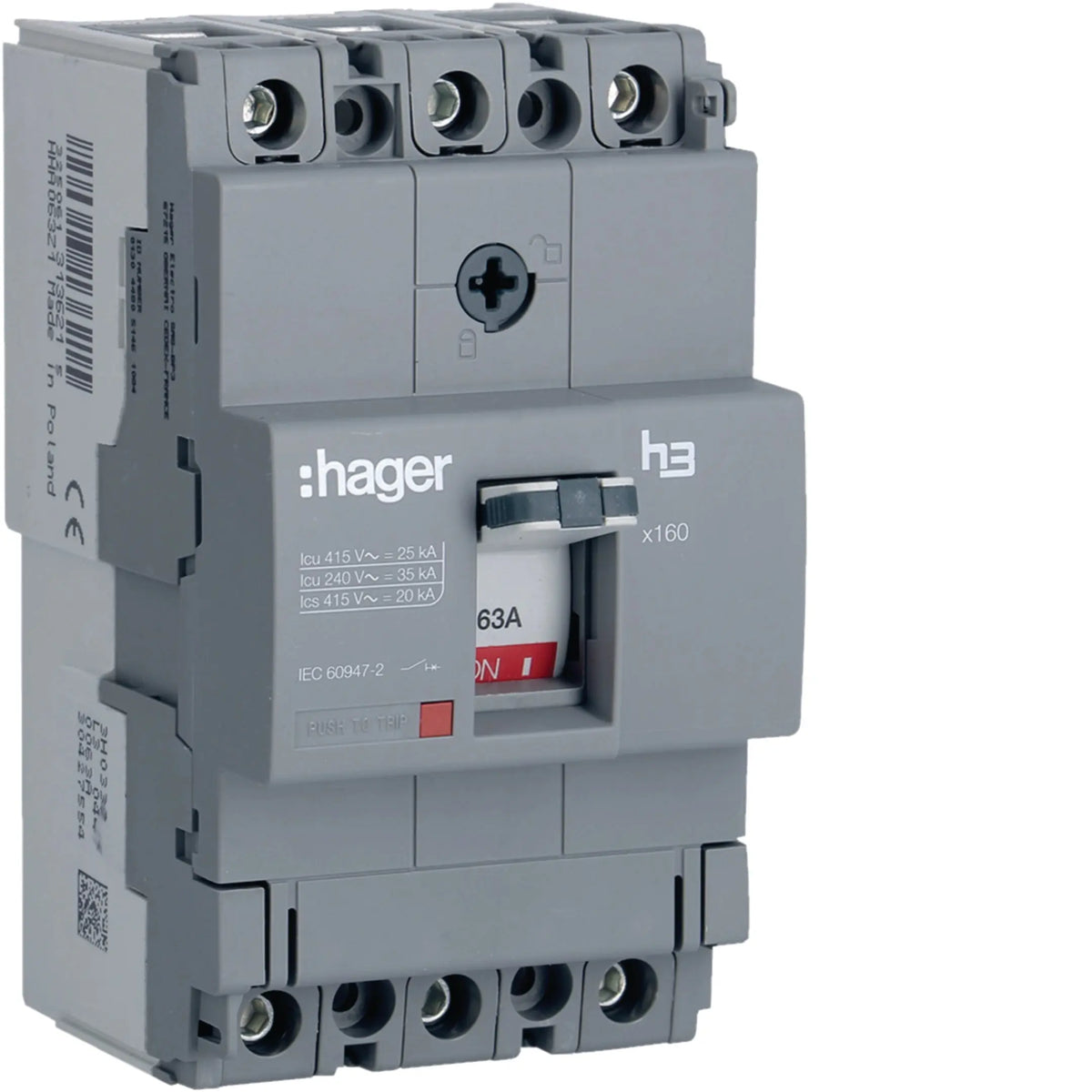

Hager HHA063Z 3-Pole 63A MCCB
The Hager HHA063Z is a 3-pole 63A MCCB for sub-main feeder and incoming circuit protection in UAE commercial and industrial distribution boards, providing reliable protection for higher-current three-phase circuits.
Key Features
- 3-pole 63A MCCB for three-phase circuit protection
- Fixed front mounting
- Genuine Hager MCCB quality
Technical Specifications
| Specification |
Details |
| Brand |
Hager |
| Model |
HHA063Z |
| Rated Current |
63A |
| Poles |
3 |
| Voltage |
415V AC |
Applications
- Three-phase sub-main and incoming circuit protection
- Commercial and industrial DB MCCB protection
- Motor feeder and power circuit protection
- Building services main distribution protection
FAQ
-
What's the difference between an MCCB and an MCB?
MCCBs (moulded case circuit breakers) handle higher current ratings than standard MCBs and are typically used as main incomers or sub-main protection in distribution boards, rather than on individual final circuits.
-
How many poles do I need?
This is a 3-pole, 63A unit, sized for a three-phase supply or sub-main.
-
Can I install this myself?
No — an MCCB of this rating is installed as part of a distribution board's main protection and must be fitted and commissioned by a licensed electrician.
-
Where is this typically used?
As the main incomer or sub-main breaker in commercial, industrial, or larger residential distribution boards, protecting the downstream final-circuit MCBs and RCCBs.
