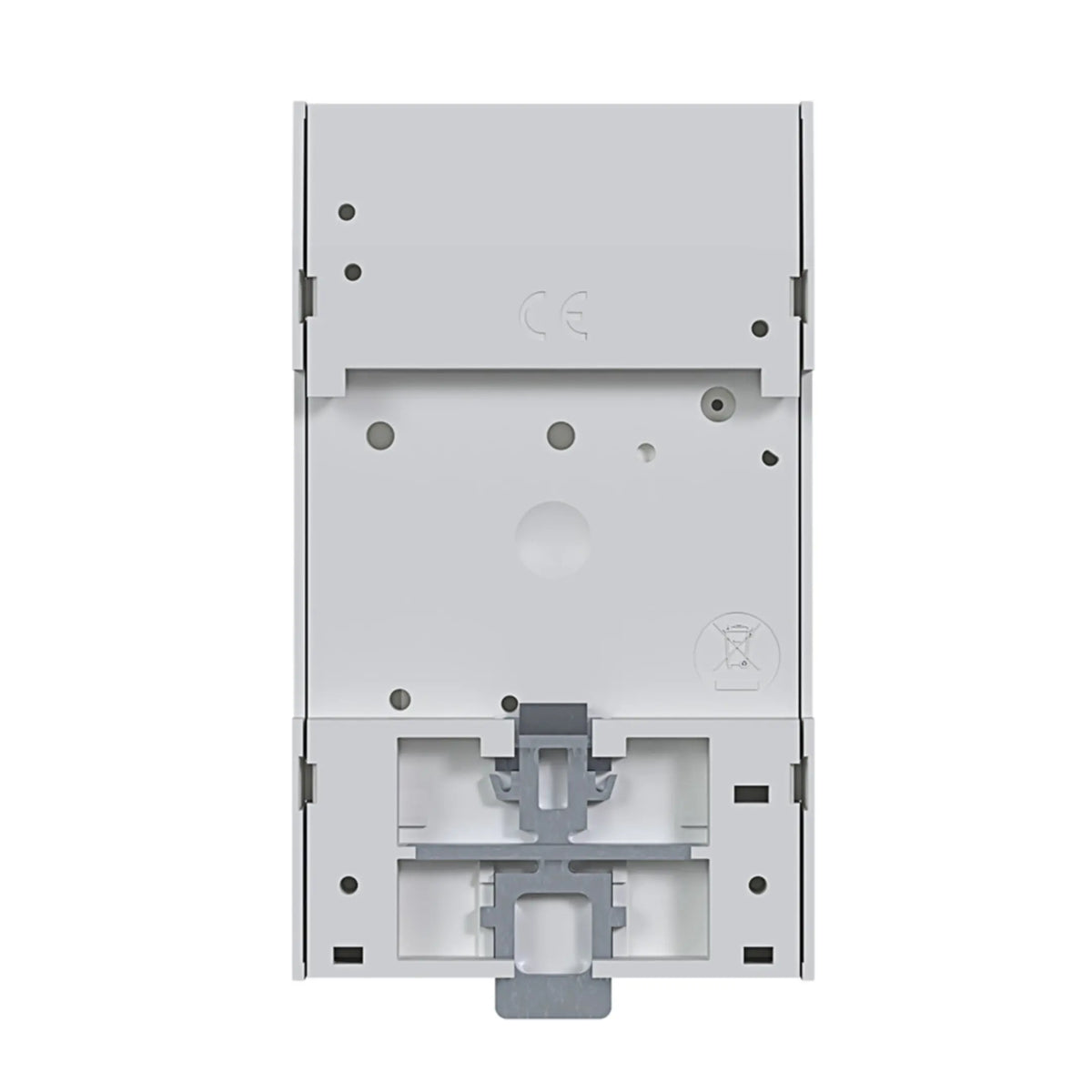

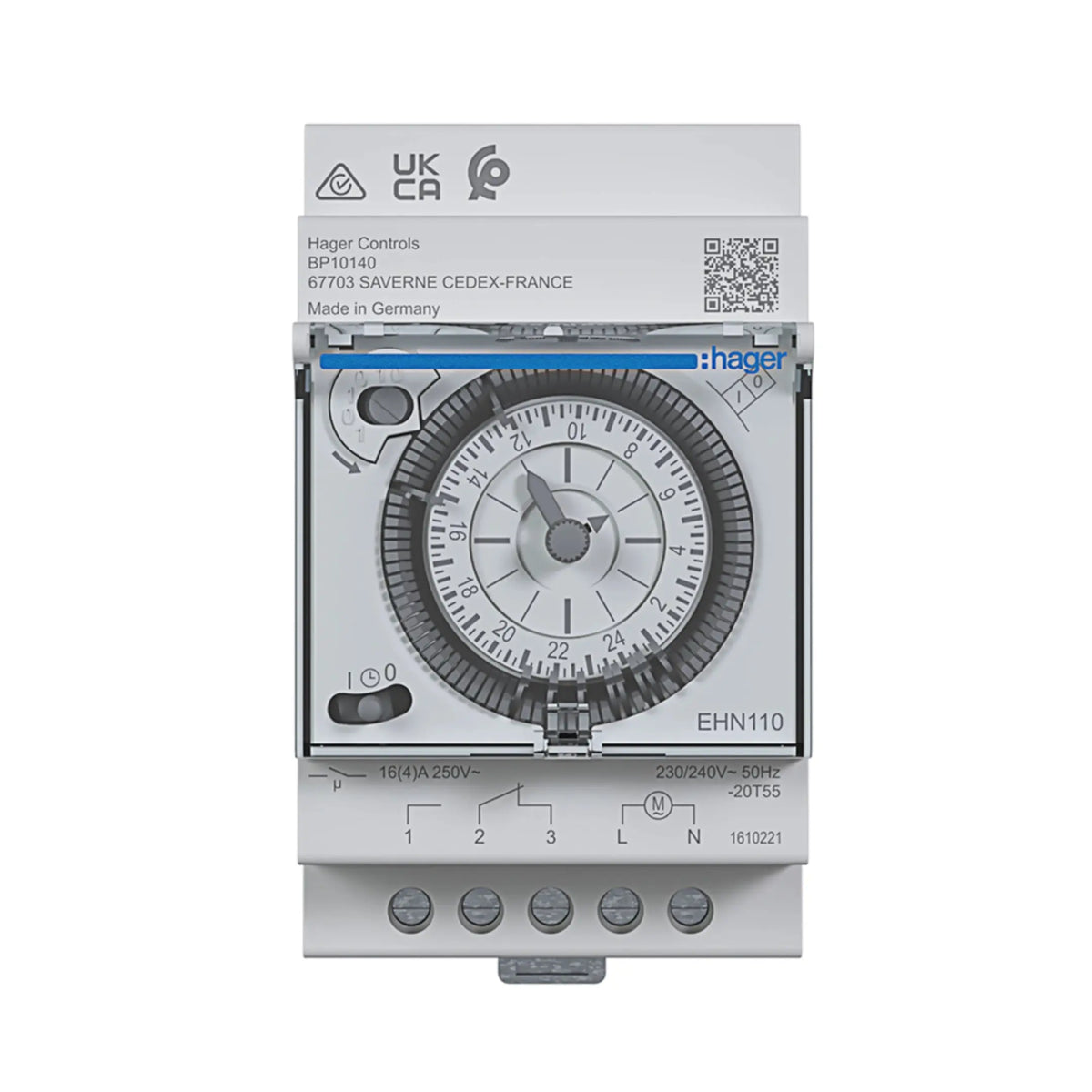

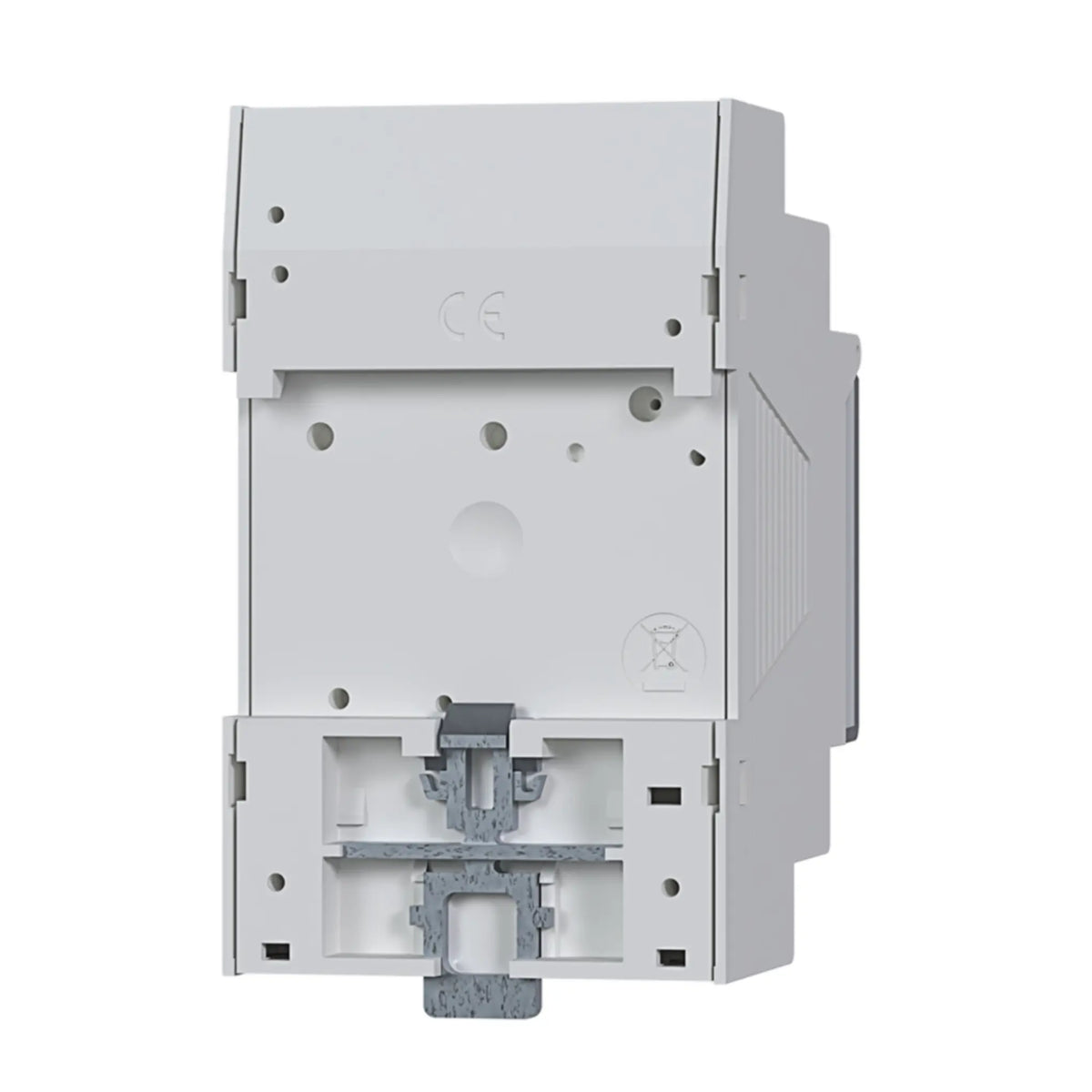

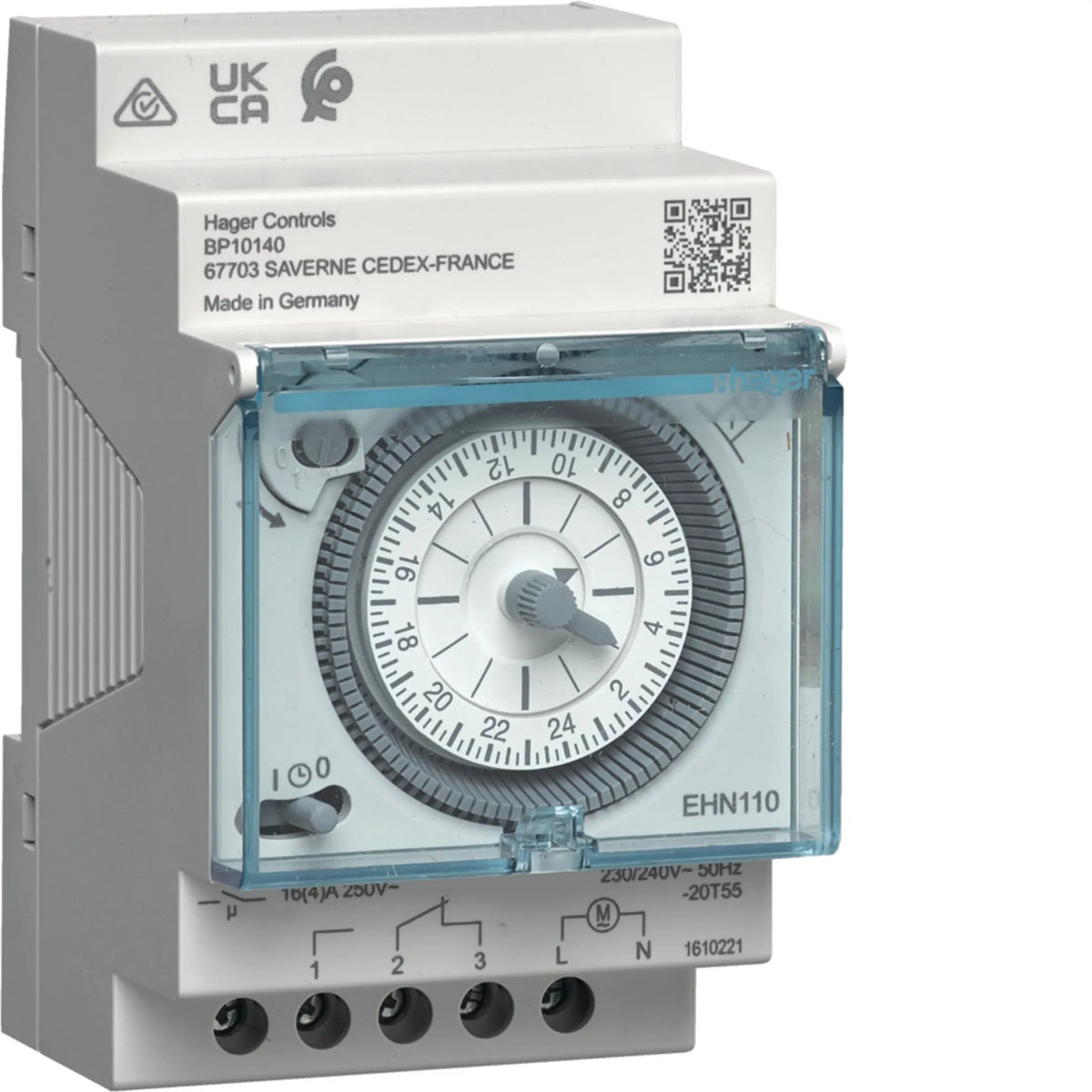

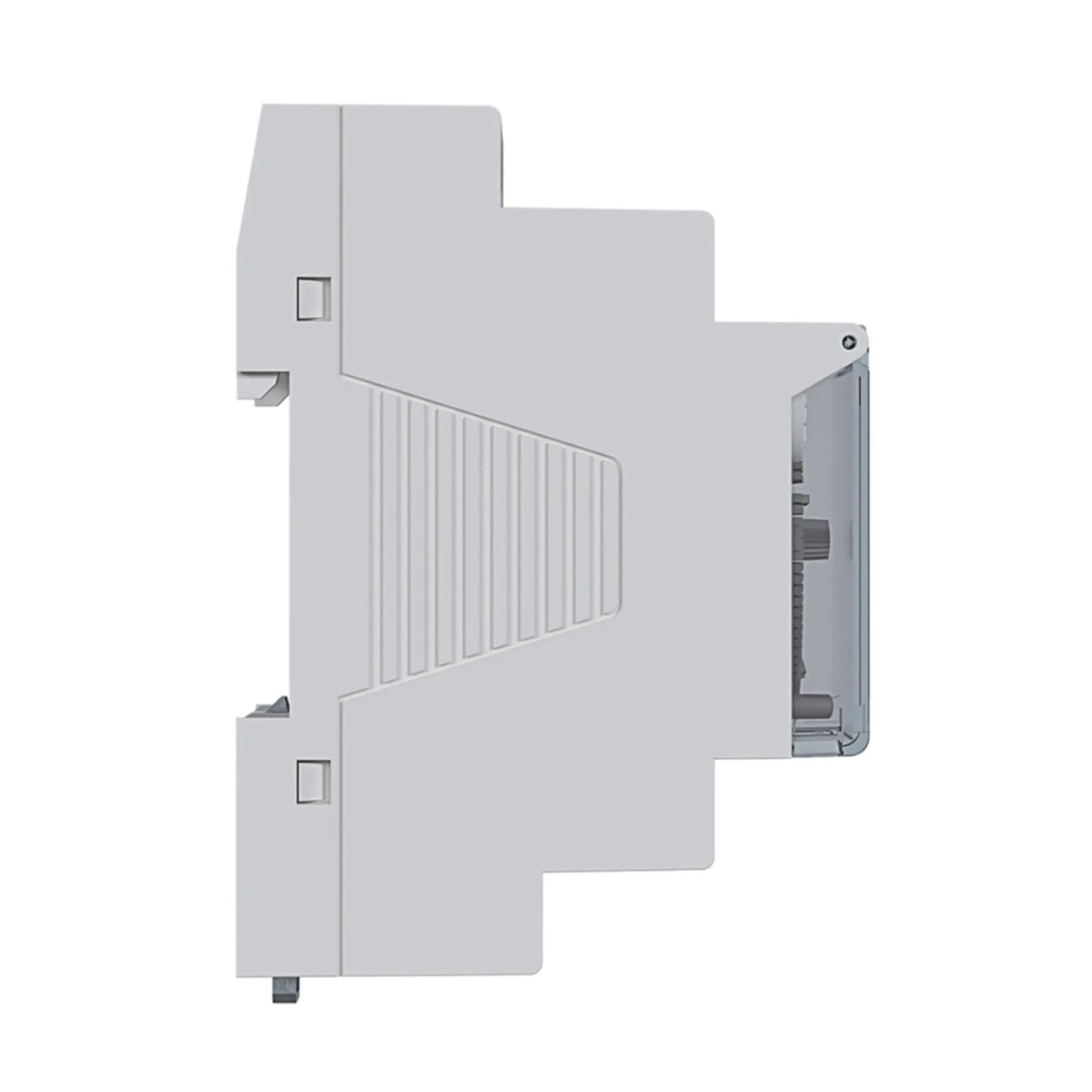

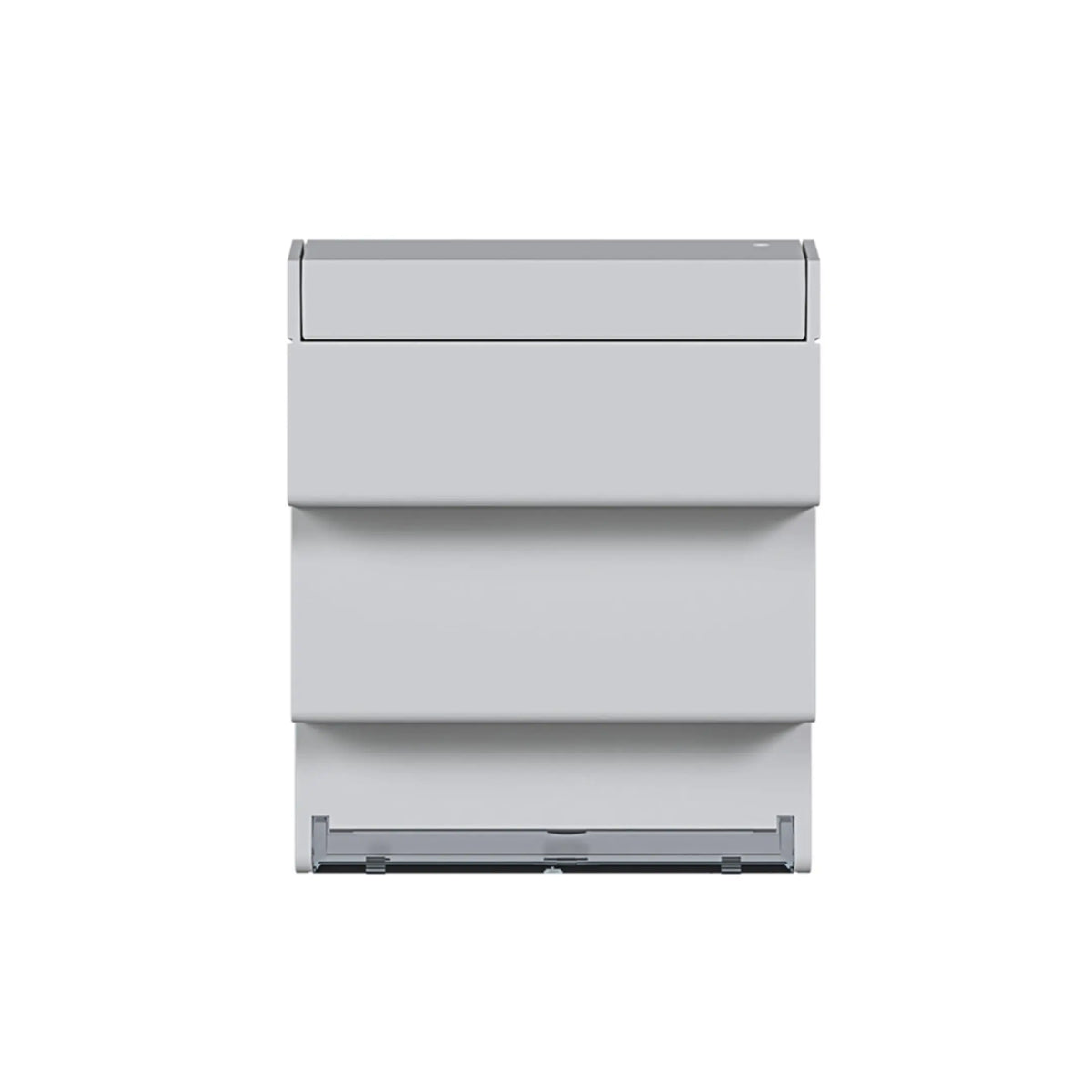

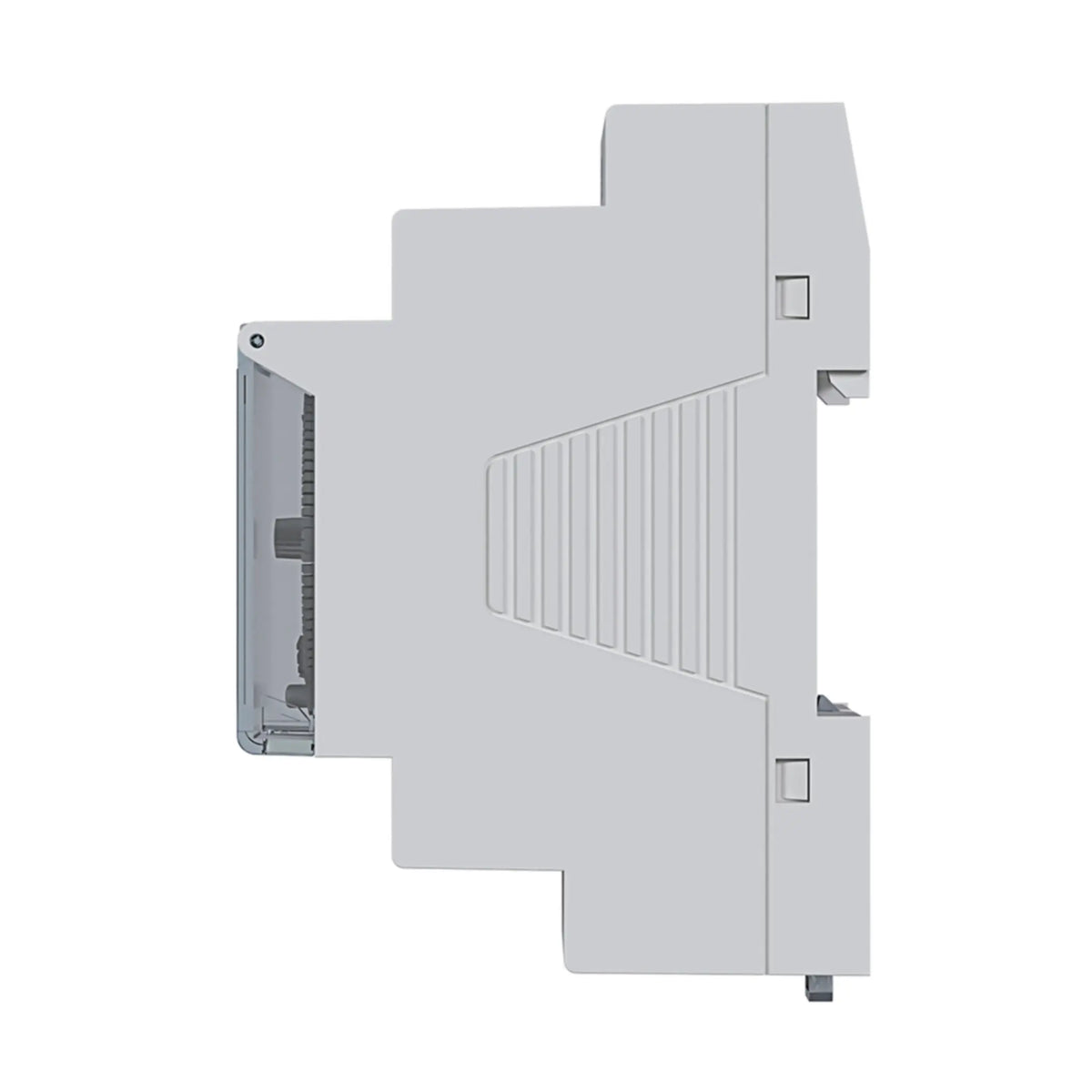

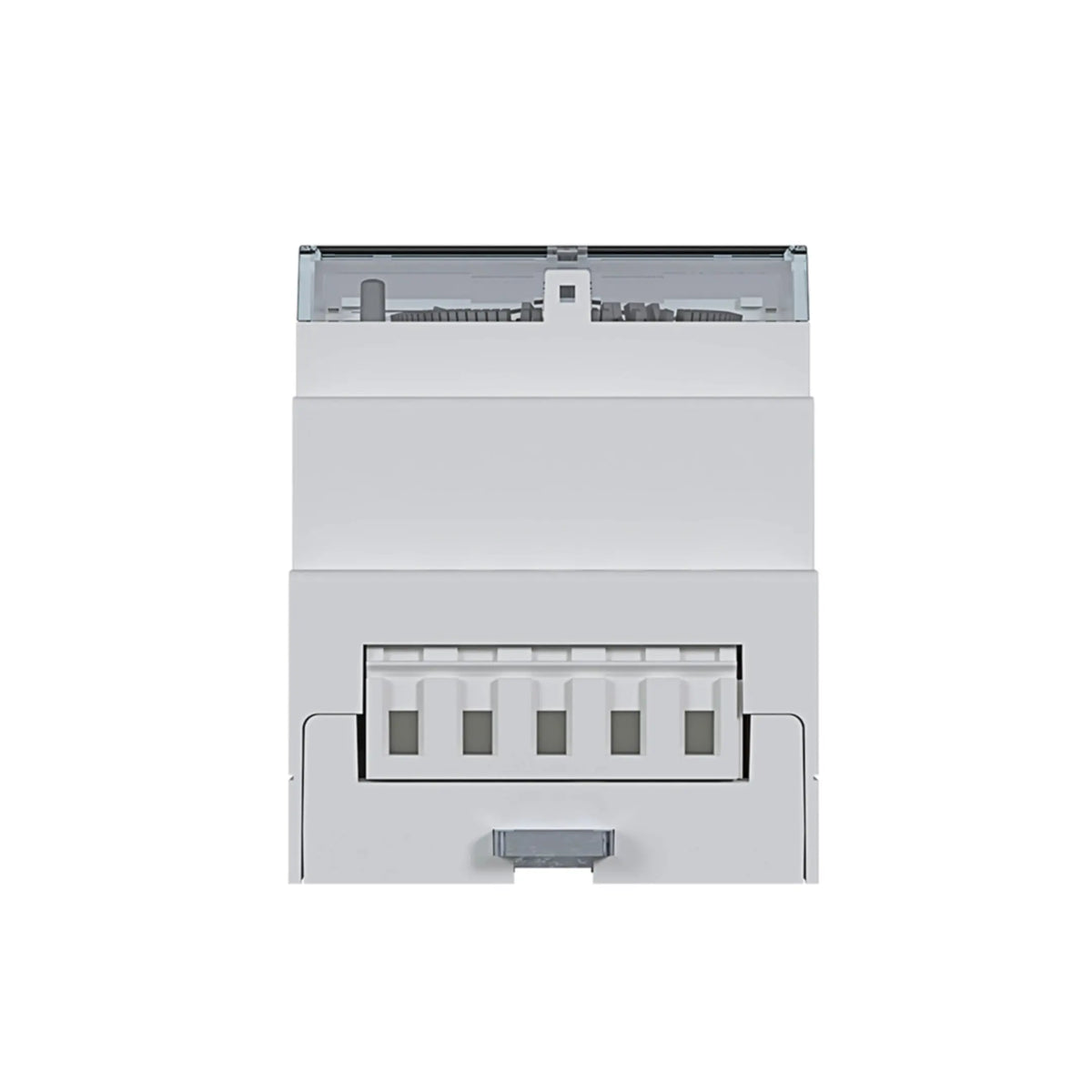

Hager EHN110 Digital Time Switch 230V 1-Channel Weekly
The Hager EHN110 is a 1-channel DIN rail-mounting digital time switch with a weekly programme for automated timer control of lighting, HVAC, and general electrical loads in UAE residential, commercial, and industrial panels. Its easy-to-programme interface and battery backup make it a reliable choice for building automation and energy management applications.
Key Features
- 1-channel digital timer with weekly programming capability
- 230V AC supply voltage for UAE standard panel installation
- Battery backup maintains programme and time during power cuts
- DIN rail mounting for standard panel and DB installation
- Genuine Hager time switch quality
Technical Specifications
| Specification |
Details |
| Brand |
Hager |
| Model |
EHN110 |
| Channels |
1 |
| Programme |
Weekly (7-day) |
| Supply Voltage |
230V AC 50/60Hz |
| Contact Rating |
16A |
| Mounting |
DIN Rail (2 modules) |
Applications
- Automated lighting control in residential and commercial buildings
- HVAC, heating, and ventilation timer control
- Building services scheduled switching
- Energy management and automated load control
FAQ
-
Can I install this myself?
No — a DIN rail time switch is wired inside a distribution board, typically feeding a contactor for higher-current loads. Installation should go through a licensed electrician.
-
Does this need a contactor for lighting or HVAC circuits?
Yes, if the load exceeds the time switch's own contact rating — pair it with a Hager installation contactor (e.g. the ESC range) so the timer switches the contactor's control coil rather than the load directly.
-
What happens to the programme during a power cut?
The battery backup retains the time and programme settings through short power interruptions, so scheduled switching resumes automatically once power is restored.
-
Can the programme be changed after installation?
Yes — the programme is fully reprogrammable at any time via the front-panel controls, without needing to rewire anything.
