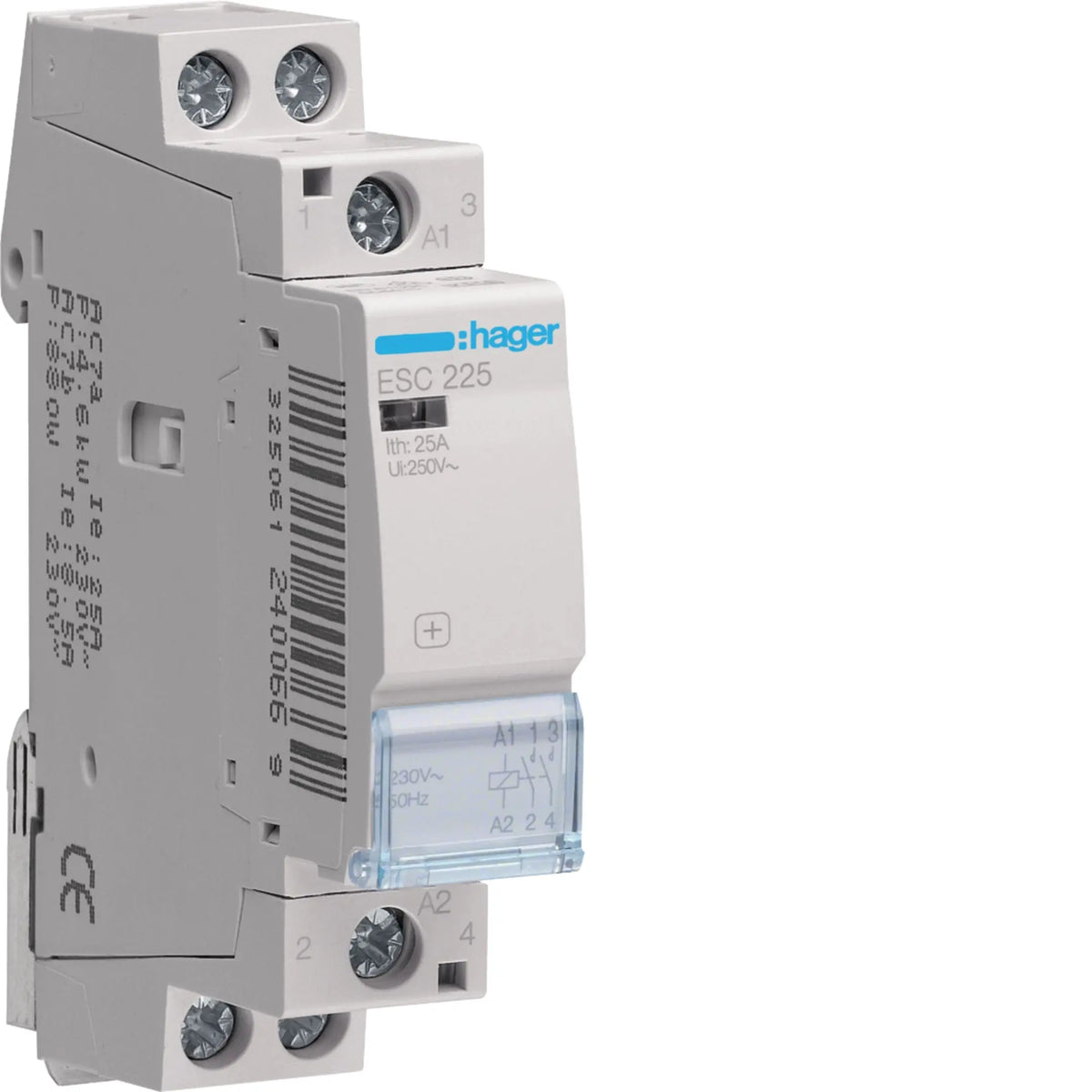

Hager ESC225 25A 2-pole installation contactor 230V AC — official Hager product photo

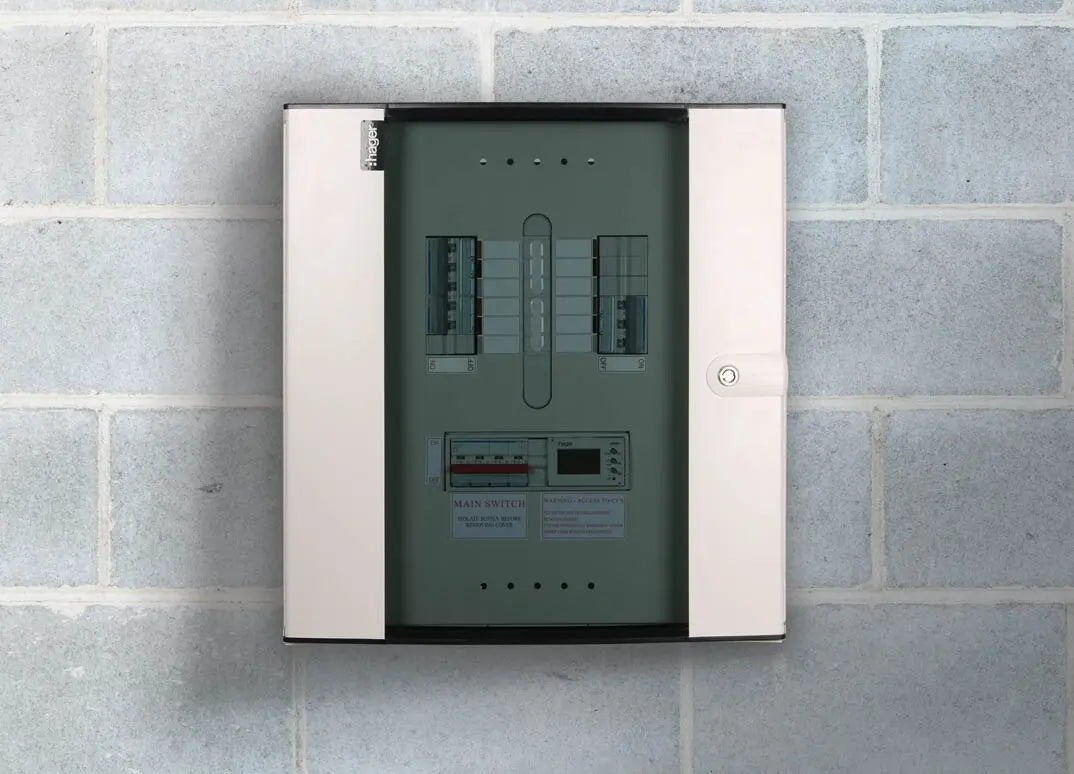

Hager commercial distribution board installation — genuine Hager installation photography (representative application)
Hager ESC225 25A 2-Pole Installation Contactor 230V AC Hager
Hager ESC225 25A 2-pole installation contactor 230V AC — official Hager product photo
Hager commercial distribution board installation — genuine Hager installation photography (representative application)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Hager

Hager ESC225 25A 2-Pole Installation Contactor 230V AC

(0)
AED 60.00 inc. VAT
In stock
Usually ships within 24 hours
Fast UAE delivery & easy returns

Order before 12 PM for same-day dispatch. Delivered in 1–2 business days across the UAE, free on orders over AED 200 (AED 15 below). Unused items in sealed packaging can be returned within 7 days.

Free UAE delivery over AED 200
100% secure payments
Genuine branded products

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

Hager ESC225 25A 2-Pole Installation Contactor 230V AC

The Hager ESC225 is a 25A 2-pole installation contactor with a 230V AC coil for lighting, heating, and general load switching in UAE residential and commercial distribution boards. Compact and reliable, it is ideal for timer-controlled and BMS-controlled circuit switching.

Key Features

  • 25A 2-pole installation contactor for single-phase load switching
  • 230V AC 50/60Hz coil for UAE standard panel supply
  • DIN rail mounting for DB installation
  • Suitable for lighting, heating, and general switching
  • Genuine Hager contactor quality

Technical Specifications

Specification Details
Brand Hager
Model ESC225
Rated Current 25A
Poles 2
Coil Voltage 230V AC 50/60Hz
Mounting DIN Rail

Applications

  • Lighting circuit control in residential and commercial buildings
  • Heating and HVAC load switching
  • Timer and BMS-controlled switching
  • Building services distribution panel applications

FAQ

  • What is an installation contactor used for?
    A contactor switches a circuit remotely or automatically in response to a control signal — commonly used for lighting, heating, or HVAC loads controlled by a time switch, sensor, or building management system, rather than a manual switch.
  • How many poles do I need?
    This is a 2-pole, 25A unit. Match the pole count to the circuit being switched — single-phase loads need the corresponding pole count.
  • Can I install this myself?
    No — a contactor is wired into a distribution board alongside its control circuit and must be installed by a licensed electrician.
  • Can this be paired with a time switch?
    Yes — pairing a contactor with a Hager time switch (e.g. the EHN range) is a common way to give a manually-rated circuit automated, scheduled control without exceeding the time switch's own contact rating.
