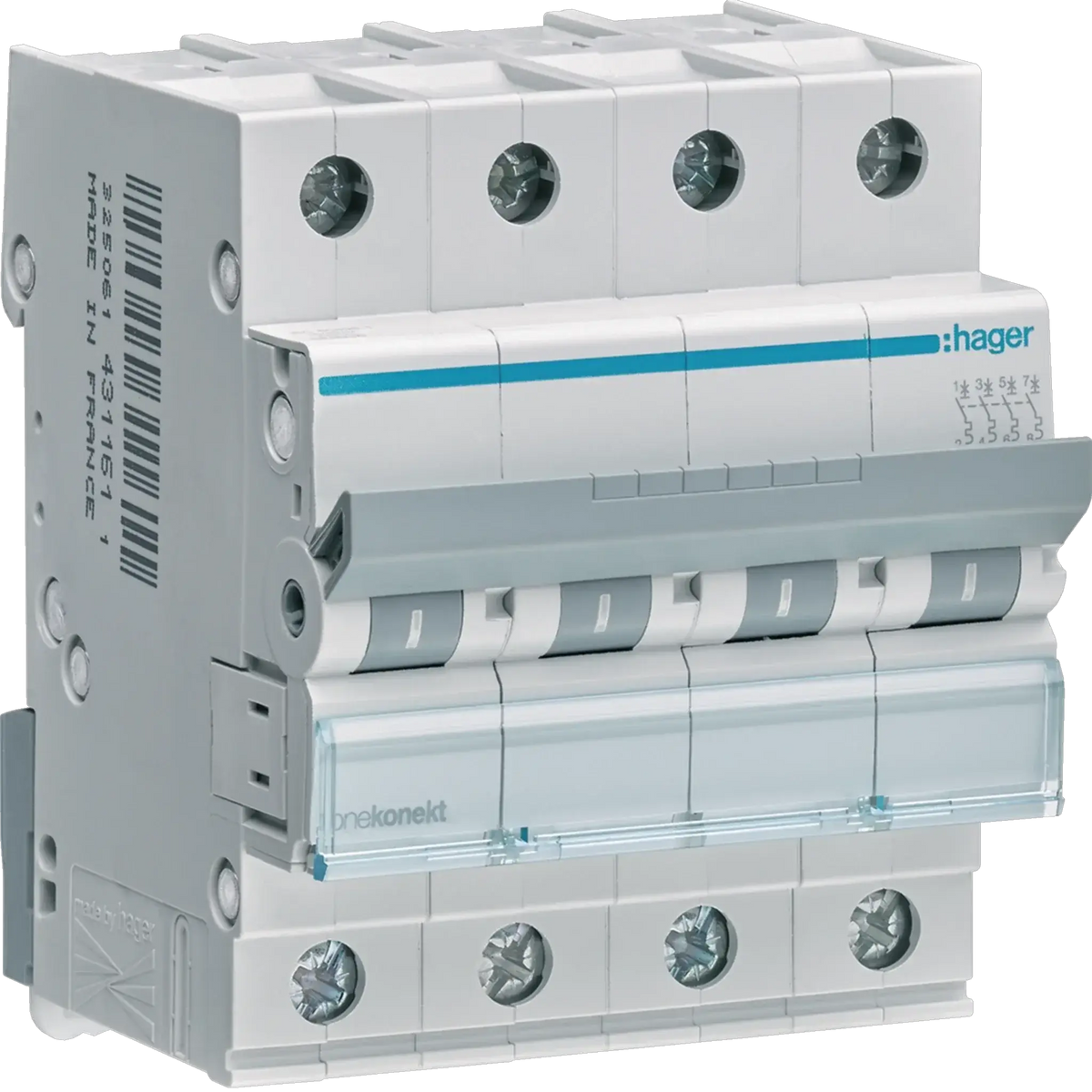

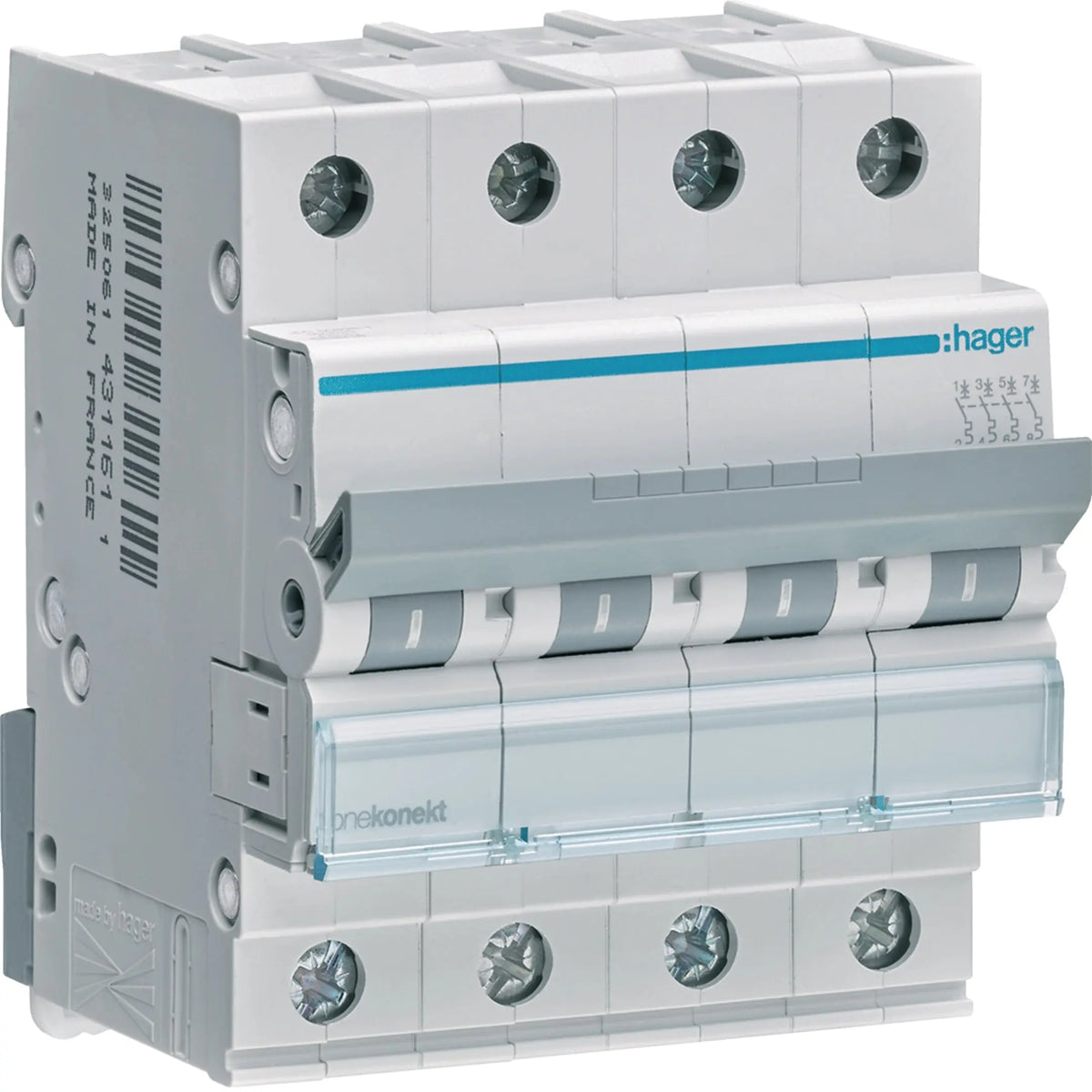

Hager MCN463 MCB 63A 4-Pole 6kA Type C
The Hager MCN463 is a 63A, 4-pole miniature circuit breaker (MCB) built to protect distribution circuits from overloads and short circuits. With a Type C tripping curve and 6kA breaking capacity, it suits circuits with moderate inrush current — motors, transformers, and mixed commercial loads — across residential, commercial, and industrial panels. Made in France, it carries Hager's full European engineering and manufacturing standard for long service life in demanding installations.
Key Features
- 63A rated current, Type C tripping curve (5–10 × In) for loads with moderate inrush
- 4-pole (4P) design — switches all phases plus neutral together
- 6kA breaking capacity (Icn) for reliable fault clearance
- 400V rated operational voltage, 50/60Hz
- Compact 4-module DIN rail mounting, IP20 enclosure
- Screw terminals rated 1–35mm² (rigid) / 1–25mm² (flexible) conductors
- Complies with IEC safety standards for miniature circuit breakers
- Made in France — genuine Hager build quality
Technical Specifications
| Specification |
Details |
| Brand |
Hager |
| Model |
MCN463 |
| Device Type |
MCB (Miniature Circuit Breaker) |
| Rated Current (In) |
63 A |
| Poles |
4P (Four Pole) |
| Tripping Curve |
Type C (5–10 × In) |
| Breaking Capacity (Icn / Ics / Icu) |
6 kA |
| Rated Operational Voltage |
400 V AC |
| Frequency |
50–60 Hz |
| Rated Insulation Voltage |
500 V |
| Rated Impulse Withstand Voltage |
4 kV |
| Mounting Width |
4 modules (DIN rail) |
| IP Rating |
IP20 |
| Terminal Capacity |
1–35 mm² (rigid) / 1–25 mm² (flexible) |
| Standards |
IEC safety standards for MCBs |
Applications
- Residential villas and apartment complexes
- Commercial buildings: offices, schools, hospitals, retail spaces

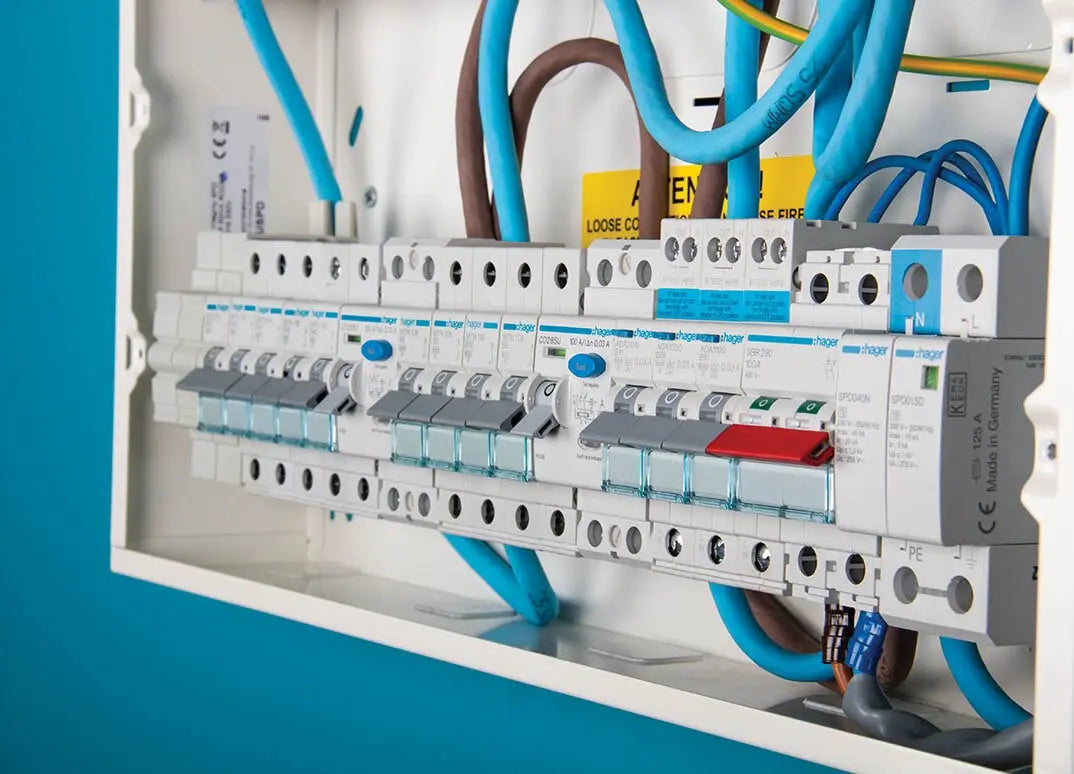

- Industrial distribution boards and panels
- Projects requiring robust 4-Pole 63A MCB protection
FAQ
-
What's the difference between an MCB and an RCCB/RCD?
An MCB (like the MCN463) protects circuits and wiring against overload and short-circuit current. An RCCB/RCD protects people against earth leakage/electric shock by monitoring current imbalance. The two do different jobs and are typically installed together in a distribution board, not as substitutes for each other.
-
Is the MCN463 compatible with my existing Hager distribution board?
Yes. The MCN463 is a standard 4-module Hager DIN-rail MCB and clips directly onto Hager DB rails alongside other Hager MCBs, RCCBs, and accessories.
-
What does the Type C curve mean, and is it right for my circuit?
Type C breakers trip on short circuit at 5–10 times their rated current, giving them tolerance for the inrush of motors, transformers, and other inductive loads. They're a common general-purpose choice for commercial and light industrial circuits; Type B is typically reserved for purely resistive residential circuits with low inrush.
-
How many poles do I need for a 4-pole circuit?
A 4-pole (4P) breaker switches all three phases plus the neutral. Use 4P when you need to fully isolate a three-phase circuit, including the neutral conductor — common on larger commercial and industrial distribution boards.
-
Can I install this myself?
No. MCBs are hardwired into a live distribution board and must be installed or replaced by a licensed electrician in line with UAE wiring regulations.
