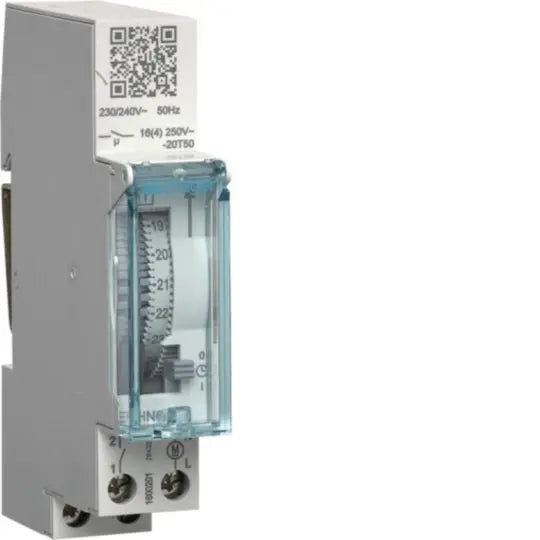

The Hager EHN010 is a compact 1-module daily time switch with a 24-hour programme cycle for automated switching of lighting, heating, ventilation, and general electrical loads in UAE residential, commercial, and industrial distribution boards. Its single DIN rail module width makes it one of the most space-efficient daily timers available, integrating neatly alongside MCBs and contactors in standard DBs.
| Specification | Details |
|---|---|
| Brand | Hager |
| Model | EHN010 |
| Type | Daily time switch (24-hour cycle) |
| Channels | 1 |
| DIN Rail Modules | 1 (17.5mm wide) |
| Rated Voltage | 220–240V AC |
| Frequency | 50Hz |
| Contact Rating | 3A (cos φ 0.6) |
| Switch Mode | NO (Normally Open) contact |
| Programme Cycle | 24 hours (daily) |
| Shortest Switching Time | 15 minutes |
| Max Load — Incandescent | 1000W |
| Max Load — Halogen (230V) | 900W |
| Max Load — LED | 300W |
| Connection | Screw terminals, 1–6mm² (flexible & rigid) |
| Mounting | DIN rail |
| Dimensions (H × W × D) | 90mm × 17.5mm × 60mm |
| Operating Temperature | -20°C to +50°C |
| Electrical Durability | 50,000 operating cycles (AC1) |
| Power Consumption | 1W |
| RoHS Compliant | Yes |
| REACh-SVHC Free | Yes |
