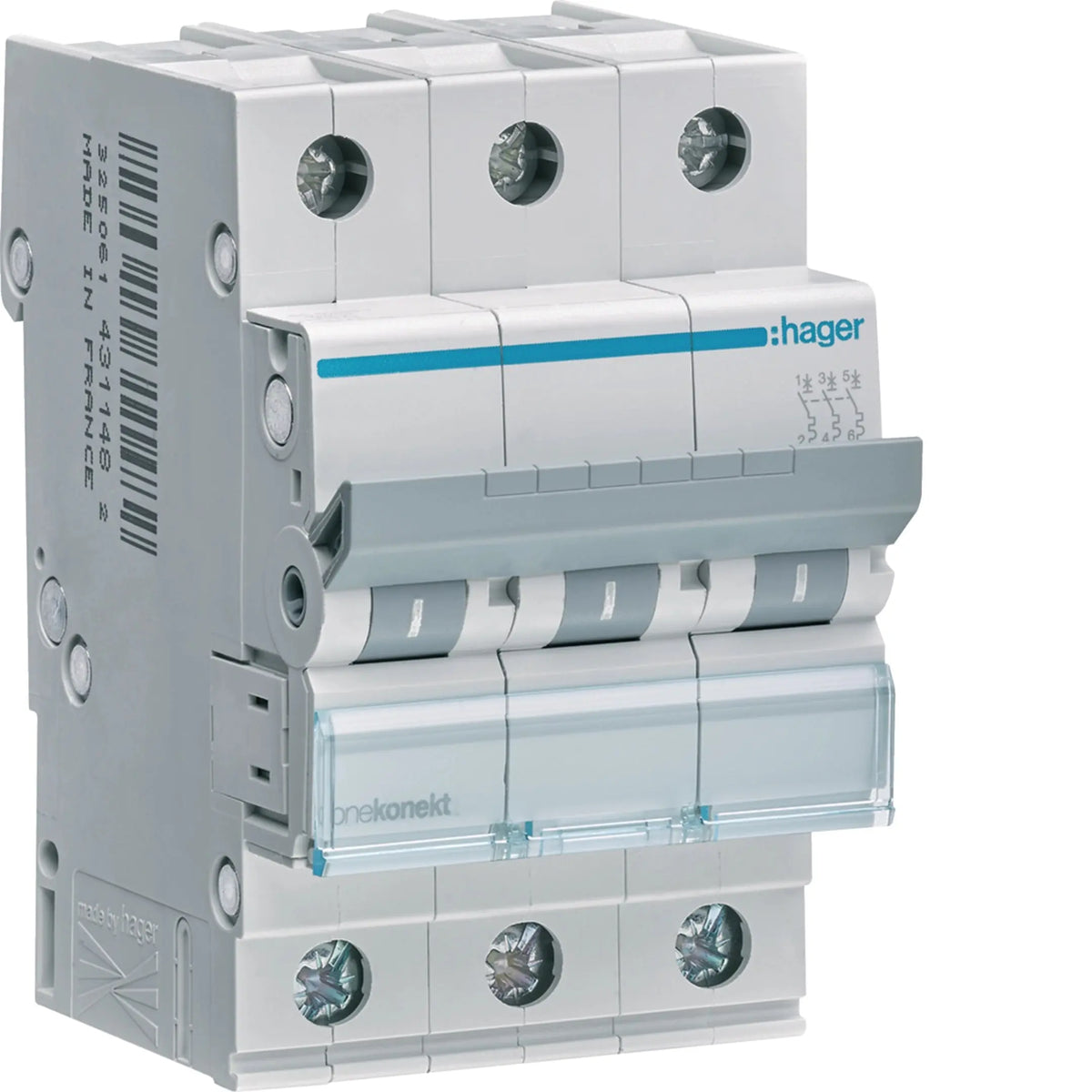

Hager MCN363 3-Pole 63A MCB Type C 6kA

Hager MCN363 3-Pole 63A MCB Type C 6kA

The Hager MCN363 is a 3-pole 63A Type C MCB with 6kA breaking capacity for high-current three-phase sub-main and incoming circuit protection in UAE commercial and industrial distribution boards.

Key Features

• 3-pole 63A high-current MCB with 6kA breaking capacity
• Three-phase sub-main and incoming protection
• DIN rail mounting
• Genuine Hager MCN quality

Technical Specifications

Applications

• Three-phase sub-main and incoming circuit protection
• Commercial and industrial distribution boards
• Large HVAC and building services circuit protection
• Panel incoming and sub-main MCB

FAQ

• What does "Type C" mean on this MCB?
  Type C describes the tripping curve — it allows a higher inrush current (roughly 5–10 times the rated current) before tripping on short-circuit, which suits motors, transformers, and other inductive loads that draw a brief high current at switch-on without nuisance tripping.
• What does the 6kA rating mean?
  6kA is the breaking capacity — the maximum fault current this MCB can safely interrupt without damage. It should be equal to or higher than the prospective fault current at its installation point in the board.
• How many poles do I need?
  This is a 3-pole, 63A unit. Use 3 or 4 poles for a three-phase circuit, with 4-pole also switching neutral.
• Can I install this myself?
  No — MCBs are installed inside a distribution board on live busbars and must be fitted by a licensed electrician.
• Will this fit my existing Hager distribution board?
  Genuine Hager MCBs clip directly onto standard 35mm DIN rail and are designed to work across the Hager DB range — check your board's existing MCB range/series if you need an exact match.
