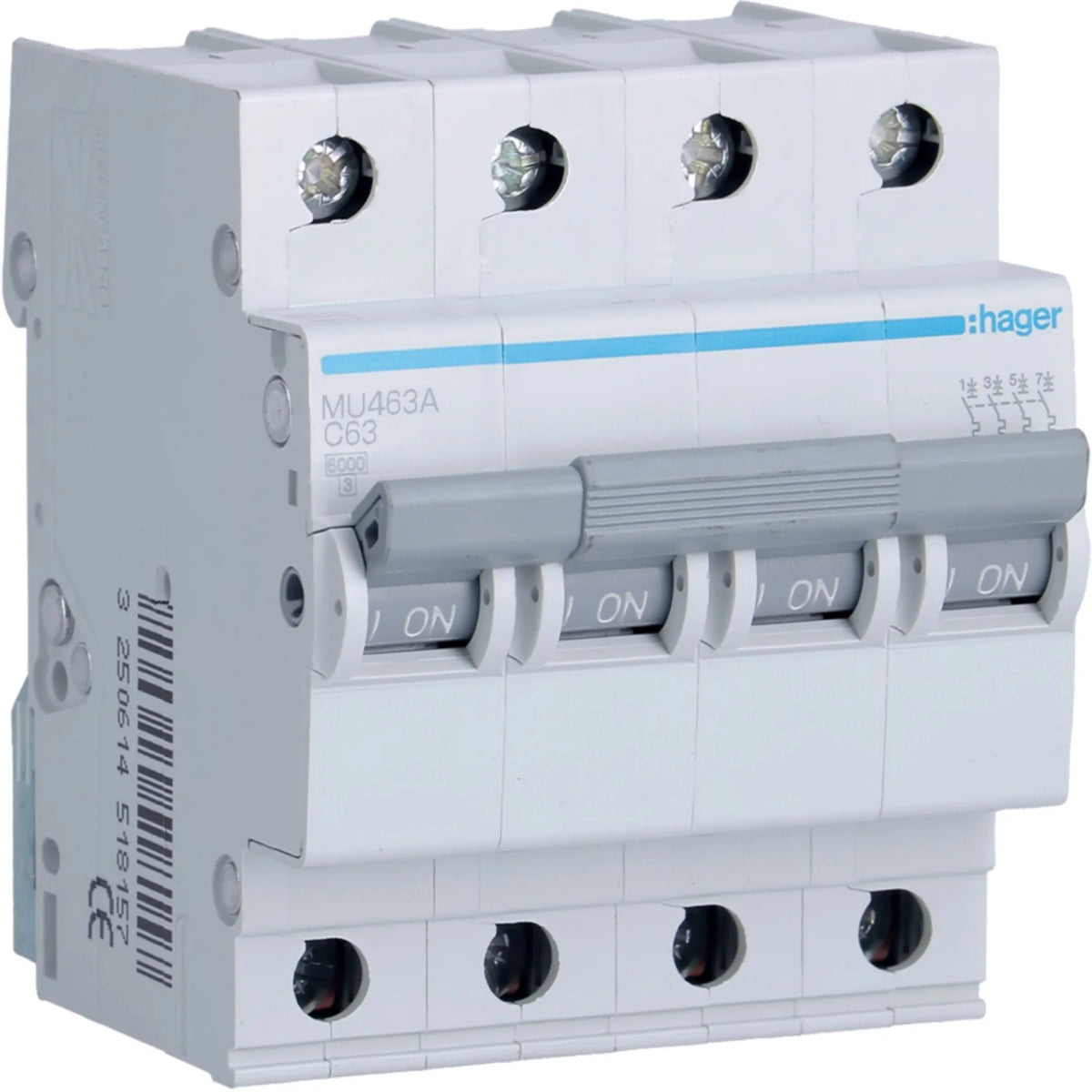

Hager MU463A 4-Pole 63A MCB Type C 6kA
The Hager MU463A is a 4-pole 63A Type C MCB with 6kA breaking capacity for three-phase + neutral high-current incoming and sub-main circuit protection in UAE commercial and industrial distribution boards.
Key Features
- 4-pole 63A MCB for three-phase + neutral circuit protection
- Type C, 6kA breaking capacity
- DIN rail mounting
- Genuine Hager MU quality
Technical Specifications
| Specification |
Details |
| Brand |
Hager |
| Model |
MU463A |
| Rated Current |
63A |
| Poles |
4 |
| Tripping Characteristic |
Type C |
| Breaking Capacity |
6kA |
| Voltage |
415V AC |
| Mounting |
DIN Rail |
Applications
- Four-pole three-phase + neutral incoming circuit protection
- Commercial and industrial DB sub-main MCB
- HVAC and building services distribution
- Panel incoming and sub-main four-pole protection
FAQ
-
What does "Type C" mean on this MCB?
Type C describes the tripping curve — it allows a higher inrush current (roughly 5–10 times the rated current) before tripping on short-circuit, which suits motors, transformers, and other inductive loads that draw a brief high current at switch-on without nuisance tripping.
-
What does the 6kA rating mean?
6kA is the breaking capacity — the maximum fault current this MCB can safely interrupt without damage. It should be equal to or higher than the prospective fault current at its installation point in the board.
-
How many poles do I need?
This is a 4-pole, 63A unit. Use 3 or 4 poles for a three-phase circuit, with 4-pole also switching neutral.
-
Can I install this myself?
No — MCBs are installed inside a distribution board on live busbars and must be fitted by a licensed electrician.
-
Will this fit my existing Hager distribution board?
Genuine Hager MCBs clip directly onto standard 35mm DIN rail and are designed to work across the Hager DB range — check your board's existing MCB range/series if you need an exact match.
