Hager 3-Pole 25A MCB Type C 6kA MU325A Hager

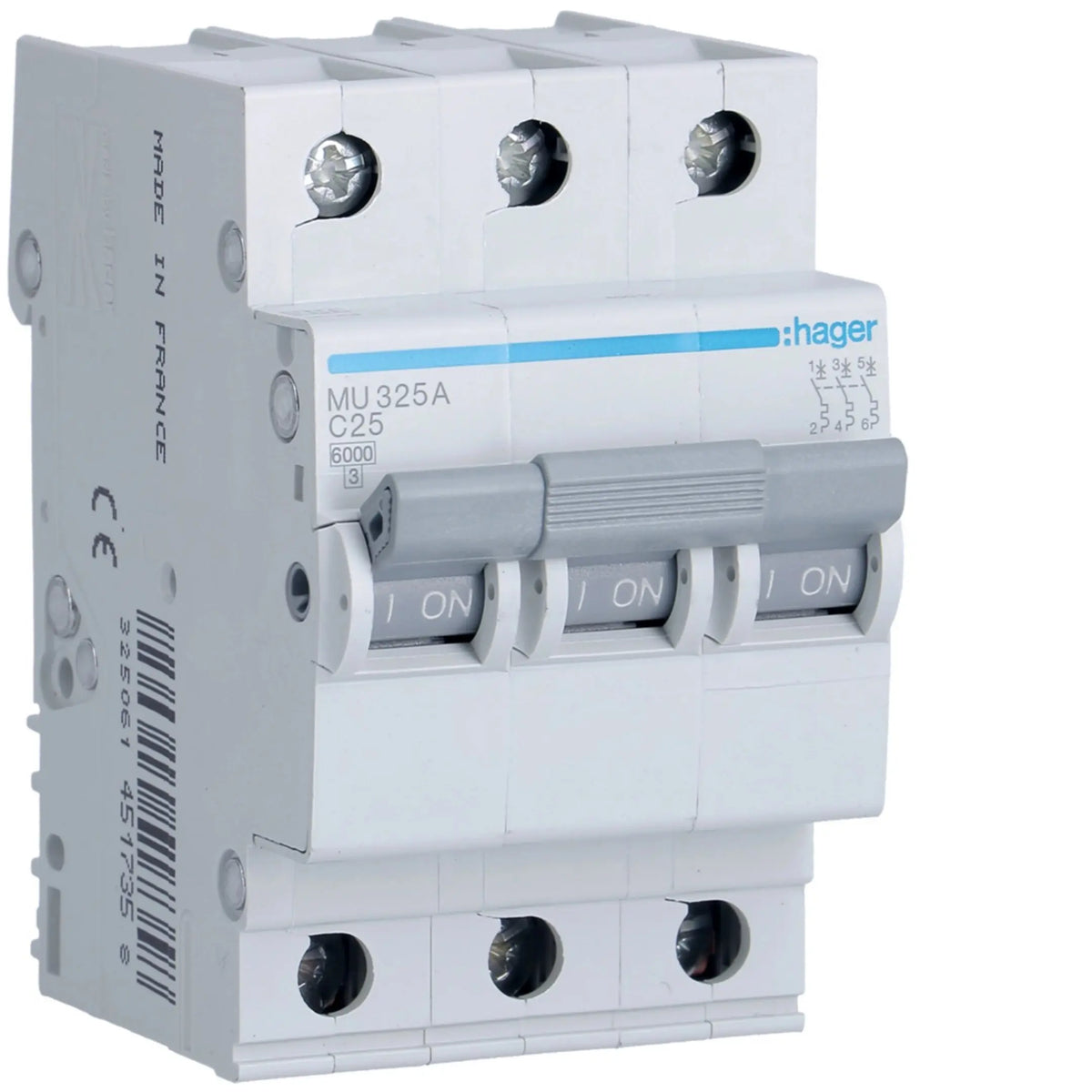

Hager MU325A 3-pole 25A Type C 6kA MCB — official Hager product photo

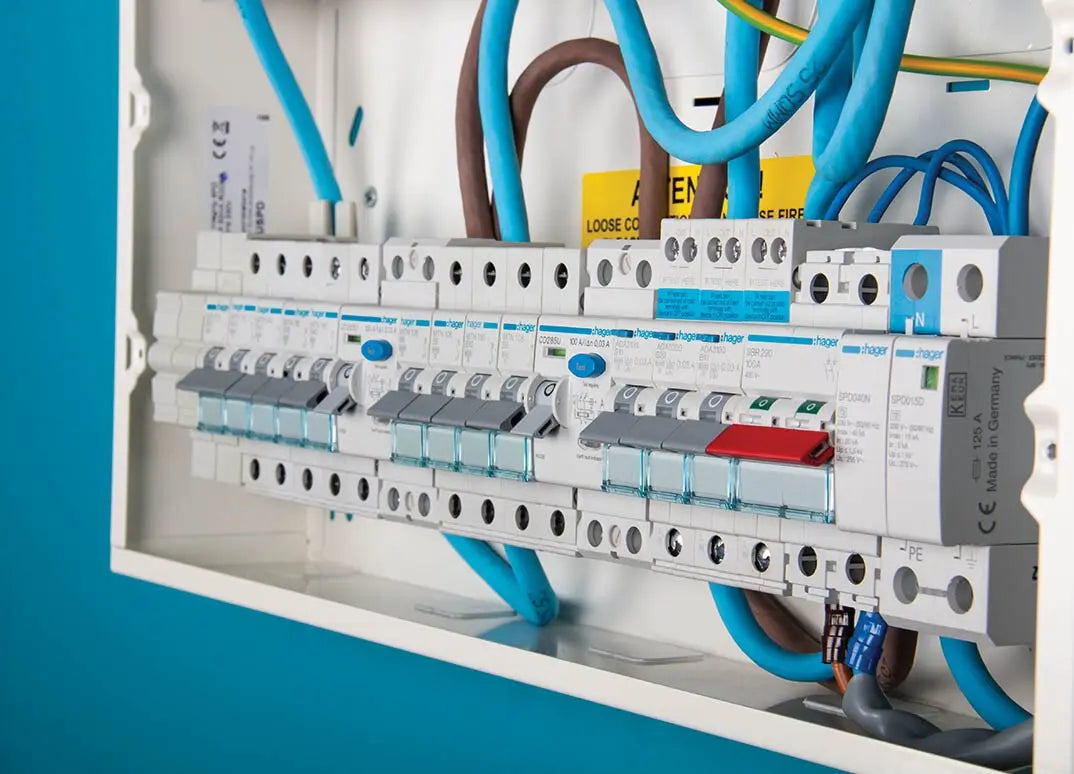

Hager MCBs installed in a distribution board — genuine Hager installation photography (representative application)
Hager 3-Pole 25A MCB Type C 6kA MU325A Hager
Hager MU325A 3-pole 25A Type C 6kA MCB — official Hager product photo
Hager MCBs installed in a distribution board — genuine Hager installation photography (representative application)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Hager

Hager 3-Pole 25A MCB Type C 6kA MU325A

(0)
AED 85.00 inc. VAT
In stock
Usually ships within 24 hours
Fast UAE delivery & easy returns

Order before 12 PM for same-day dispatch. Delivered in 1–2 business days across the UAE, free on orders over AED 200 (AED 15 below). Unused items in sealed packaging can be returned within 7 days.

Free UAE delivery over AED 200
100% secure payments
Genuine branded products

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

Hager MU325A 3-Pole 25A MCB Type C 6kA

The Hager MU325A is a 3-pole 25A Type C MCB with 6kA breaking capacity for three-phase circuit protection in UAE commercial and industrial distribution boards.

Key Features

  • 3-pole 25A Type C MCB, 6kA
  • Three-phase motor and power circuit protection
  • DIN rail mounting
  • Genuine Hager MU quality

Technical Specifications

Specification Details
Brand Hager
Model MU325A
Rated Current 25A
Poles 3
Tripping Characteristic Type C
Breaking Capacity 6kA
Voltage 400V AC
Mounting DIN Rail

Applications

  • Three-phase motor feeder and power circuit protection
  • Commercial and industrial distribution boards
  • HVAC and building services three-phase circuits
  • General three-phase MCB protection

FAQ

  • What does "Type C" mean on this MCB?
    Type C describes the tripping curve — it allows a higher inrush current (roughly 5–10 times the rated current) before tripping on short-circuit, which suits motors, transformers, and other inductive loads that draw a brief high current at switch-on without nuisance tripping.
  • What does the 6kA rating mean?
    6kA is the breaking capacity — the maximum fault current this MCB can safely interrupt without damage. It should be equal to or higher than the prospective fault current at its installation point in the board.
  • How many poles do I need?
    This is a 3-pole, 25A unit. Use 3 or 4 poles for a three-phase circuit, with 4-pole also switching neutral.
  • Can I install this myself?
    No — MCBs are installed inside a distribution board on live busbars and must be fitted by a licensed electrician.
  • Will this fit my existing Hager distribution board?
    Genuine Hager MCBs clip directly onto standard 35mm DIN rail and are designed to work across the Hager DB range — check your board's existing MCB range/series if you need an exact match.
