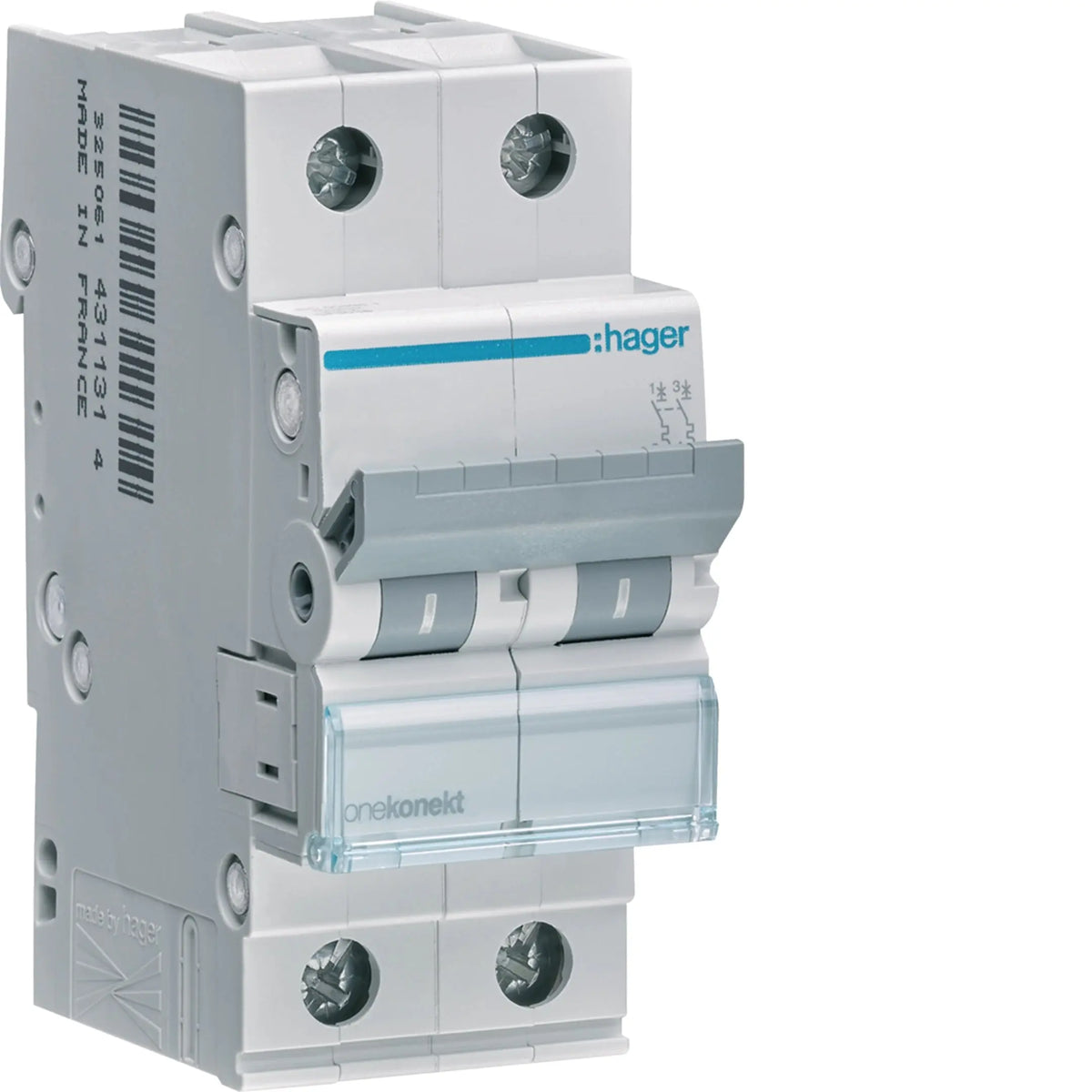

Hager MCN232 2-pole 32A Type C 6kA MCB — official Hager product photo

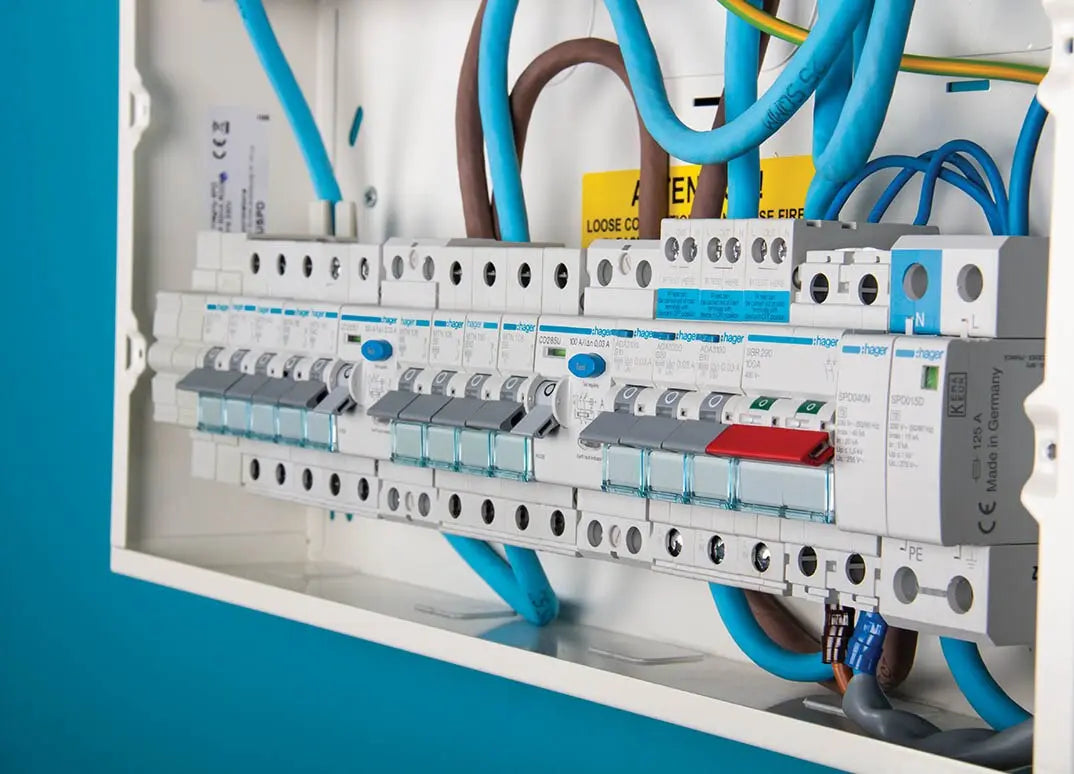

Hager MCBs installed in a distribution board — genuine Hager installation photography (representative application)
Hager MCN232 2-Pole 32A MCB Type C 6kA Hager
Hager MCN232 2-pole 32A Type C 6kA MCB — official Hager product photo
Hager MCBs installed in a distribution board — genuine Hager installation photography (representative application)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Hager

Hager MCN232 2-Pole 32A MCB Type C 6kA

SKU: MCN232
(0)
AED 60.00 inc. VAT
In stock
Usually ships within 24 hours
Ready to work out of the box!

All items are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

Hager MCN232 2-Pole 32A MCB Type C 6kA

The Hager MCN232 is a 2-pole 32A Type C MCB with 6kA breaking capacity for high-current double-pole circuit protection in UAE residential and commercial distribution boards.

Key Features

  • 2-pole 32A Type C MCB, 6kA
  • High-current double-pole protection
  • DIN rail mounting
  • Genuine Hager MCN quality

Technical Specifications

Specification Details
Brand Hager
Model MCN232
Rated Current 32A
Poles 2
Tripping Characteristic Type C
Breaking Capacity 6kA
Voltage 230/400V AC
Mounting DIN Rail

Applications

  • High-current double-pole circuit protection
  • Cooker and appliance circuit protection
  • Commercial DB sub-main MCB protection
  • General high-current circuit protection

FAQ

  • What does "Type C" mean on this MCB?
    Type C describes the tripping curve — it allows a higher inrush current (roughly 5–10 times the rated current) before tripping on short-circuit, which suits motors, transformers, and other inductive loads that draw a brief high current at switch-on without nuisance tripping.
  • What does the 6kA rating mean?
    6kA is the breaking capacity — the maximum fault current this MCB can safely interrupt without damage. It should be equal to or higher than the prospective fault current at its installation point in the board.
  • How many poles do I need?
    This is a 2-pole, 32A unit. Use 2-pole to switch both live and neutral on a single-phase circuit.
  • Can I install this myself?
    No — MCBs are installed inside a distribution board on live busbars and must be fitted by a licensed electrician.
  • Will this fit my existing Hager distribution board?
    Genuine Hager MCBs clip directly onto standard 35mm DIN rail and are designed to work across the Hager DB range — check your board's existing MCB range/series if you need an exact match.
