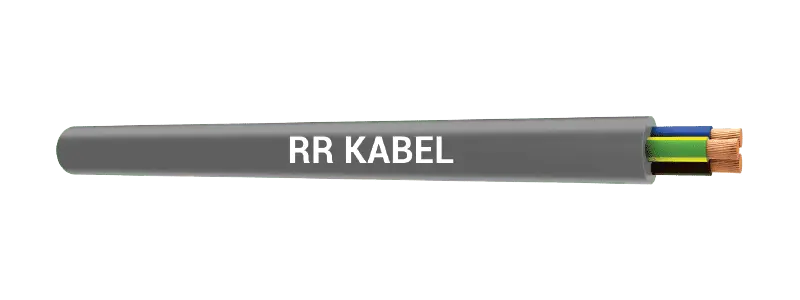

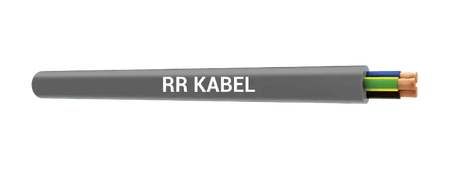

RR PVC Flexible Cable 2.5mm² 3-Core
The RR PVC Flexible Cable 2.5mm² 3-Core is a heavy-duty flexible cable for high-current portable equipment, power tools, and appliance connections requiring an earth conductor. Its 2.5mm² conductor is rated up to 25A, making it the right choice for UAE contractors and FM teams connecting industrial equipment, site tools, and high-load appliances. Sold per metre.
Key Features
- 2.5mm² fine-stranded 3-core with protective earth conductor
- Rated up to 25A for heavy portable equipment
- Available in Black and White
- PVC insulation and sheath for durable performance
- Sold per metre for flexible project ordering
Technical Specifications
| Specification |
Details |
| Brand |
RR Cables |
| Cores |
3 |
| Conductor Cross-Section |
2.5mm² |
| Conductor |
Bare copper, fine-wire flexible stranding (Class 5, EN 60228) |
| Insulation |
PVC |
| Sheath |
PVC |
| Voltage Rating |
300/500V |
| Standard |
BS 6500 / equivalent BS EN 50525-2-11 (H05VV-F) |
| Operating Temperature |
-5°C to +70°C (flexing); up to +70°C fixed |
| Available Colours |
Black, White |
| Unit |
Per Metre |
Applications
- Heavy portable power tools and equipment leads
- Site and industrial equipment flexible connections
- High-load appliance connection cables
- Commercial kitchen and HVAC equipment leads
FAQ
-
What does the 2.5mm² cross-section rating mean, and is it right for my load?
2.5mm² is the copper conductor's cross-sectional area, giving this cable a current capacity up to around 25A — suited to heavy power tools, site equipment, and high-load appliances. For lighter loads, 1.5mm² is usually sufficient; for larger three-phase machinery, larger cross-sections or more cores may be needed. Confirm with the equipment's rated current or ask an electrician.
-
Can I order an exact length, and how is the price calculated?
Yes — sold per metre at a fixed per-metre rate, so you order and pay for exactly the length you need. No roll minimum, and full coils are available for bulk project orders.
-
Is there any difference between the Black and White versions besides colour?
No — both are the same 2.5mm² 3-core PVC flexible cable to the same specification. Colour is chosen for identification purposes (e.g. matching site colour-coding or equipment casing).
-
What's the difference between this and RR Kabel's single-core Building Wire?
Building Wire is a solid single conductor for fixed installation in conduit or trunking. This 3-core PVC Flexible Cable is fine-stranded for genuine flexibility and includes its own earth core, designed for connecting portable or moveable equipment rather than permanent circuits.
-
Does this need to be installed by an electrician?
Connections into fixed circuits, distribution boards, or permanent equipment should be made by a licensed electrician per UAE wiring regulations, particularly at this current rating. This is a trade/contractor-supply product, not intended for DIY household wiring.
