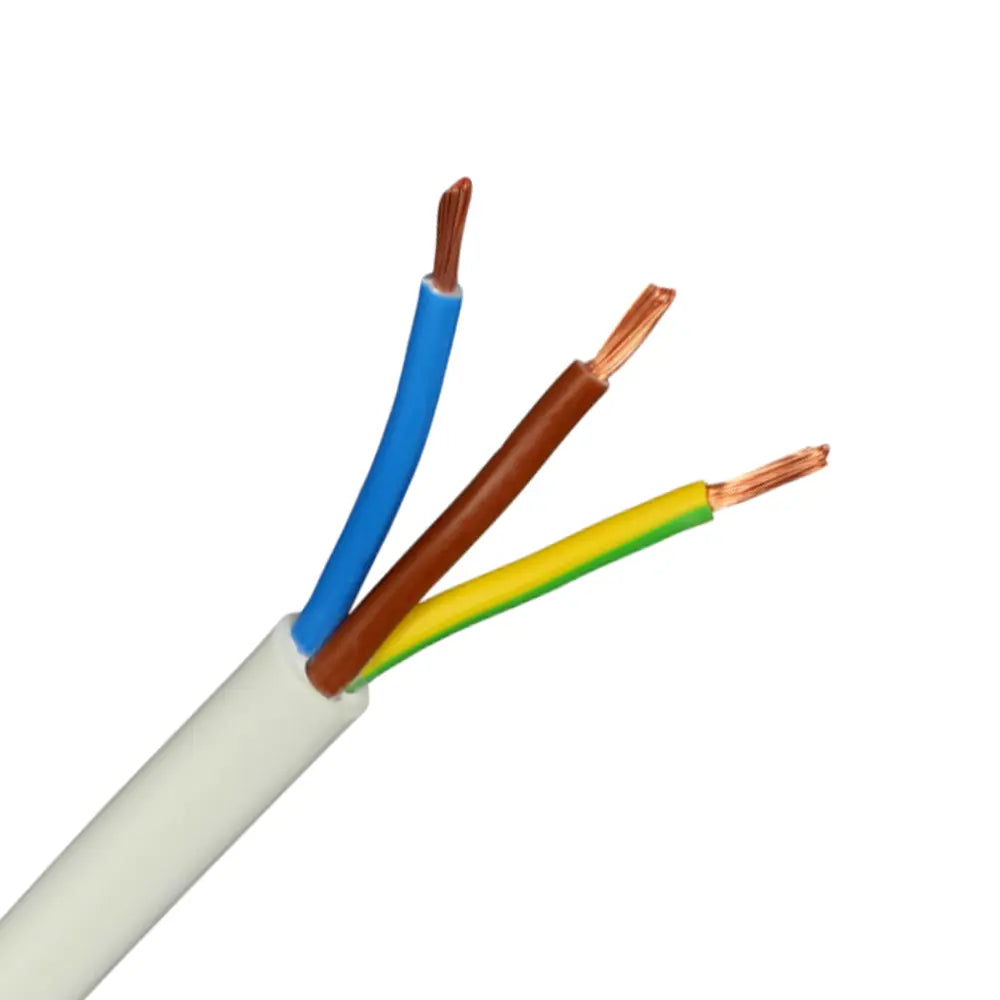

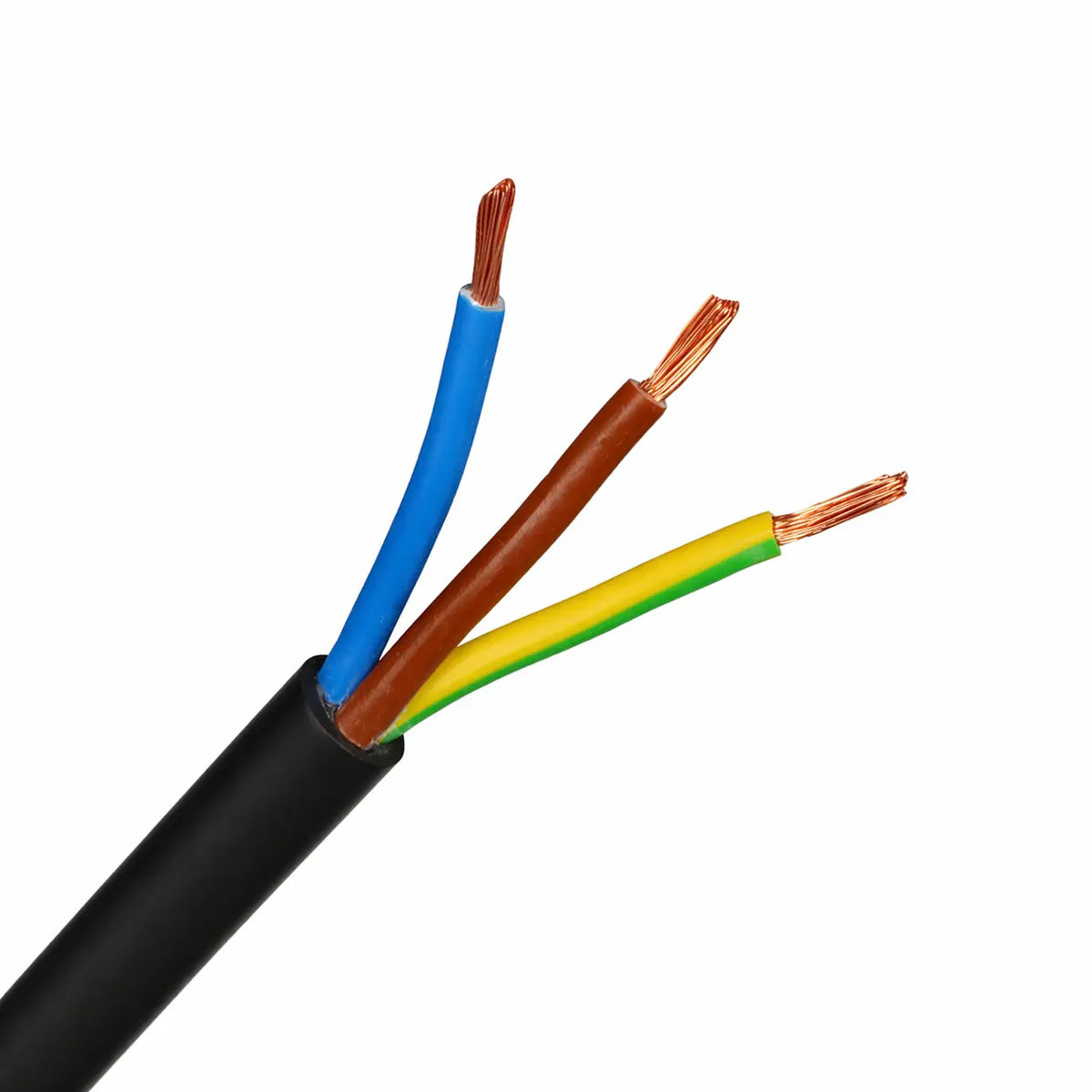

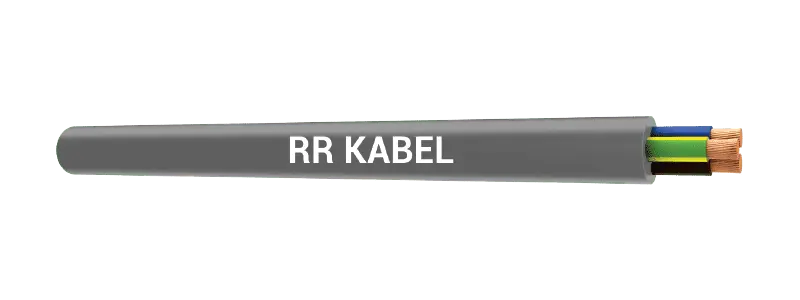

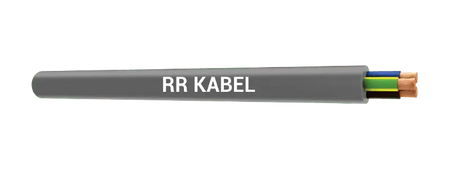

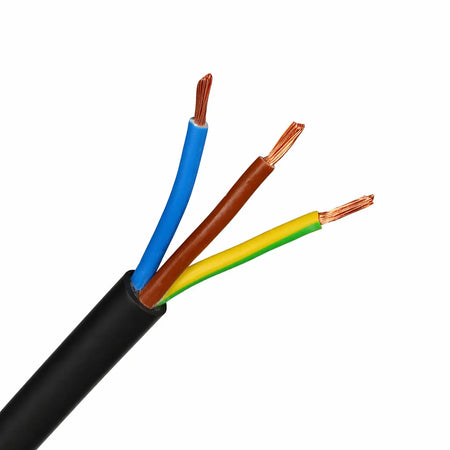

RR PVC Flexible Cable 1.5mm² 3-Core
The RR PVC Flexible Cable 1.5mm² 3-Core is the most commonly used flexible cable for earthed portable appliances, power tools, and general-purpose equipment leads in UAE homes, offices, and commercial properties. Available in Black and White, it provides the flexibility and current capacity needed for reliable everyday connections. Sold per metre.
Key Features
- 1.5mm² fine-stranded 3-core with protective earth conductor
- Available in Black and White for easy identification
- Handles up to 16A for a wide range of appliances
- PVC insulation and sheath for durable everyday performance
- Sold per metre — no roll minimum required
Technical Specifications
| Specification |
Details |
| Brand |
RR Cables |
| Cores |
3 |
| Conductor Cross-Section |
1.5mm² |
| Conductor |
Bare copper, fine-wire flexible stranding (Class 5, EN 60228) |
| Insulation |
PVC |
| Sheath |
PVC |
| Voltage Rating |
300/500V |
| Standard |
BS 6500 / equivalent BS EN 50525-2-11 (H05VV-F) |
| Operating Temperature |
-5°C to +70°C (flexing); up to +70°C fixed |
| Available Colours |
Black, White |
| Unit |
Per Metre |
Applications
- Portable appliances and power tool leads
- Domestic and commercial equipment with protective earth
- Extension lead construction and repair
- General-purpose three-wire flexible connections
FAQ
-
What does the 1.5mm² cross-section rating mean, and is it right for my load?
1.5mm² is the copper conductor's cross-sectional area, giving this cable a safe current capacity of up to around 16A — suitable for most earthed portable appliances and power tools. For heavier industrial loads, step up to 2.5mm² 3-core. Check the appliance's rated current or ask an electrician if unsure.
-
Can I order an exact length, and how is the price calculated?
Yes — sold per metre at a fixed per-metre rate, so you pay only for the length required. No roll minimum, and full coils are available for larger orders.
-
Is there any difference between the Black and White versions besides colour?
No — both are the same 1.5mm² 3-core PVC flexible cable built to the same specification. The colour is purely for identification or aesthetic matching (e.g. site colour-coding or matching appliance casing), so choose whichever suits your installation.
-
What's the difference between this and RR Kabel's single-core Building Wire?
Building Wire is a solid single conductor for fixed installation in conduit. This 3-core PVC Flexible Cable is fine-stranded for real flexibility and includes its own earth core, built for connecting portable or moveable equipment rather than permanent building circuits.
-
Does this need to be installed by an electrician?
Connections into fixed circuits, sockets, or permanent equipment should be made by a licensed electrician per UAE wiring regulations. This is a trade/contractor-supply product, not intended for DIY household wiring.
