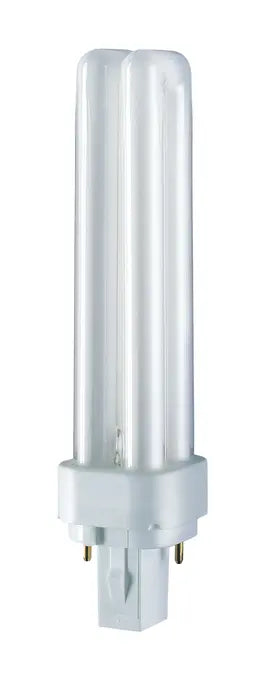

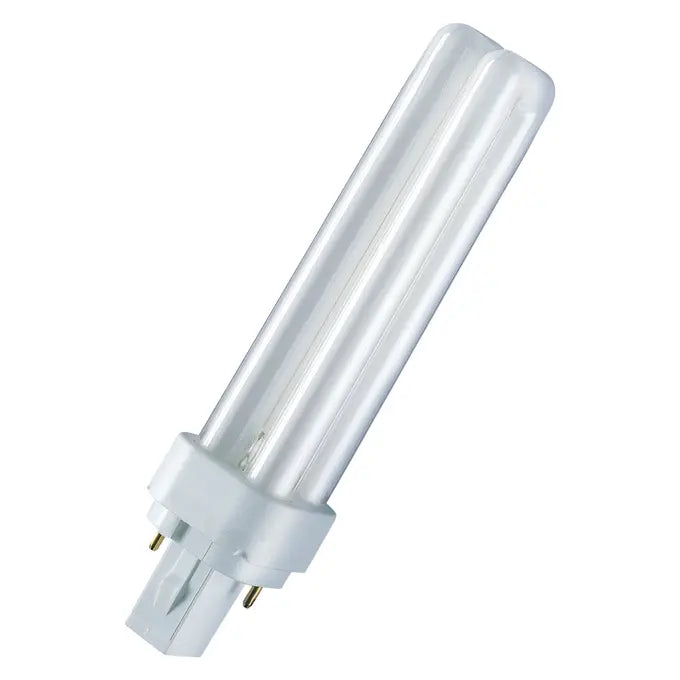

Osram Dulux-D 13W 2-Pin G24d-1 CFL Lamp

An Osram Dulux D compact fluorescent lamp, 13W, G24d-1 base, 2-pin — a pull-and-replace PL lamp for downlights and wall fittings running on conventional magnetic control gear.

Will this fit my fixture?

Replacing an identical existing 13W G24d-1 2-pin Dulux D lamp is straightforward once power is off — pull the old lamp out and push the new one in. This lamp needs magnetic control gear (CCG), not electronic; confirm your fitting's gear type before ordering, and use an electrician for new installations.

Key Features

• G24d-1 2-pin base for magnetic control gear
• Compact PL form factor for downlights and wall packs
• Available in 830 Warm White, 840 Cool White, and 865 Daylight

Technical Specifications

FAQ

• Will this fit my fixture?
  If your existing lamp is a G24d-1 2-pin Dulux D at 13W on magnetic gear, this is a direct swap.
• How is this different from the Dulux D/E 13W?
  The D/E version has a 4-pin G24q-1 base and runs on electronic control gear; this 2-pin D version runs on magnetic gear only. The two bases aren't interchangeable.
• Does this need a starter?
  Yes, on magnetic ballast fittings a compatible starter is required.
• Which colour temperature should I choose?
  830 (Warm White) suits homes and hospitality; 840 (Cool White) suits offices; 865 (Daylight) suits workshops and task areas wanting the brightest, whitest light.
