Hager SBN464N Onekonekt Isolator 63A 4-Pole — Main Switch Made in France

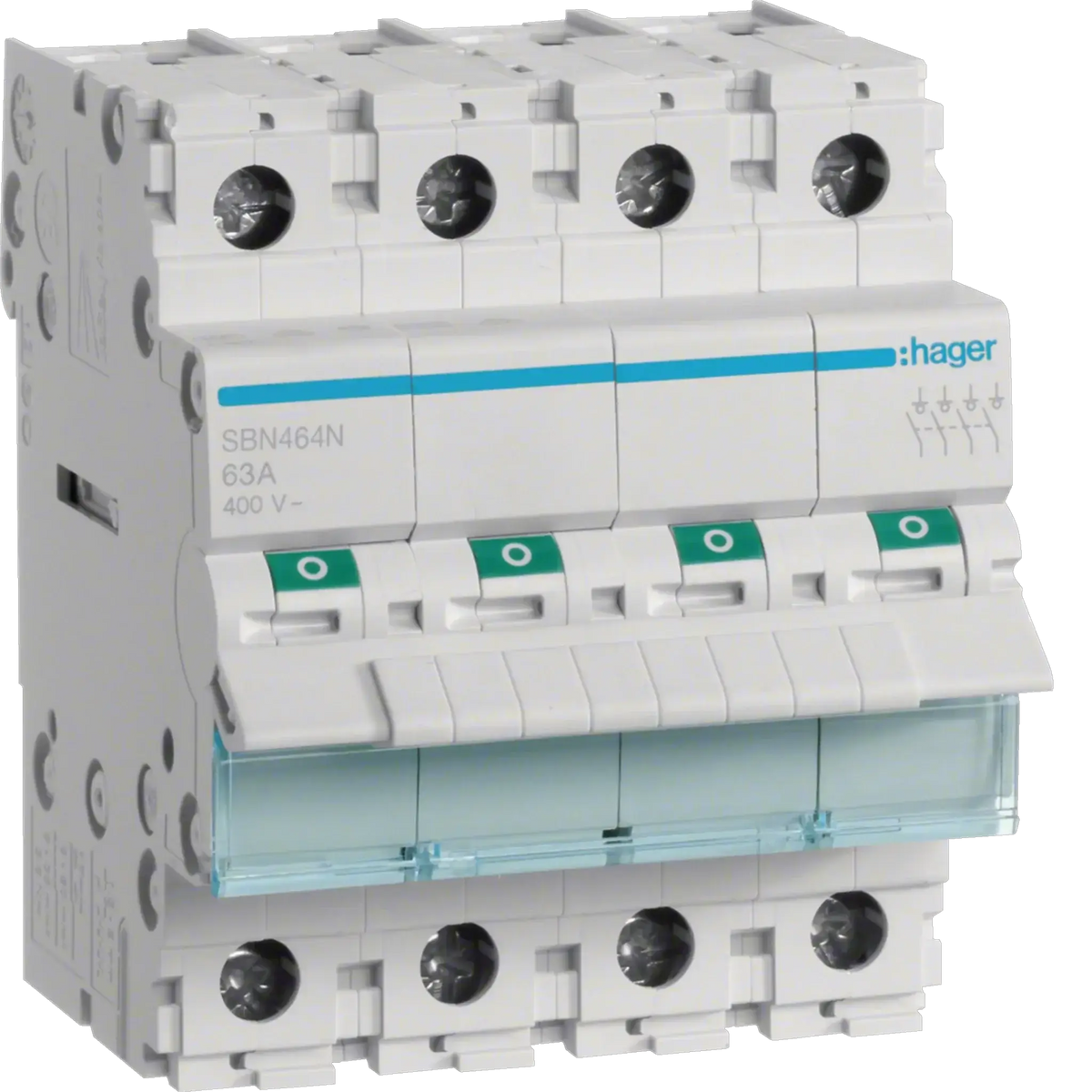

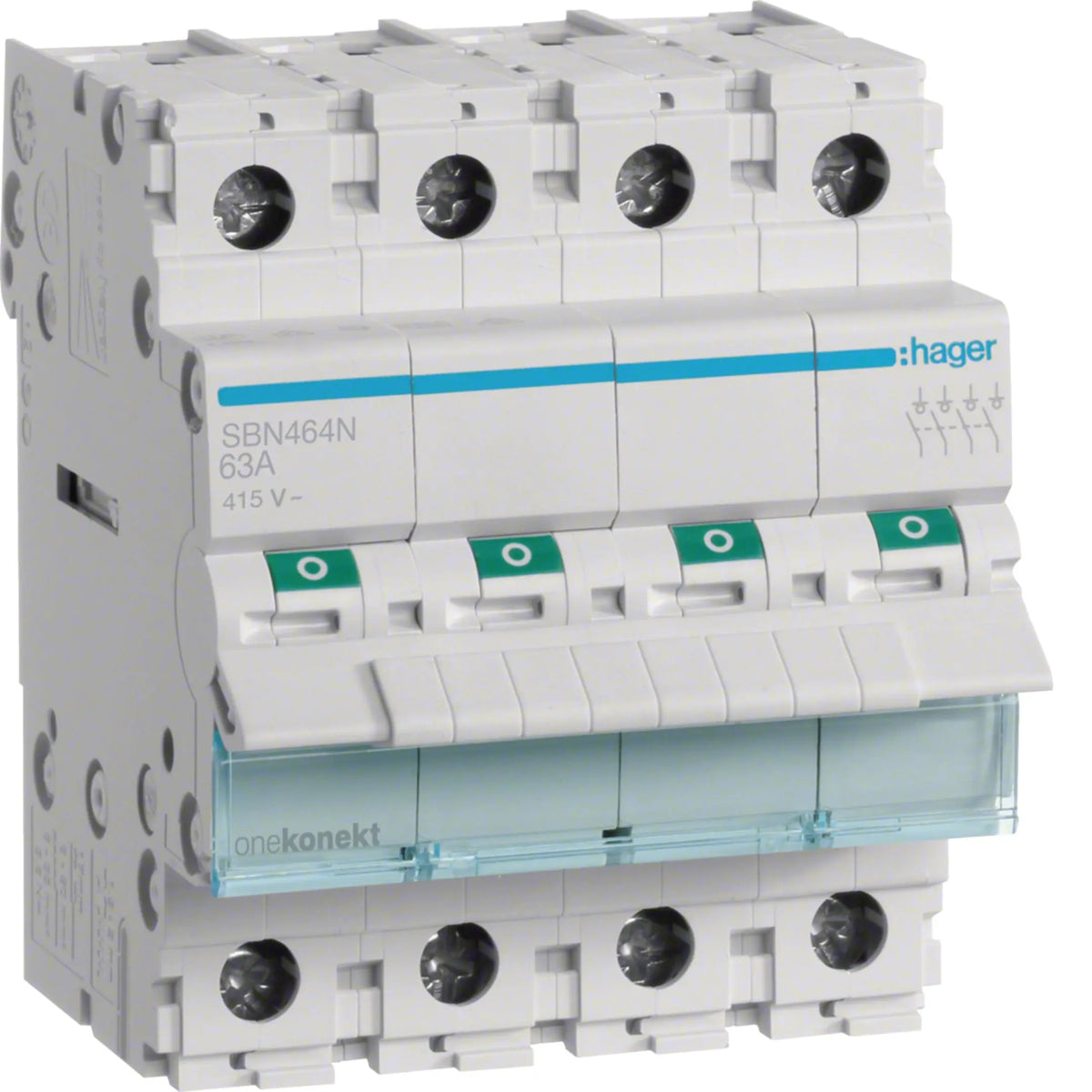

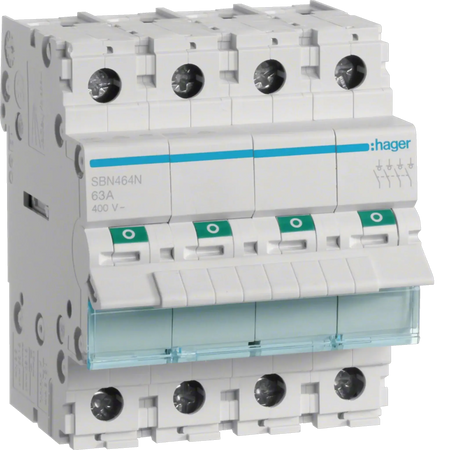

Hager Onekonekt Isolator 63A 4P – SBN464N

The Hager SBN464N is a 63A, 4-pole isolator (switch-disconnector) from Hager's Onekonekt range, used as a main switch or local isolation point ahead of MCBs, RCCBs, and RCBOs in a distribution board. Onekonekt is Hager's captive/tunnel terminal busbar connection system — devices clip securely onto a shared comb busbar without loose screw-terminal bus wiring, speeding up panel assembly and keeping bus connections tidy and secure. The SBN464N provides safe, manual off-load disconnection for maintenance, testing, or emergency shutdown across residential, commercial, and industrial installations, and is Made in France to Hager's standard build quality for UAE projects.

Key Features

• 63 A rated current, 4-pole (4P) switch-disconnector for three-phase supplies (with or without switched neutral, depending on wiring configuration)
• Onekonekt captive/tunnel terminal design for tool-free, secure busbar connection alongside other Onekonekt devices
• Provides complete off-load circuit isolation for maintenance and emergency disconnection
• Robust, compact 4-module DIN rail enclosure for easy panel integration
• Complies with IEC 60947-3, the standard governing low-voltage switch-disconnectors
• IP20 protection, suitable for enclosed distribution board/panel mounting
• Next-day delivery available in the UAE from Deluxe Electricals

Technical Specifications

Applications

• Residential main distribution panels
• Commercial facilities: offices, shops, schools, hospitals
• Industrial power control panels
• Maintenance isolation for 63A three-phase circuits wired on a Onekonekt busbar

FAQ

• What does "Onekonekt" mean on this isolator?
  Onekonekt is Hager's captive/tunnel terminal busbar connection system. Instead of individual screw-terminal bus wiring between devices, Onekonekt devices clip directly onto a shared comb busbar, giving a faster, tidier, and more secure bus connection across the board.
• Is the SBN464N an MCB or an isolator?
  It's an isolator (switch-disconnector), not an MCB. It has no overload or short-circuit protection — it provides a manual on/off disconnect only, and should be paired with separate MCBs, RCCBs, or RCBOs for circuit protection.
• What does 4-pole (4P) mean for this isolator?
  4-pole means it switches all four conductors of a three-phase-plus-neutral supply together, giving full off-load isolation of the circuit rather than switching only the phase conductors.
• Can I use this with non-Onekonekt Hager devices in the same board?
  The Onekonekt captive terminal connects to a Onekonekt busbar system; for boards using standard bus wiring, a non-Onekonekt Hager isolator (e.g. the SBN463 range) with screw terminals may be a better match. Check your existing busbar/comb type before mixing ranges.
• Can I install this myself?
  No. This is trade-only distribution board equipment and must be installed and connected by a licensed electrician in accordance with local wiring regulations.
