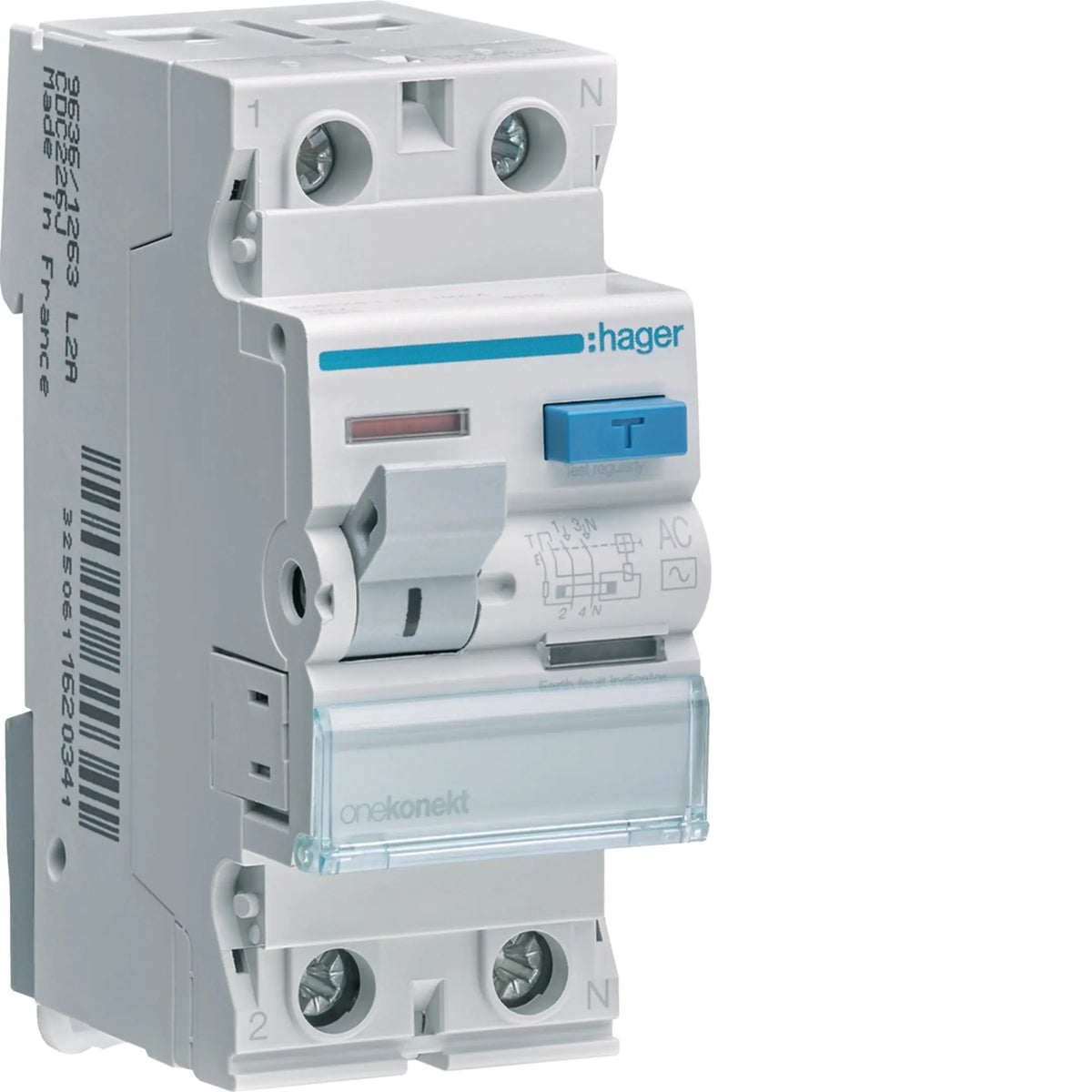

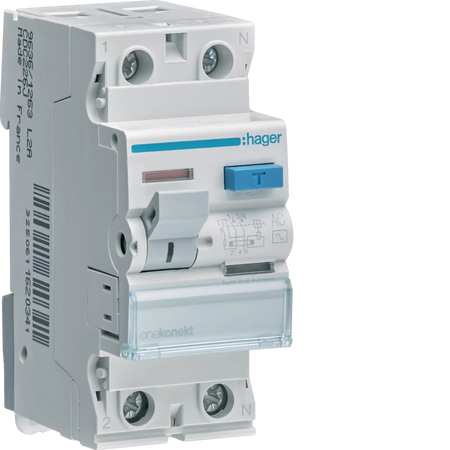

Hager CEC226J Onekonekt RCCB 25A 2-Pole 100mA Type AC — ELCB

Hager Onekonekt RCCB (ELCB) 25A 2P 100mA – CEC226J

Product Overview

The Hager CEC226J RCCB provides reliable earth-leakage protection with a 25A rating and 100mA sensitivity. It rapidly disconnects circuits on leakage, helping protect people and equipment in residential, commercial, and light industrial UAE installations.

Key Features

• Brand: Hager – Onekonekt Series
• Model: CEC226J
• Rated Current: 25A
• Poles: 2P (Double Pole)
• Sensitivity: 100mA
• Device Type: RCCB / ELCB
• Robust, compact design for easy panel installation
• Fully compliant with IEC safety standards

Technical Specifications

Applications

• Residential homes, villas, and apartments
• Offices, schools, and healthcare facilities
• Commercial buildings and retail outlets
• Light industrial power systems requiring reliable leakage protection

FAQ

• What's the difference between an RCCB and an MCB?
  An RCCB (ELCB) detects earth leakage current and disconnects the circuit to protect against electric shock — it does not protect against overload or short-circuit current. It's normally installed alongside MCBs, which handle overload and short-circuit protection; the two work together, not as substitutes for each other.
• What does the 100mA rating mean, and do I need this sensitivity?
  100mA sensitivity is typically used for fire protection on distribution or fixed-appliance circuits, rather than direct personal shock protection — check your circuit's requirement before ordering. If you're unsure which sensitivity your board needs, an electrician can confirm from the circuit design.
• How many poles do I need?
  This is a 2-pole unit, suited to a single-phase circuit (with neutral switched). Match the pole count to your incoming supply and the circuit(s) you're protecting.
• Can I install this myself?
  No — an RCCB is installed inside a distribution board and connected to live busbars. This must be done by a licensed electrician.
