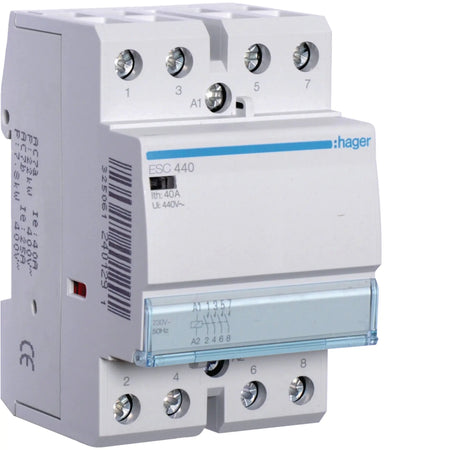

Hager ESC440 40A 4-Pole Installation Contactor 230V AC Hager

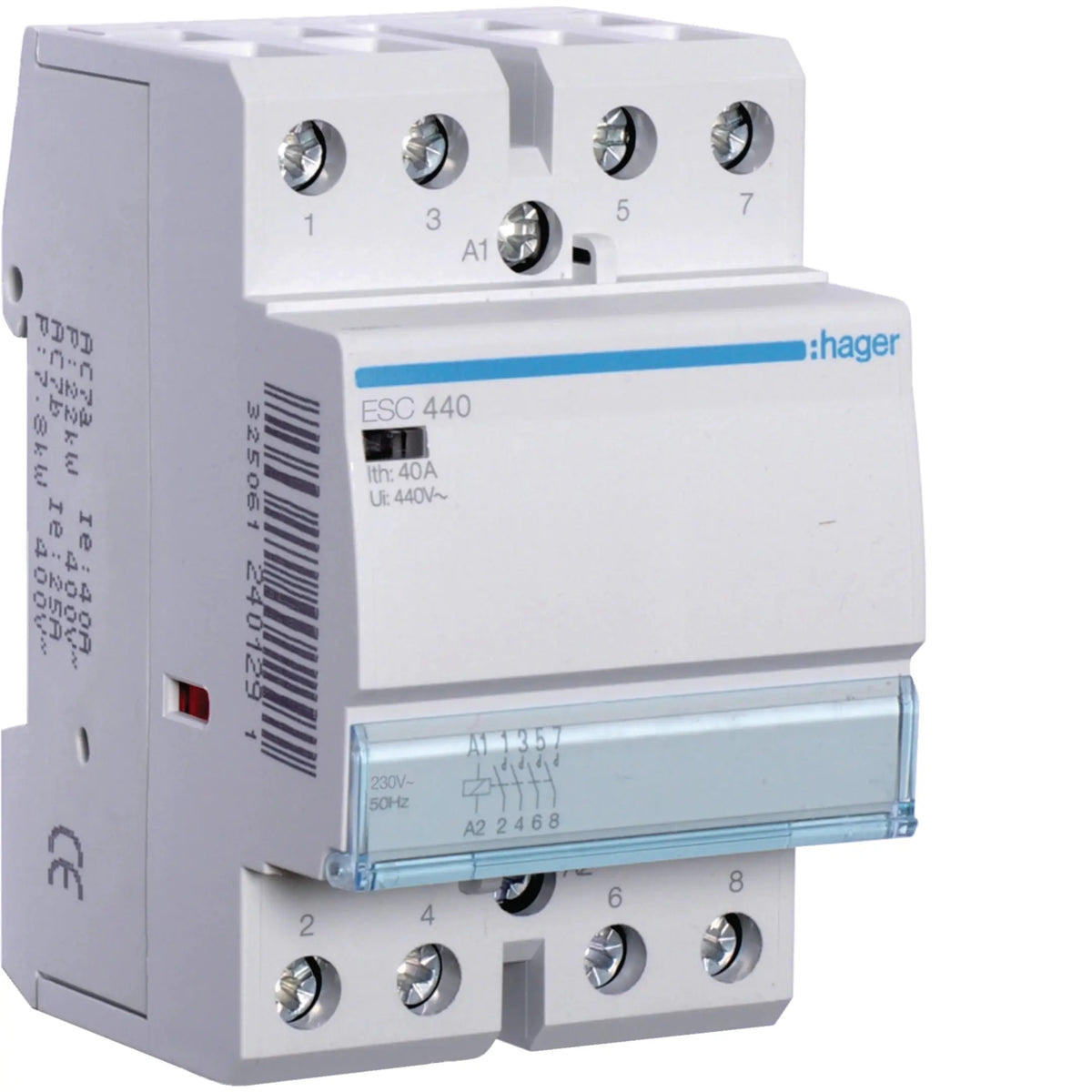

Hager ESC440 40A 4-pole installation contactor 230V AC — official Hager product photo

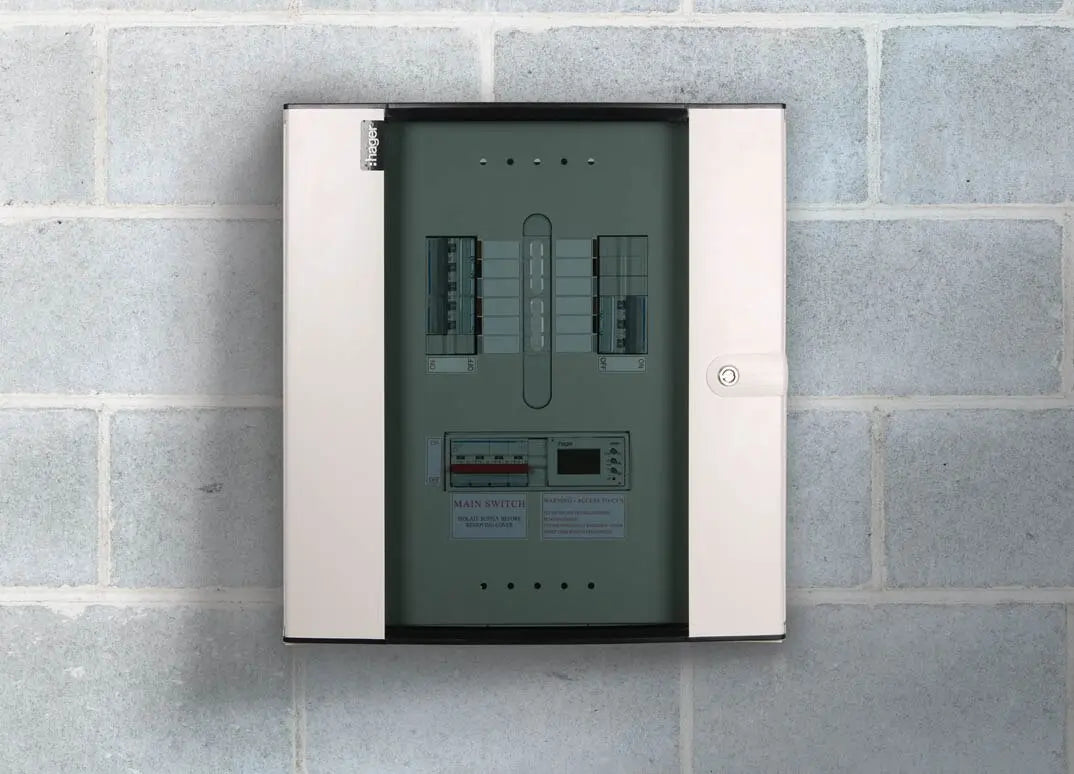

Hager commercial distribution board installation — genuine Hager installation photography (representative application)
Hager ESC440 40A 4-Pole Installation Contactor 230V AC Hager
Hager ESC440 40A 4-pole installation contactor 230V AC — official Hager product photo
Hager commercial distribution board installation — genuine Hager installation photography (representative application)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Hager

Hager ESC440 40A 4-Pole Installation Contactor 230V AC

(0)
AED 135.00 inc. VAT
In stock
Usually ships within 24 hours
Fast UAE delivery & easy returns

Order before 12 PM for same-day dispatch. Delivered in 1–2 business days across the UAE, free on orders over AED 200 (AED 15 below). Unused items in sealed packaging can be returned within 7 days.

Free UAE delivery over AED 200
100% secure payments
Genuine branded products

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

Hager ESC440 40A 4-Pole Installation Contactor 230V AC

The Hager ESC440 is a 40A 4-pole installation contactor with a 230V AC coil for three-phase + neutral load switching in UAE commercial and industrial buildings. Suitable for four-wire lighting, HVAC, and general load management panels.

Key Features

  • 40A 4-pole installation contactor for 3-phase + neutral switching
  • 230V AC 50/60Hz coil
  • DIN rail mounting
  • Genuine Hager quality

Technical Specifications

Specification Details
Brand Hager
Model ESC440
Rated Current 40A
Poles 4
Coil Voltage 230V AC 50/60Hz
Mounting DIN Rail

Applications

  • Four-wire three-phase load switching in commercial DBs
  • Building services and HVAC circuit control
  • Timer and BMS-controlled four-pole switching
  • Commercial and industrial building load management

FAQ

  • What is an installation contactor used for?
    A contactor switches a circuit remotely or automatically in response to a control signal — commonly used for lighting, heating, or HVAC loads controlled by a time switch, sensor, or building management system, rather than a manual switch.
  • How many poles do I need?
    This is a 4-pole, 40A unit. Match the pole count to the circuit being switched — three-phase loads need the corresponding pole count.
  • Can I install this myself?
    No — a contactor is wired into a distribution board alongside its control circuit and must be installed by a licensed electrician.
  • Can this be paired with a time switch?
    Yes — pairing a contactor with a Hager time switch (e.g. the EHN range) is a common way to give a manually-rated circuit automated, scheduled control without exceeding the time switch's own contact rating.
