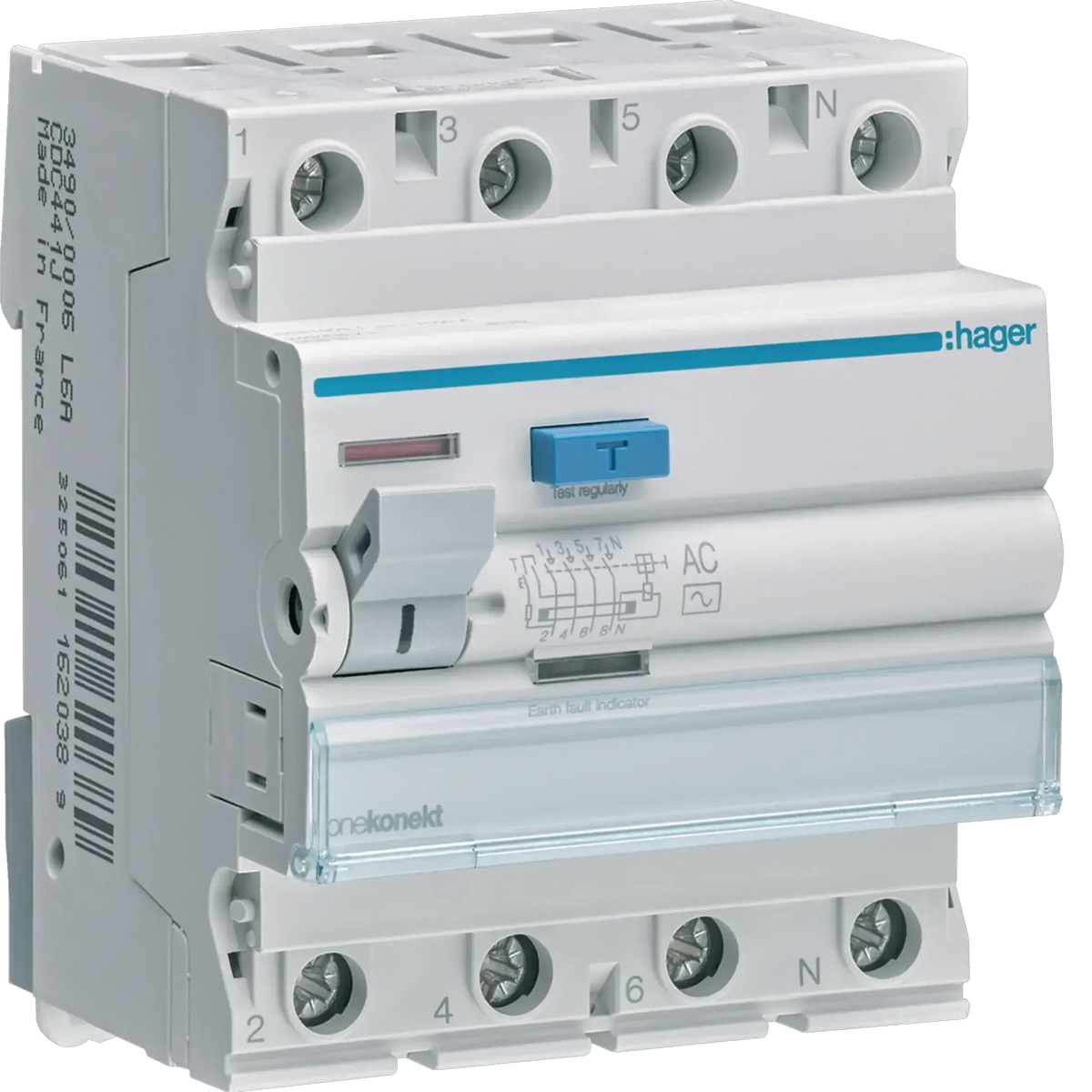

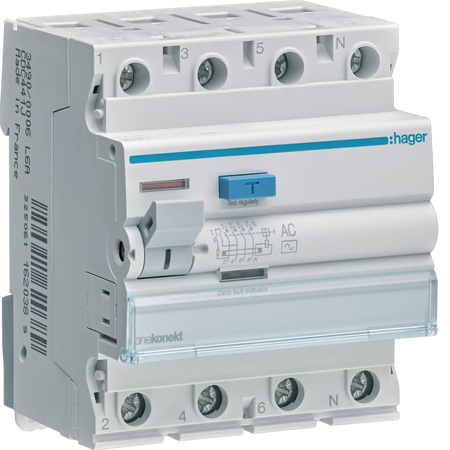

Hager RCCB (ELCB) 63A 4P 300mA, front view with blue test button on a four-pole circuit breaker

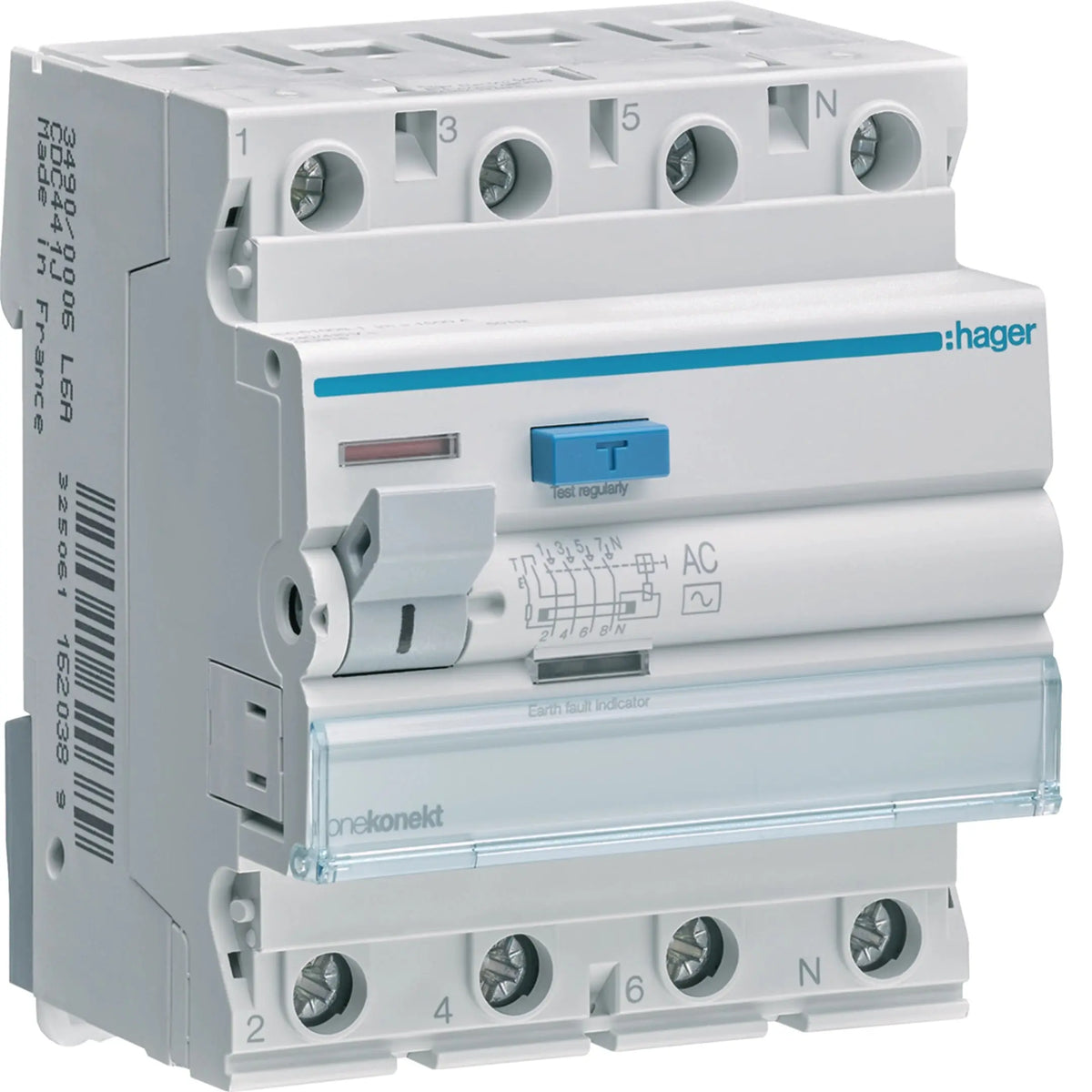

Hager CFC464J 4-pole 63A 300mA Type AC RCCB (ELCB) — official Hager product photo

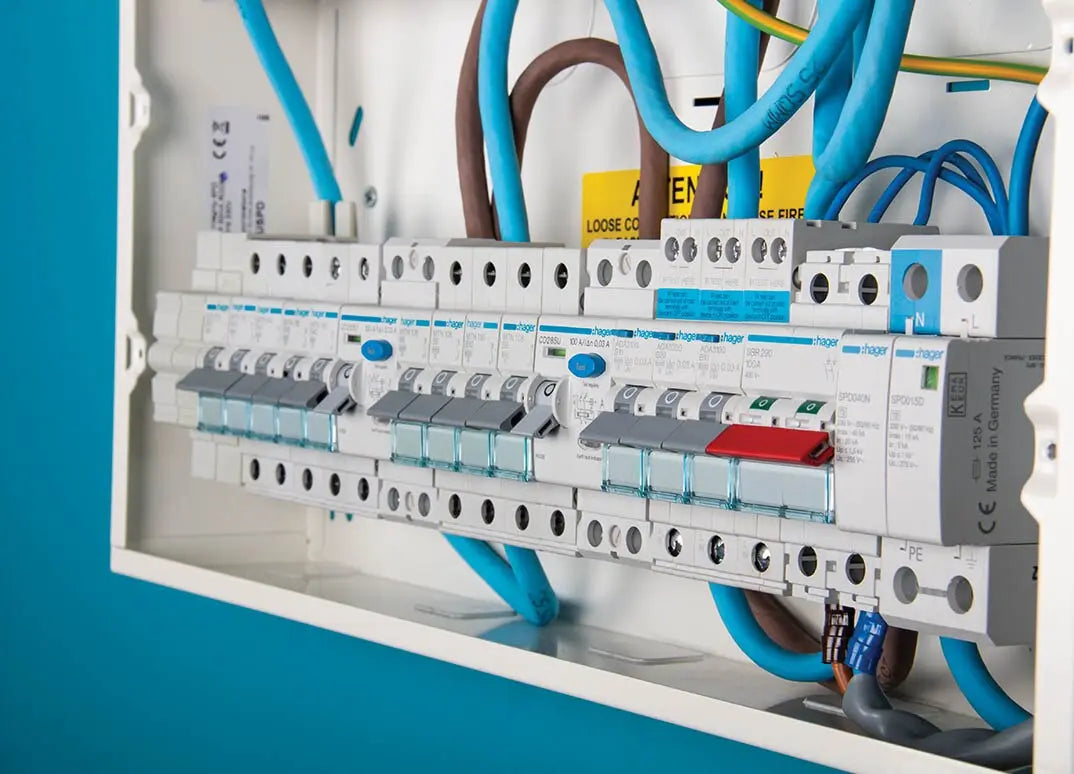

Hager RCCBs/ELCBs installed in a distribution board — genuine Hager installation photography (representative application)
Hager RCCB (ELCB) 63A 4P 300mA, front view with blue test button on a four-pole circuit breaker
Hager CFC464J 4-pole 63A 300mA Type AC RCCB (ELCB) — official Hager product photo
Hager RCCBs/ELCBs installed in a distribution board — genuine Hager installation photography (representative application)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Hager

Hager CFC464J RCCB 63A 4-Pole 300mA Type AC — ELCB Made in France

(0)
AED 166.00 inc. VAT
In stock
Usually ships within 24 hours
Fast UAE delivery & easy returns

Order before 12 PM for same-day dispatch. Delivered in 1–2 business days across the UAE, free on orders over AED 200 (AED 15 below). Unused items in sealed packaging can be returned within 7 days.

Free UAE delivery over AED 200
100% secure payments
Genuine branded products

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

Hager CFC464J RCCB 63A 4-Pole 300mA Type AC — ELCB

The Hager CFC464J is a 63A, 4-pole residual current circuit breaker (RCCB/ELCB) with 300mA Type AC sensitivity, made in France for earth-leakage protection on medium-to-large residential, commercial, and light industrial installations in the UAE. Its 300mA rating is calibrated for fire and equipment protection on distribution circuits rather than individual socket outlets.

Key Features

  • Rated current: 63A, 4-pole (3P+N) configuration
  • 300mA Type AC sensitivity — fire/equipment protection level
  • Rated voltage: 240–415V AC, 50Hz
  • Breaking capacity (Idm): 1.50kA; conditional short-circuit current (Inc): 6kA per EN 61008-1
  • IP20 protection rating, compact 4-module DIN rail width
  • Screw terminals (top) and biconnect terminals (bottom); 1–25mm² rigid / 1–16mm² flexible conductor capacity
  • Rated for 4,000 mechanical and 2,000 electrical operating cycles
  • Made in France by Hager, compliant with IEC/EN safety standards

Technical Specifications

Specification Details
Model CFC464J
Device Type RCCB / ELCB
Rated Current (In) 63 A (derates to 45 A at 70°C)
Poles 4P (3P+N)
Sensitivity (Idn) 300 mA, Type AC
Rated Voltage (Ue) 240–415 V AC
Frequency 50 Hz
Breaking Capacity (Idm) 1.50 kA
Conditional Short-Circuit Current (Inc) 6 kA
Insulation Voltage (Ui) 500 V
Impulse Withstand Voltage 4,000 V
IP Rating IP20
Mounting / Dimensions DIN rail, 4 modules — 83 × 70 × 70 mm (H×W×D)
Terminal Capacity 1–25 mm² rigid / 1–16 mm² flexible
Operating Temperature -25°C to +70°C (derated above 40°C)
Endurance 4,000 mechanical / 2,000 electrical cycles
Standards EN 61008-1

Applications

  • Residential villas and housing projects
  • Commercial offices, schools, hospitals, and retail spaces
  • Industrial distribution panels
  • Installations requiring 63A, 4-pole, 300mA leakage protection

FAQ

  • What's the difference between an MCB and an RCCB/RCD?
    An MCB protects a circuit from overload and short-circuit current. An RCCB/RCD like the CFC464J monitors for earth leakage current and trips to prevent fire and equipment damage — it does not provide overload protection. The two are typically installed together in a distribution board.
  • What does the 300mA sensitivity rating mean?
    300mA is a fire/equipment-protection threshold rather than a personnel-protection one: the CFC464J trips on larger leakage currents, making it suited to main incomers and distribution circuits where nuisance tripping from cumulative leakage must be avoided, while 30mA devices are used on individual final circuits for shock protection.
  • How many poles do I need?
    The CFC464J is a 4-pole (3P+N) device for three-phase supplies with neutral, protecting all three phases and the neutral conductor. Use a 2-pole RCCB for single-phase circuits instead.
  • Can I install this myself?
    No. This is a distribution-board component that must be installed and commissioned by a licensed electrician in accordance with UAE wiring regulations.
