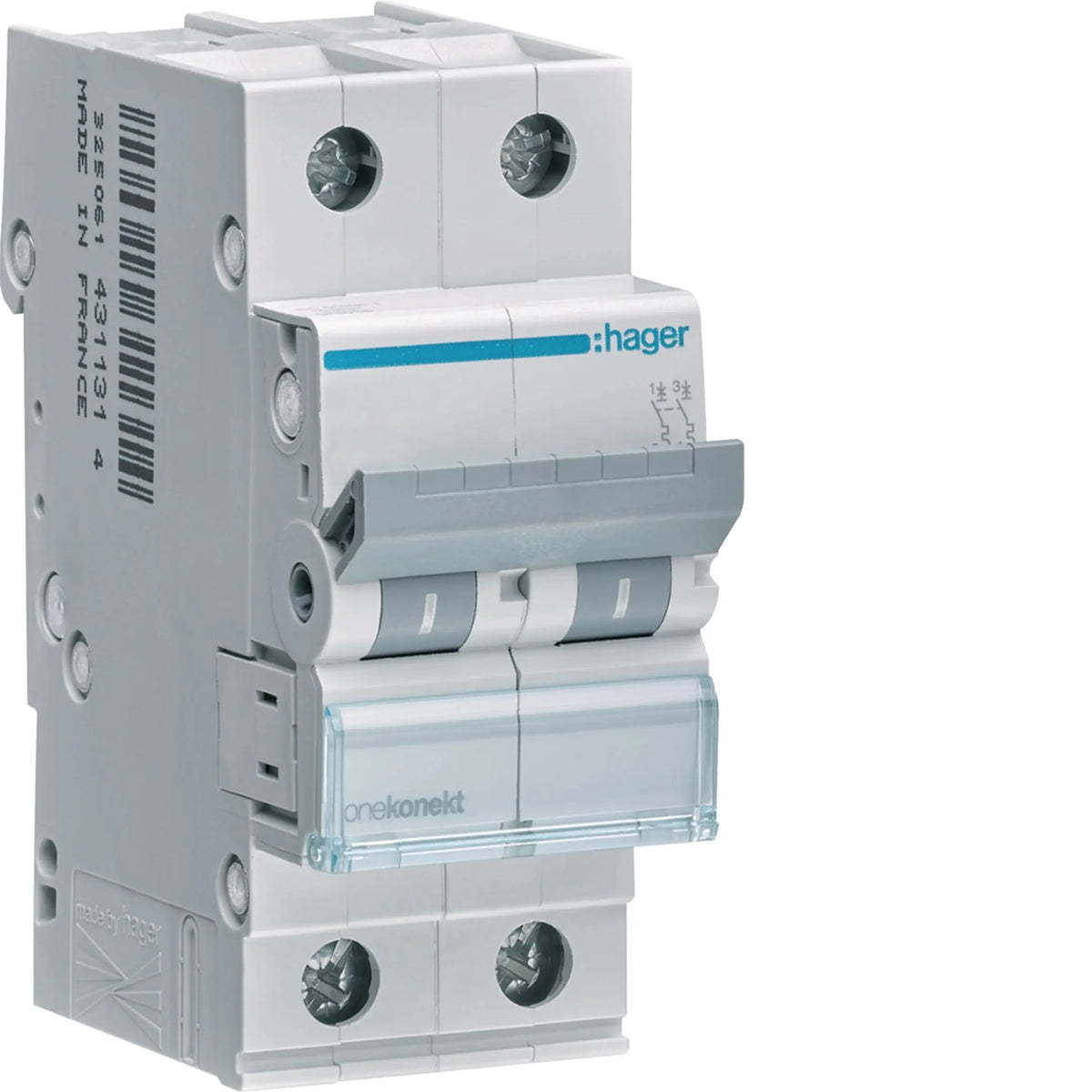

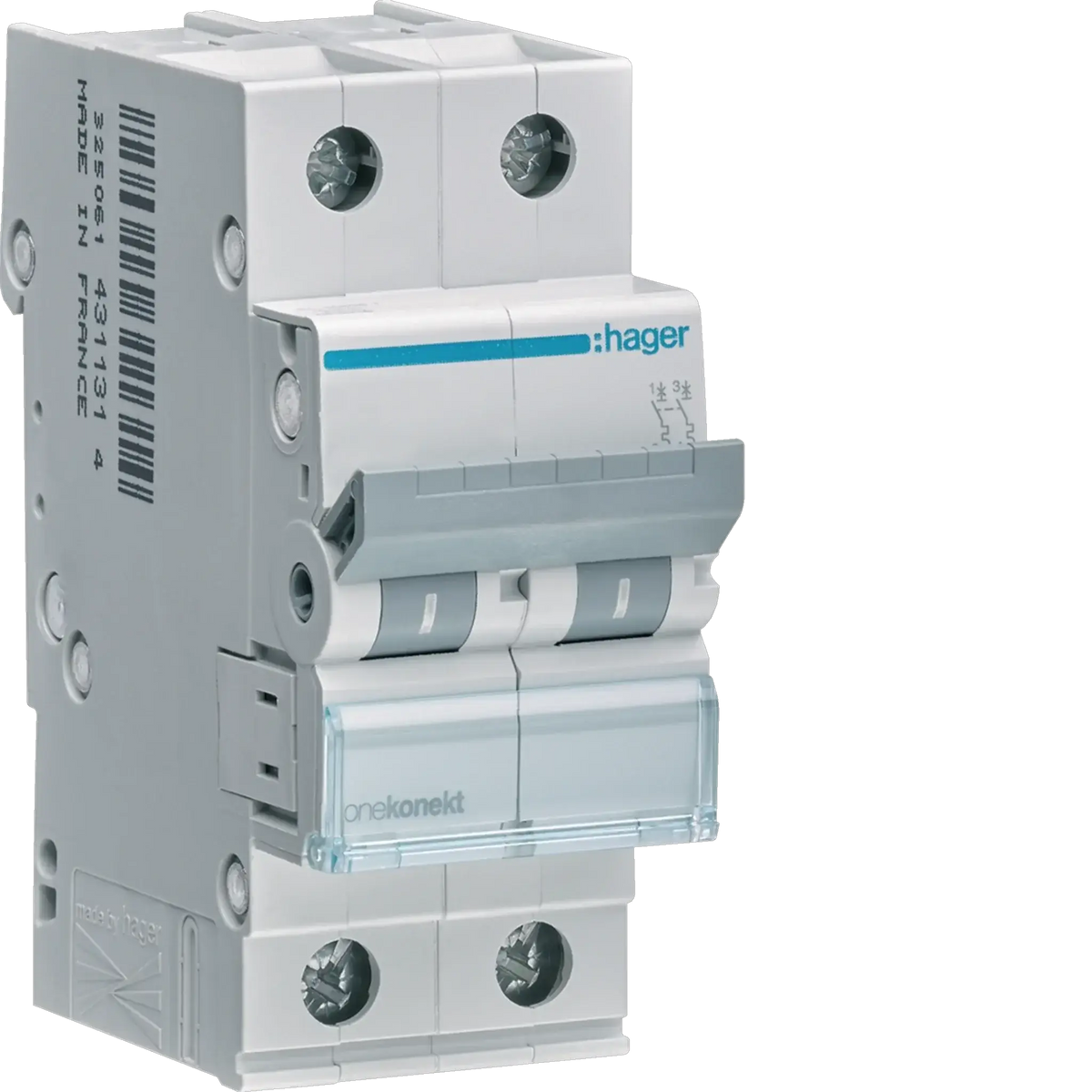

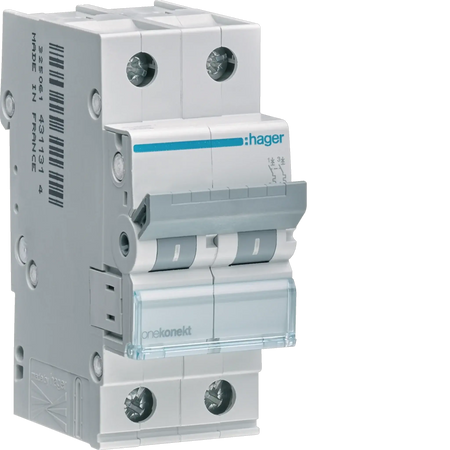

Hager MCN240 MCB 40A 2-Pole 6kA Type C — Made in France
The Hager MCN240 is a 40A, 2-pole miniature circuit breaker, Made in France, designed to protect electrical installations against overloads and short circuits. With a 6kA breaking capacity and a Type C tripping curve, it suits residential, commercial, and light industrial circuits with moderate inrush currents. The 2-pole (Line + Neutral) configuration provides full double-pole isolation and mounts easily into Hager DIN-rail distribution boards used across UAE installations.
Key Features
- Model: MCN240, 40A rated current, 2P (double pole) configuration
- 6kA rated breaking capacity (Icn) to IEC 60898-1
- Type C tripping curve for circuits with moderate inrush current
- 2 modules (35mm total width) — compact double-pole DIN-rail footprint
- IP20 enclosure rating with a wide -25°C to +70°C operating range
- Screw-terminal connections, rigid conductors up to 35mm² / flexible up to 25mm²
- Fully compliant with IEC 60898-1, IEC 60947-2, and IEC 60664
Technical Specifications
| Specification |
Details |
| Brand |
Hager |
| Model |
MCN240 |
| Rated Current |
40A |
| Poles |
2P (Double Pole) |
| Breaking Capacity (Icn) |
6 kA per IEC 60898-1 |
| Tripping Curve |
Type C |
| Rated Operating Voltage |
415 V AC |
| Frequency |
50 - 60 Hz |
| Insulation Voltage |
500 V (4,000 V impulse withstand) |
| Mounting Width |
2 modules (35 mm total width) |
| IP Rating |
IP20 |
| Operating Temperature |
-25°C to +70°C |
| Conductor Capacity |
Rigid 1-35 mm² / Flexible 1-25 mm² |
| Standards |
IEC 60898-1, IEC 60947-2, IEC 60664 |
| Origin |
Made in France |
| Mounting |
DIN Rail (EN 60715) |
Applications
- Residential villas and apartments
- Commercial buildings: offices, schools, hospitals, retail outlets
- Light industrial power distribution systems
- Circuits requiring double-pole isolation with Type C tripping characteristics
FAQ
-
What's the difference between an MCB and an RCCB/RCD?
An MCB (like the MCN240) protects the circuit and cabling against overload and short-circuit currents. An RCCB/RCD instead protects against earth leakage and electric shock. The two devices do different jobs and are typically installed together, not as substitutes for one another.
-
What does 2-pole (2P) mean and when do I need it?
A 2-pole breaker switches both the line and neutral conductors together, giving full double-pole isolation. It's typically specified where a circuit or sub-board needs complete disconnection from supply, rather than the single-pole (line-only) switching used on standard final circuits.
-
Is the MCN240 compatible with existing Hager distribution boards?

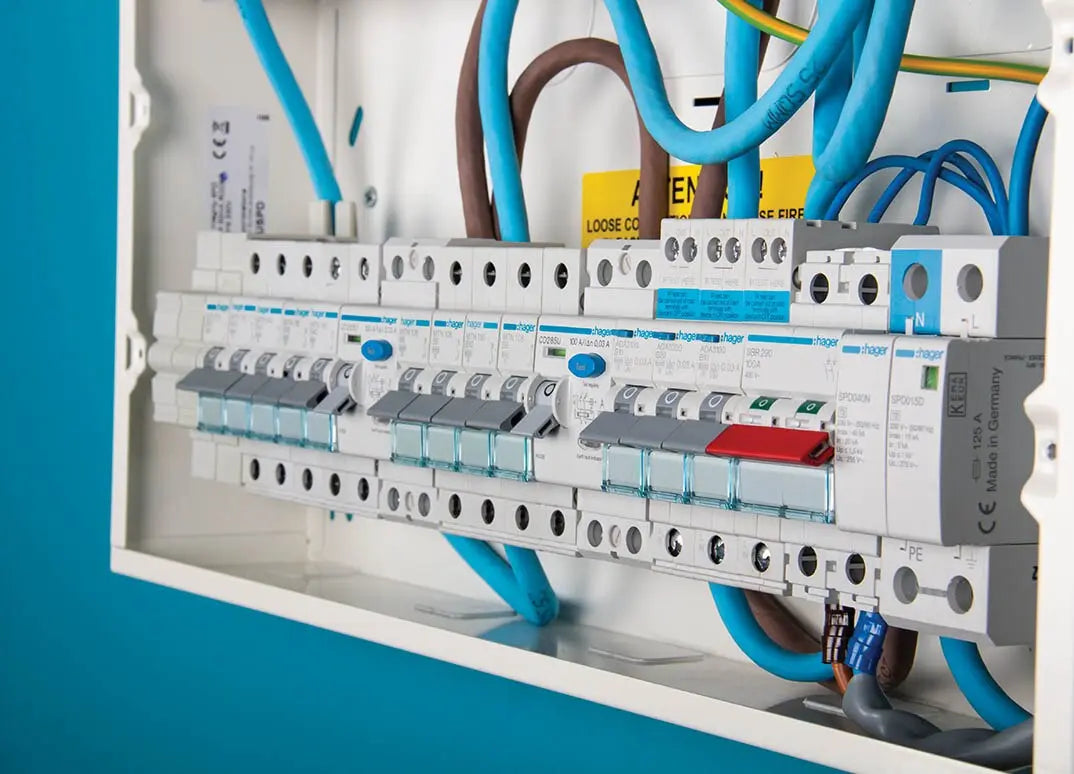

Yes. It's a standard DIN-rail (EN 60715) mounted MCB and integrates directly into Hager's modular consumer units and distribution boards.
-
What's the difference between Type B and Type C tripping curves?
Type C trips at roughly 5-10 times rated current, giving it enough margin to handle the inrush of motors, transformers, and lighting ballasts without nuisance tripping. Type B trips at a lower 3-5x threshold and suits purely resistive loads. Type C is the common choice for mixed commercial and light industrial circuits.
-
Can I install this myself?
No. This is a distribution board component and must be installed and connected by a licensed electrician in accordance with UAE wiring regulations — it is not a DIY consumer product.
