Gewiss GW62004H Industrial Socket 16A 2P+E 230V IP44 — Straight Connector

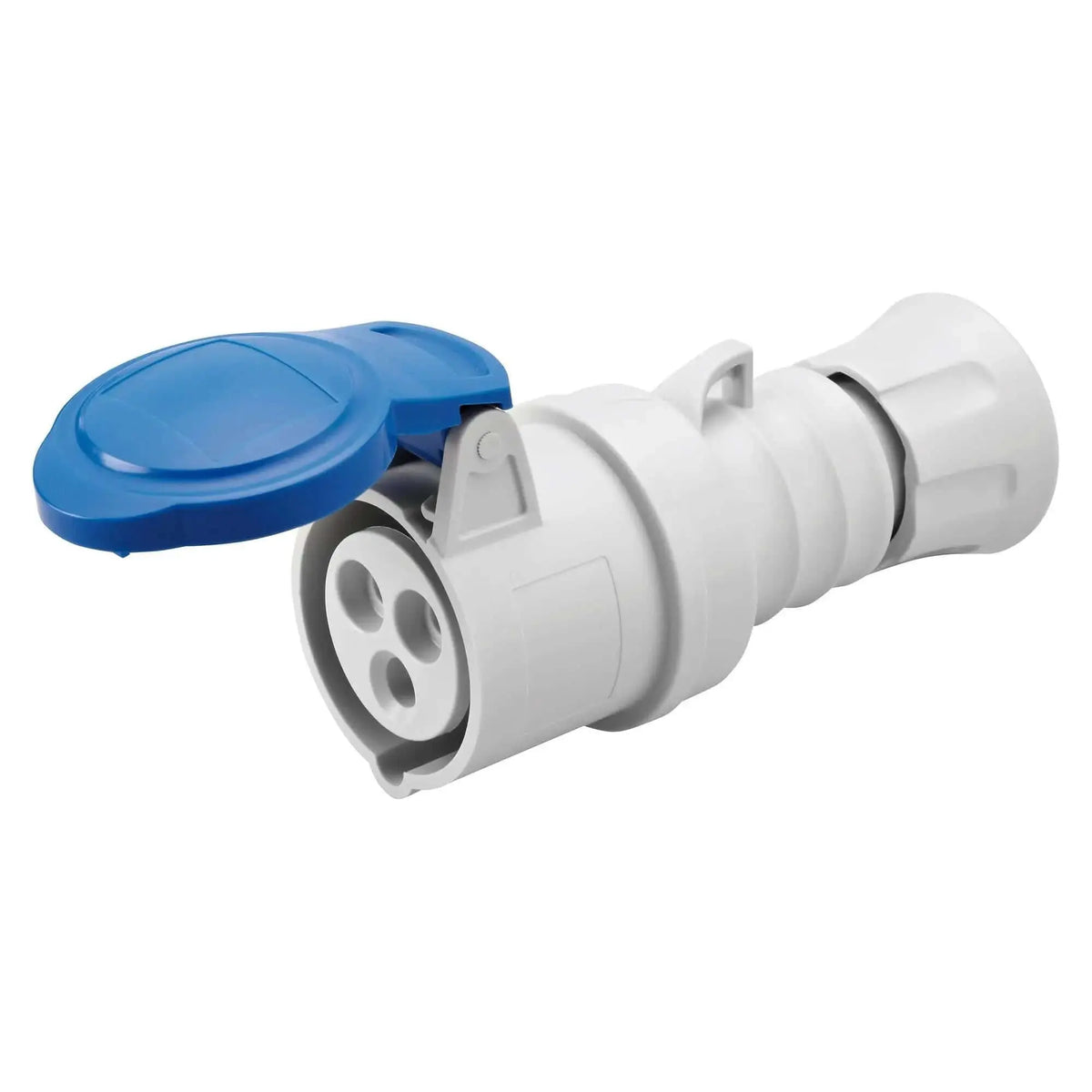

Gewiss GW62004H Straight Connector 16A 2P+E – IP44/IP54 (230V, 6H)

Compact IEC 309 HP-series straight connector for secure 16A, 230V 2P+E connections. Blue 6H housing with IP44/IP54 protection for reliable use in industrial and commercial environments.

Key Features

• IEC 60309 HP-series straight connector
• Rated current: 16 A
• Poles: 2P+E
• Rated voltage: 200–250 V AC (230 V nominal); 50/60 Hz
• Hour position: 6H; blue housing (IEC 230V coding)
• Protection: IP44/IP54 – splash-proof and dust resistant
• Wiring: Screw terminals
• Housing: High-strength technopolymer
• Weight: ≈ 0.153 kg
• Standards: IEC 60309 compliant

Technical specifications

Applications

• Electrical distribution panels
• Industrial workshops & factories
• Construction and logistics sites
• Commercial facilities needing secure 230V power connections

FAQ

• Is this the plug or the connector (in-line socket)?
  This is the connector — the female in-line socket wired onto the end of a flexible cable (extension lead, cable reel, etc.), which mates with a matching male plug. Make sure you're also ordering the matching plug if you don't already have one.
• What does 2P+E mean?
  It's a 3-pin configuration: line, neutral, and earth — the standard arrangement for single-phase 230V industrial power connections.
• What does the IP44 rating mean, and is this suitable outdoors?
  IP44 means it's protected against solid objects larger than 1mm and splashing water from any direction — suitable for outdoor use and damp site conditions, but not for full immersion or direct jetting/hosing down. Check the enclosure is fitted correctly (cover closed, gland sealed) to maintain the rating in practice.
• Can I wire this myself?
  Wiring a connector onto a flexible cable is a common competent-person task, but at 16A/230V voltage the terminations must be secure and correctly torqued — if you're not confident working with industrial power connectors, have a licensed electrician do it.
• Is this compatible with standard IEC 60309 plugs?
  Yes — Gewiss HP-series connectors follow the IEC 60309 pin-and-sleeve standard, so they mate with any compliant IEC 60309 plug of the same rating, pole configuration, and colour/hour-position coding, not just other Gewiss products.
