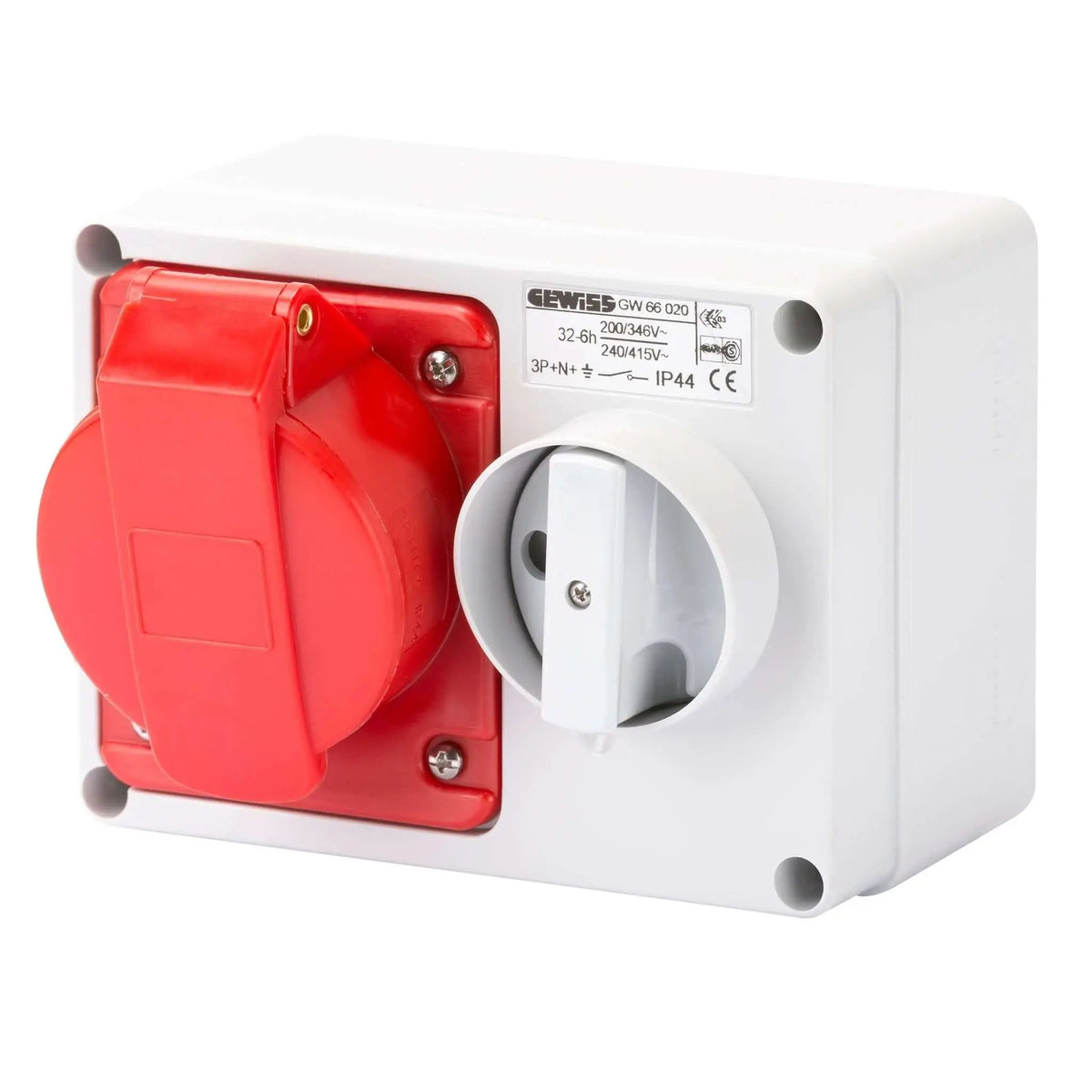

Gewiss Fixed Interlocked Socket Outlet GW66020 32A 3P+N+E – IP44 Red
Robust, safe, and reliable industrial power distribution with an integrated mechanical interlock. Designed for hard-wearing UAE environments in factories, workshops and commercial installations.
Key Features
- Integrated mechanical interlock prevents plug insertion or removal under load.
- IP44 protection for protection against solid objects and water splashes from all directions.
- 32 A rating with 3P+N+E configuration for balanced, grounded three‑phase power.
- Horizontal fixed mounting for secure, easy-to-wire installations.
- Red color coding for high visibility in industrial settings.
Technical Specifications
| Specification |
Details |
| Brand |
Gewiss |
| Model |
GW66020 |
| Product Type |
Fixed Interlocked Socket Outlet |
| Mounting Type |
Horizontal Fixed |
| Current Rating |
32 A |
| Poles |
3P + N + E |
| Rated Voltage |
400 V |
| Frequency |
50/60 Hz |
| Protection Rating |
IP44 |
| Color |
Red |
| Interlock Type |
Mechanical Interlock with Switch |
| Application |
Industrial Power Distribution (Factories, Workshops, Commercial Installations) |
Applications
- Industrial plants and production lines
- Factories, warehouses, and construction sites
- Commercial workshops and service bays
FAQ
-
What does "interlocked" mean on this socket?
An interlocked socket has a mechanical or electrical lock that only allows the plug to be inserted or removed when the socket's isolating switch is in the OFF position — preventing anyone from plugging or unplugging equipment while it's live. This is typically required by site safety rules for higher-current industrial connections.
-
What does 3P+N+E mean?
It's a 5-pin configuration carrying all 3 phases, a neutral, and an earth — used for three-phase 400V power distribution to equipment that needs a neutral (as opposed to 3P+E, which has no neutral).
-
What does the IP44 rating mean, and is this suitable outdoors?
IP44 means it's protected against solid objects larger than 1mm and splashing water from any direction — suitable for outdoor use and damp site conditions, but not for full immersion or direct jetting/hosing down. Check the enclosure is fitted correctly (cover closed, gland sealed) to maintain the rating in practice.
-
How is this socket mounted?
Check the product title/Technical Specifications for the exact mounting style — flush-mount sockets are recessed into a panel or wall, surface-mount sockets are fixed to the wall/enclosure face, and interlocked sockets are typically panel-mounted with an integral isolating switch.
-
Can I install this myself?
No. This is a fixed socket outlet wired into a permanent electrical installation or distribution board, and should be installed and connected by a licensed electrician in accordance with UAE wiring regulations.
