The Gewiss GW60015H straight plug is built for demanding UAE projects, delivering reliable power connections with robust protection and easy field wiring. Ideal for industrial, commercial, and construction environments that require durable, compliant electrical connectors.

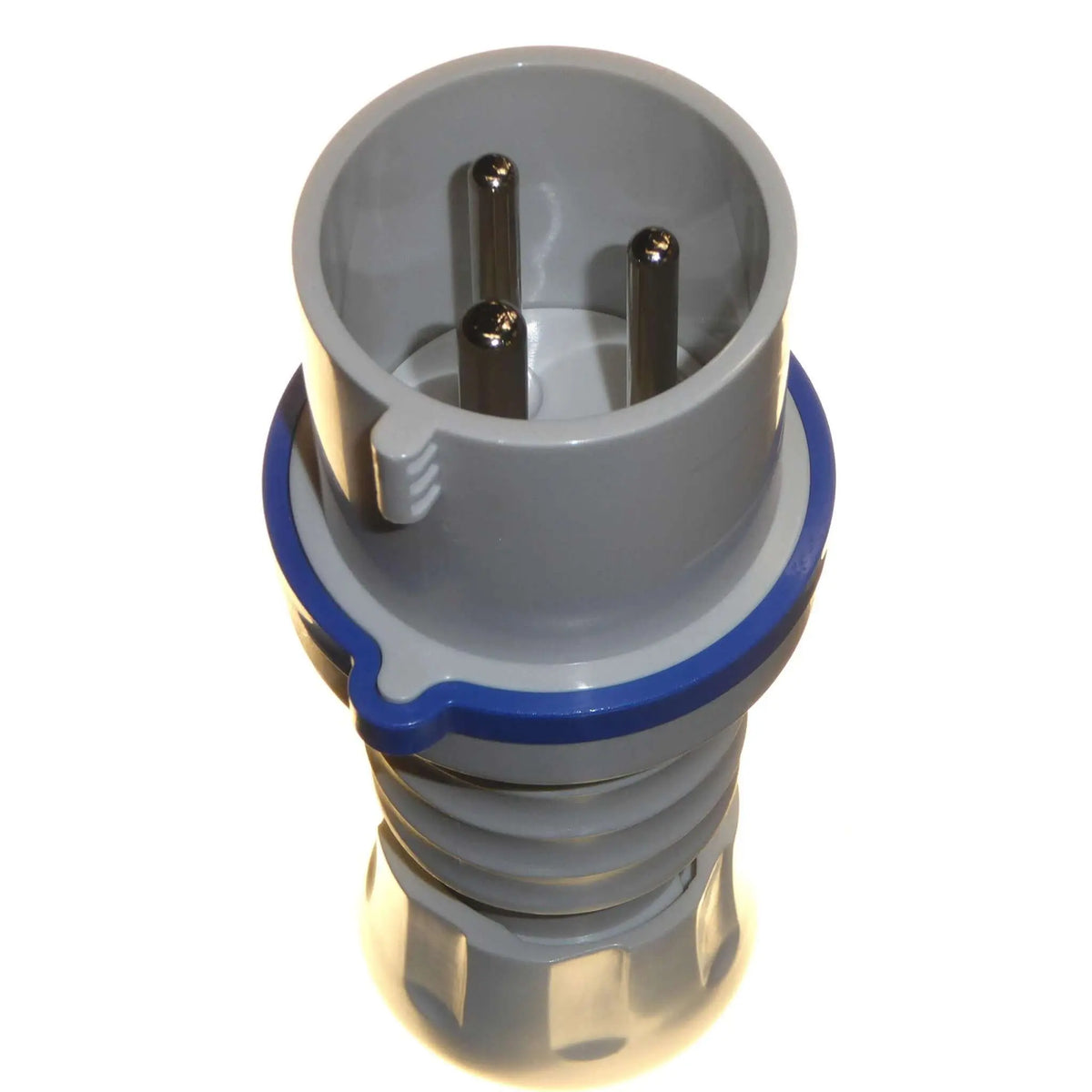

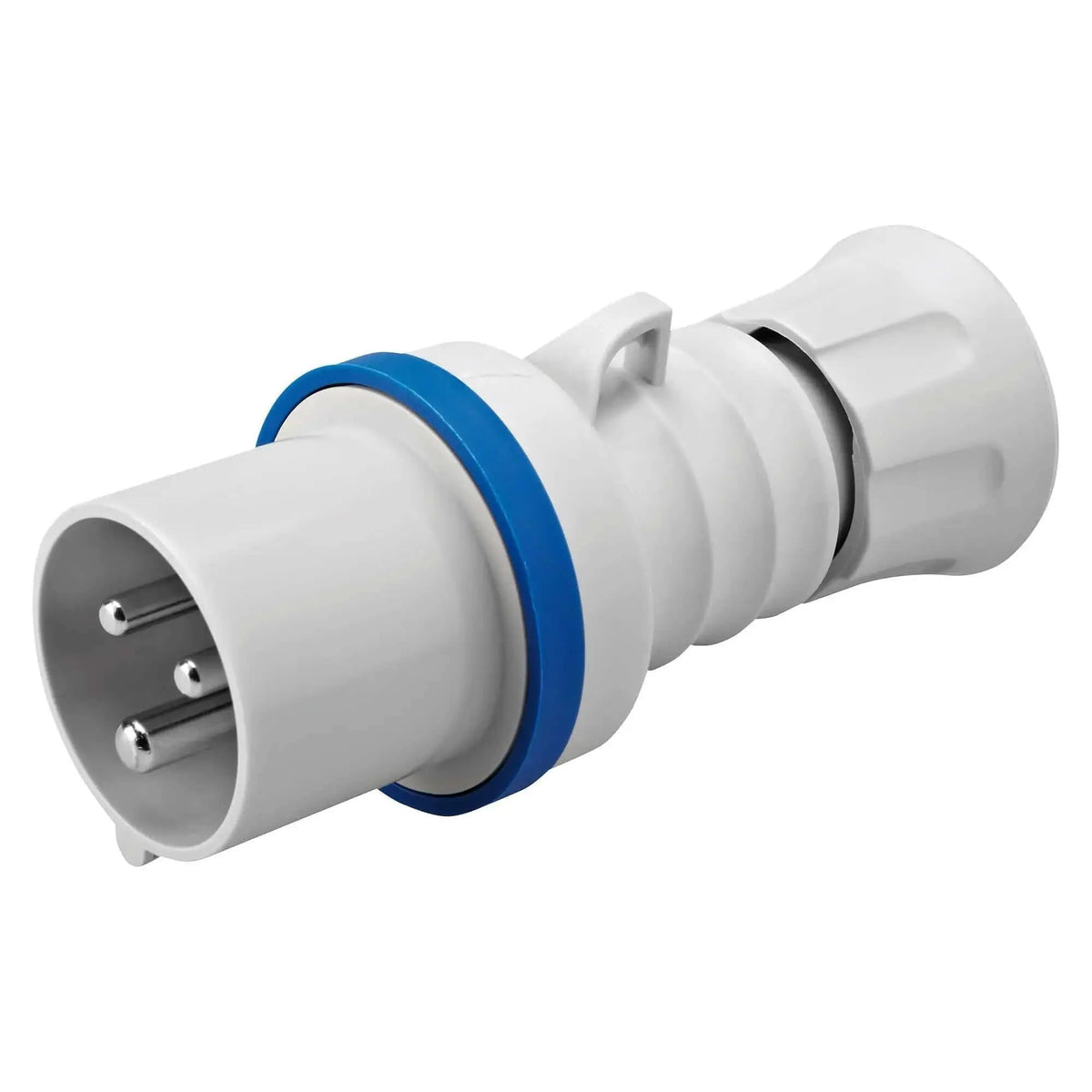

Gewiss GW60015H Straight Plug 32A 2P+E – IP44/IP54 Blue (230V, 6H)
From the IEC 309 HP series, this blue-keyed straight plug provides secure 32 A connections at 230 V with splash and dust protection, designed for tough UAE job sites where reliability matters.
Key Features
- IEC 309 HP straight plug
- Rated current: 32 A

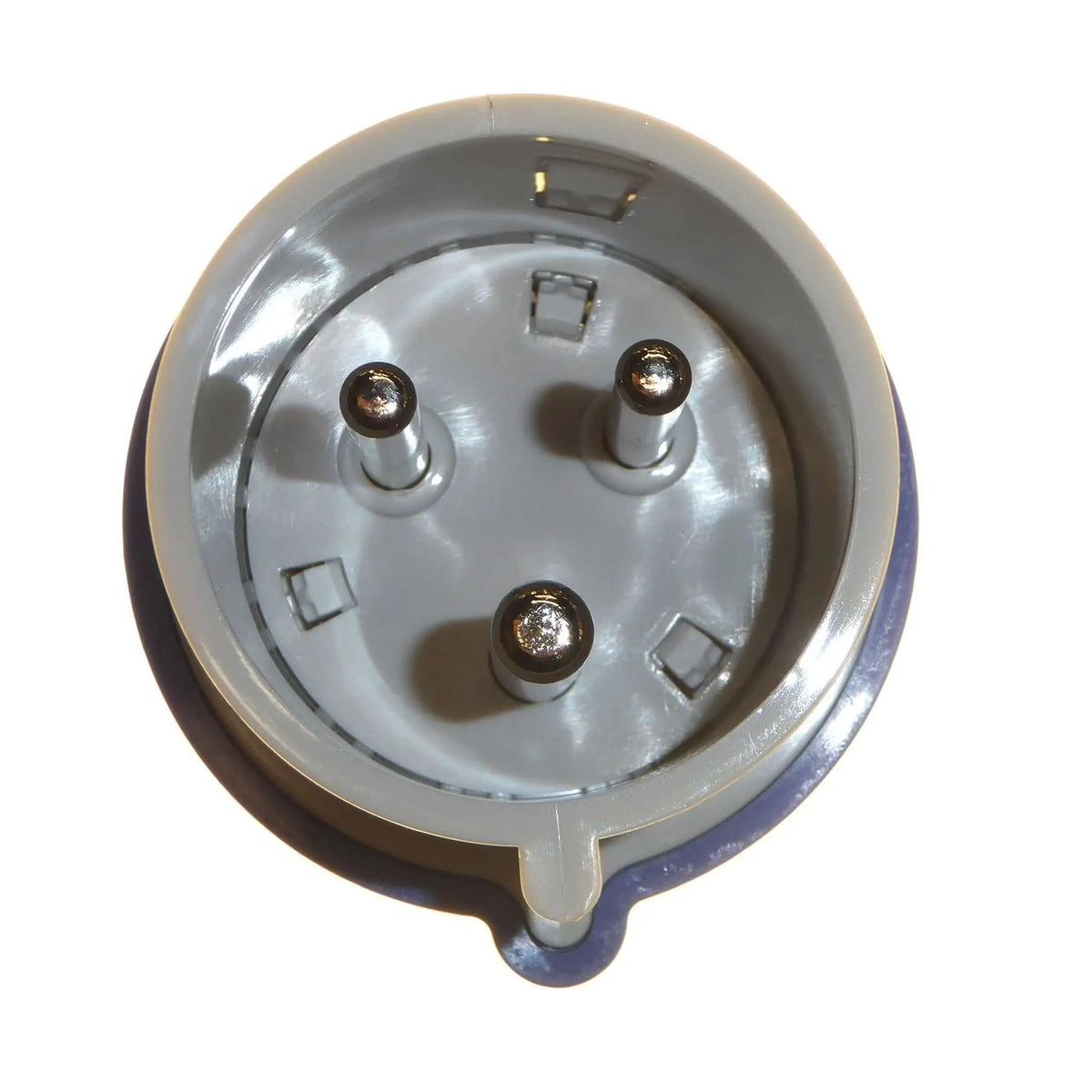

- Poles: 2P+E
- Rated voltage: 200–250 V AC (230 V nominal); 50/60 Hz
- Protection: IP44/IP54 (splash-proof, dust-resistant)
- Housing: Impact-resistant technopolymer

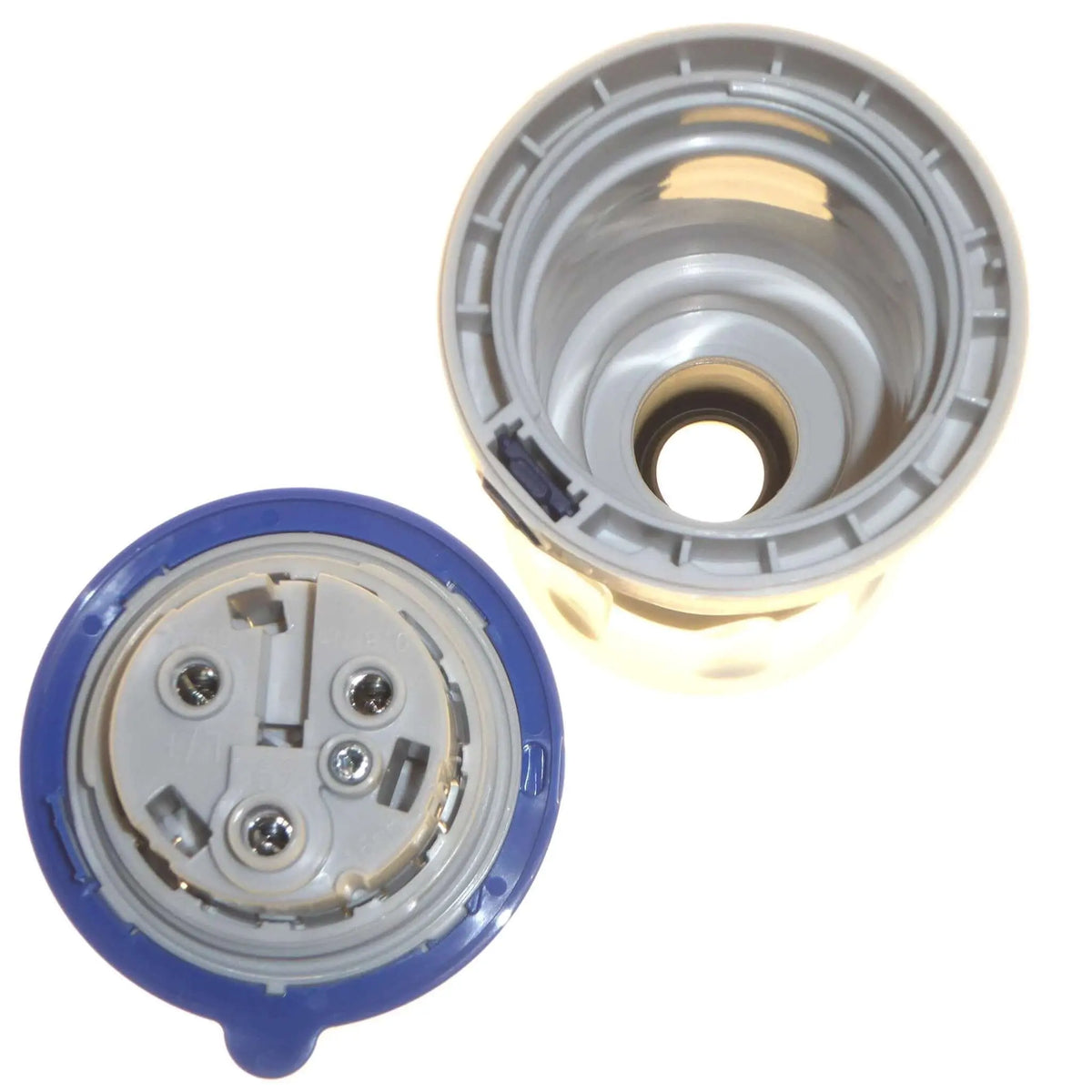

- Wiring: Screw terminal connections
- Keying position: 6H; Blue housing (IEC coding for 230 V)
- Weight: ≈ 0.236 kg (net)
- IEC 60309 compliant
Technical specifications
| Specification |
Details |
| Brand |
Gewiss |
| Model |
GW60015H |
| Type |
Straight Plug (HP Series) |
| Rated current |
32 A |
| Poles |
2P+E |
| Rated voltage |
200–250 V AC (230 V nominal) |
| Frequency |
50/60 Hz |
| Protection |
IP44/IP54 |
| Housing material |
Technopolymer |
| Weight |
≈ 0.236 kg |
| Keying position |
6H (Blue housing) |
| Standards |
IEC 60309 compliant |
| EAN/GTIN |
8011564796782 |
Applications
- Industrial workshops & factories
- Construction sites & temporary site power
- Food processing and commercial facilities
- Electrical distribution panels and external installations
FAQ
-
Is this the plug or the socket?
This is the plug (male) — the end that's wired onto the supply cable and inserted into a matching Gewiss socket or connector. Make sure you're also ordering the matching female socket/connector if you don't already have one, since plugs and sockets are sold separately.
-
What does 2P+E mean?
It's a 3-pin configuration: line, neutral, and earth — the standard arrangement for single-phase 230V industrial power connections.
-
What does the IP44 rating mean, and is this suitable outdoors?
IP44 means it's protected against solid objects larger than 1mm and splashing water from any direction — suitable for outdoor use and damp site conditions, but not for full immersion or direct jetting/hosing down. Check the enclosure is fitted correctly (cover closed, gland sealed) to maintain the rating in practice.
-
Can I wire this myself?
Wiring a plug onto a flexible cable is a common competent-person task, similar to fitting a household plug, but at 32A/230V voltage the terminations must be secure and correctly torqued — if you're not confident working with industrial power connectors, have a licensed electrician do it.
-
Is this compatible with standard Gewiss/IEC 60309 sockets?
Yes — Gewiss HP-series plugs follow the IEC 60309 pin-and-sleeve standard (matched by rating, pole configuration, and colour/hour-position coding), so it mates with any compliant IEC 60309 socket of the same rating and configuration, not just other Gewiss products.
