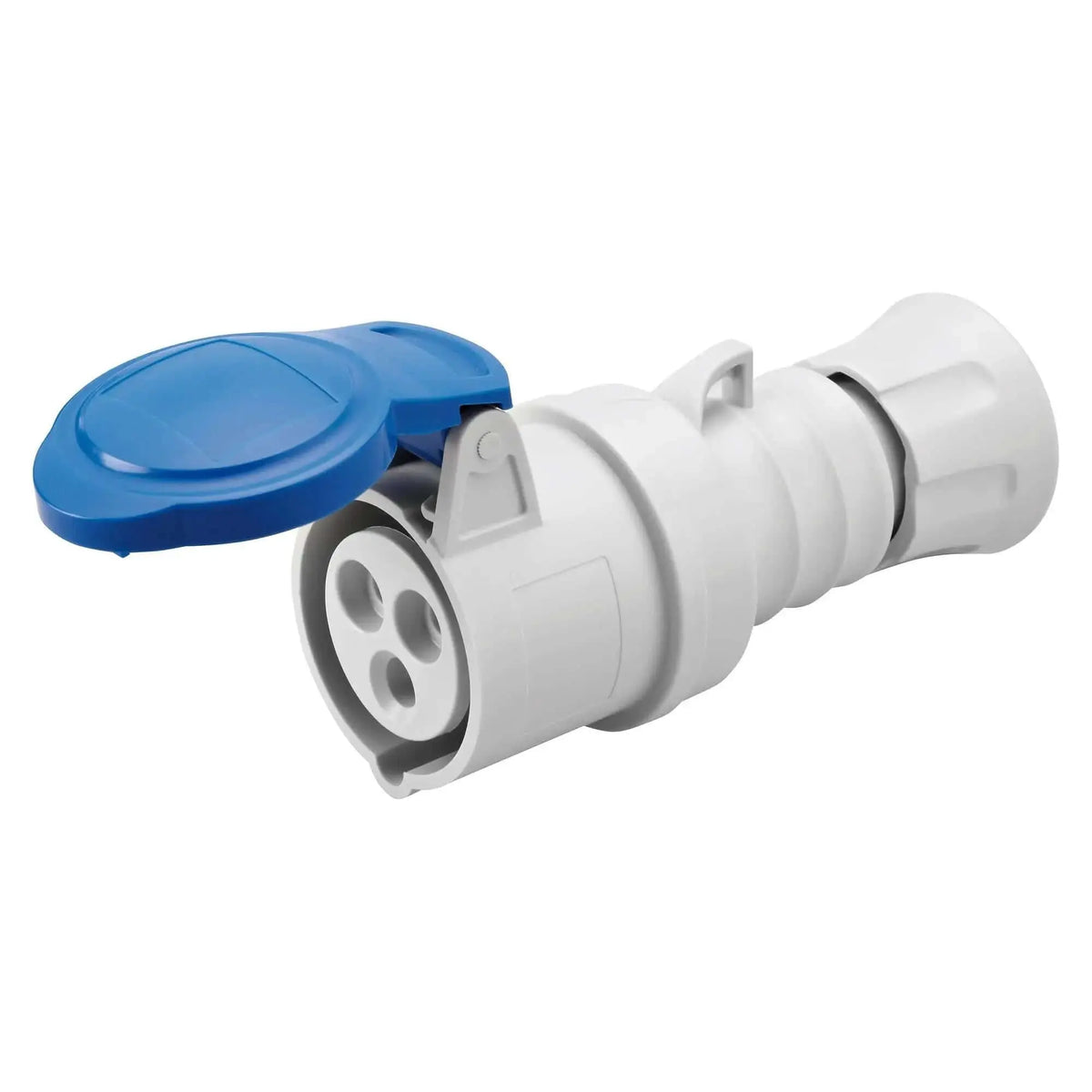

Gewiss GW62015H Straight Connector 32A 2P+E – IP44/IP54 Blue (230V, 6H) is a rugged industrial connector from Gewiss IEC 309 HP series. Engineered for reliable power distribution in harsh environments, it delivers 32A at 230V with 2P+E wiring and splash/dust protection.
Key Features
- IEC 60309 HP-series straight connector
- Rated current: 32 A
- Poles: 2P+E
- Rated voltage: 200–250 V AC (230 V nominal); 50/60 Hz
- Hour position: 6H; blue housing (IEC 230V coding)
- Protection: IP44/IP54 – splash-proof and dust resistant
- Wiring: Screw terminals
- Housing: High-strength technopolymer
- Standards: IEC 60309 compliant
Technical specifications
| Specification |
Details |
| Brand |
Gewiss |
| Model |
GW62015H |
| Type |
Straight Connector (HP Range) |
| Rated Current |
32A |
| Poles |
2P+E |
| Rated Voltage |
200–250V AC (230V nominal) |
| Frequency |
50/60 Hz |
| Hour Position |
6H (blue housing – IEC coding for 230V) |
| Protection |
IP44/IP54 |
| Wiring |
Screw terminals |
| Material |
High-strength technopolymer |
| Weight |
≈ 0.306 kg |
| Standards |
IEC 60309 compliant |
| EAN/GTIN |
8011564798267 |
Applications
- Industrial plants and workshops
- Construction and logistics sites
- Food processing facilities and commercial environments
- Electrical panels and temporary site power
FAQ
-
Is this the plug or the connector (in-line socket)?
This is the connector — the female in-line socket wired onto the end of a flexible cable (extension lead, cable reel, etc.), which mates with a matching male plug. Make sure you're also ordering the matching plug if you don't already have one.
-
What does 2P+E mean?
It's a 3-pin configuration: line, neutral, and earth — the standard arrangement for single-phase 230V industrial power connections.
-
What does the IP44 rating mean, and is this suitable outdoors?
IP44 means it's protected against solid objects larger than 1mm and splashing water from any direction — suitable for outdoor use and damp site conditions, but not for full immersion or direct jetting/hosing down. Check the enclosure is fitted correctly (cover closed, gland sealed) to maintain the rating in practice.
-
Can I wire this myself?
Wiring a connector onto a flexible cable is a common competent-person task, but at 32A/230V voltage the terminations must be secure and correctly torqued — if you're not confident working with industrial power connectors, have a licensed electrician do it.
-
Is this compatible with standard IEC 60309 plugs?
Yes — Gewiss HP-series connectors follow the IEC 60309 pin-and-sleeve standard, so they mate with any compliant IEC 60309 plug of the same rating, pole configuration, and colour/hour-position coding, not just other Gewiss products.
