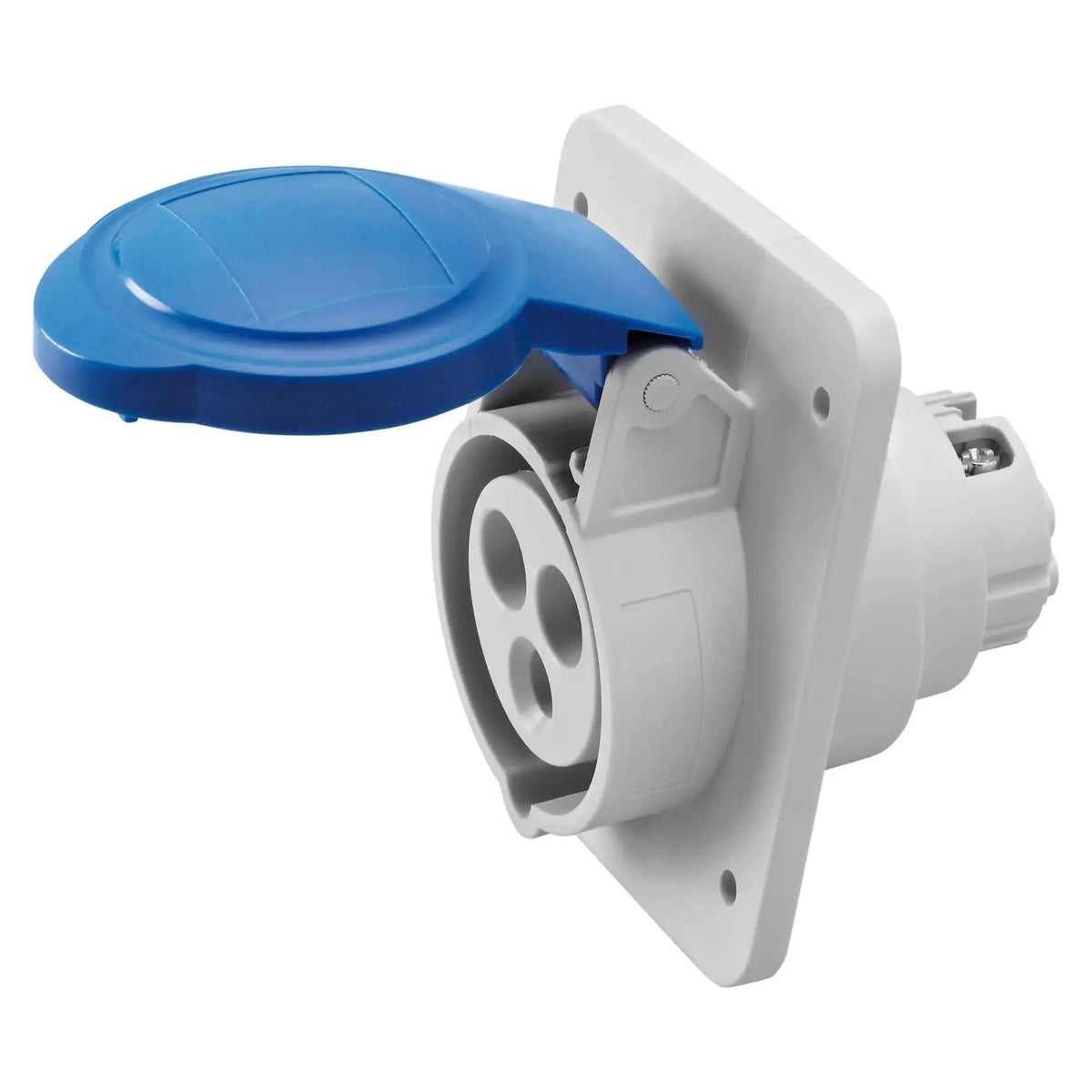

Gewiss GW62205H Industrial Socket 16A 2P+E 230V IP44 — Angled Flush-Mount

Gewiss GW62205H 10° Angled Flush-Mount Socket Outlet (HP Range) – 16A 2P+E, IP44, Blue

The Gewiss GW62205H delivers reliable 16 A, 230 V power in industrial and commercial UAE environments. Its 10° angled flush-mount design reduces cable strain, while IP44 protection safeguards against splashes and dust. Quick Fix panel-mount enables fast, secure installations on panels and distribution boards.

Key Features

• 16 A, 2P+E socket configuration for 230 V systems
• 10° angled flush-mount design minimizes cable bending and tension
• IP44 splash-proof and dust-resistant enclosure
• Blue housing with IEC 6H coding for 230 V installations
• Wiring via screw terminals; suitable for panel-mount installations
• High-strength technopolymer housing for industrial environments
• HP (IEC) series compatibility; IEC 60309 compliant
• Net weight approx. 0.106 kg

Technical Specifications

Applications

• Industrial workshops and factories requiring robust panel-mounted sockets
• Electrical distribution boards and service panels
• Construction sites and logistics facilities with fixed power distribution
• Commercial facilities needing reliable, weather-protected sockets

FAQ

• What does 2P+E mean?
  It's a 3-pin configuration: line, neutral, and earth — the standard arrangement for single-phase 230V industrial power connections.
• What does the IP44 rating mean, and is this suitable outdoors?
  IP44 means it's protected against solid objects larger than 1mm and splashing water from any direction — suitable for outdoor use and damp site conditions, but not for full immersion or direct jetting/hosing down. Check the enclosure is fitted correctly (cover closed, gland sealed) to maintain the rating in practice.
• How is this socket mounted?
  Check the product title/Technical Specifications for the exact mounting style — flush-mount sockets are recessed into a panel or wall, surface-mount sockets are fixed to the wall/enclosure face, and interlocked sockets are typically panel-mounted with an integral isolating switch.
• Can I install this myself?
  No. This is a fixed socket outlet wired into a permanent electrical installation or distribution board, and should be installed and connected by a licensed electrician in accordance with UAE wiring regulations.
