Gewiss GW60009H Industrial Plug 16A 400V 5-Pin 3P+N+E IP44 — Straight Red

Robust three-phase connection for demanding industrial environments. The Gewiss GW60009H HP Industrial Straight Plug delivers 16A at 400V (3P+N+E) with IP44/IP54 protection, ensuring reliable performance against water and dust ingress on UAE job sites.

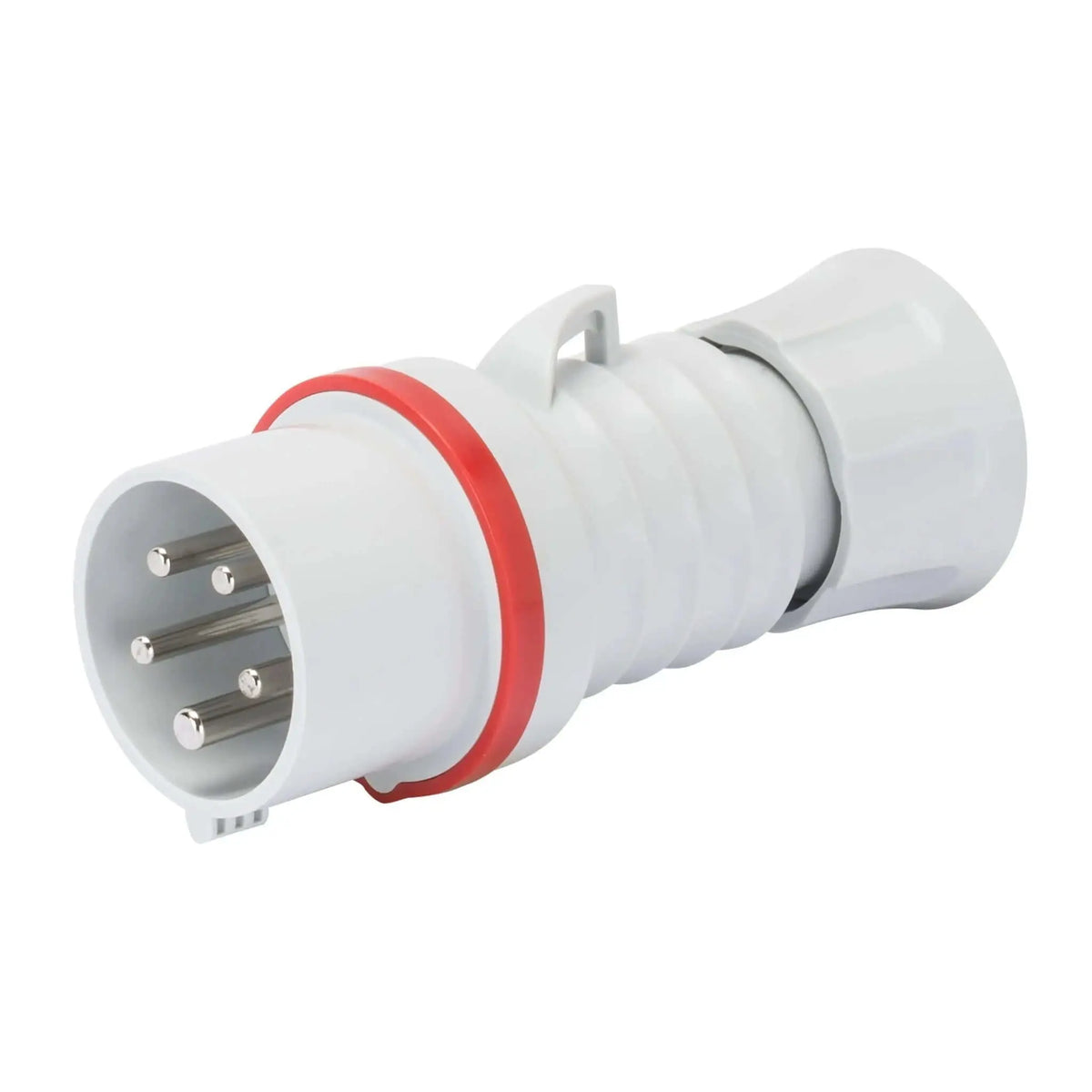

Gewiss GW60009H HP Industrial Straight Plug, 16A 400V 5-Pin (3P+N+E), IP44/IP54 Red

Key Features

• Part Number: GW60009H
• Current Rating: 16A
• Voltage: 400V (380-415V)
• Pin Configuration: 5-pin (3P+N+E)
• Protection Rating: IP44/IP54
• Design: Straight plug
• Material: Halogen-free technopolymer
• Color: Red (6h coding)
• Wiring: Screw-type terminals
• Nickel-plated pins for corrosion resistance

Technical Specifications

Applications

• Three-phase motors and equipment in industrial plants
• Conveyors, pumps, fans and CNC machinery
• Temporary or permanent power connections in factories and warehouses

FAQ

• Is this the plug or the socket?
  This is the plug (male) — the end that's wired onto the supply cable and inserted into a matching Gewiss socket or connector. Make sure you're also ordering the matching female socket/connector if you don't already have one, since plugs and sockets are sold separately.
• What does 3P+N+E mean?
  It's a 5-pin configuration carrying all 3 phases, a neutral, and an earth — used for three-phase 400V power distribution to equipment that needs a neutral (as opposed to 3P+E, which has no neutral).
• What does the IP44 rating mean, and is this suitable outdoors?
  IP44 means it's protected against solid objects larger than 1mm and splashing water from any direction — suitable for outdoor use and damp site conditions, but not for full immersion or direct jetting/hosing down. Check the enclosure is fitted correctly (cover closed, gland sealed) to maintain the rating in practice.
• Can I wire this myself?
  Wiring a plug onto a flexible cable is a common competent-person task, similar to fitting a household plug, but at 16A/400V voltage the terminations must be secure and correctly torqued — if you're not confident working with industrial power connectors, have a licensed electrician do it.
• Is this compatible with standard Gewiss/IEC 60309 sockets?
  Yes — Gewiss HP-series plugs follow the IEC 60309 pin-and-sleeve standard (matched by rating, pole configuration, and colour/hour-position coding), so it mates with any compliant IEC 60309 socket of the same rating and configuration, not just other Gewiss products.
