Gewiss GW62210H Industrial Socket 16A 400V 5-Pin 3P+N+E IP44 — Angled Flush-Mount

The Gewiss GW62210H is a 16A, 400V (3P+N+E) flush‑mount socket outlet from the HP series, built for demanding industrial and commercial environments. Its 10° angled body aids cable entry while maintaining a compact, secure installation. Red color coding enhances 400V system recognition and safety.

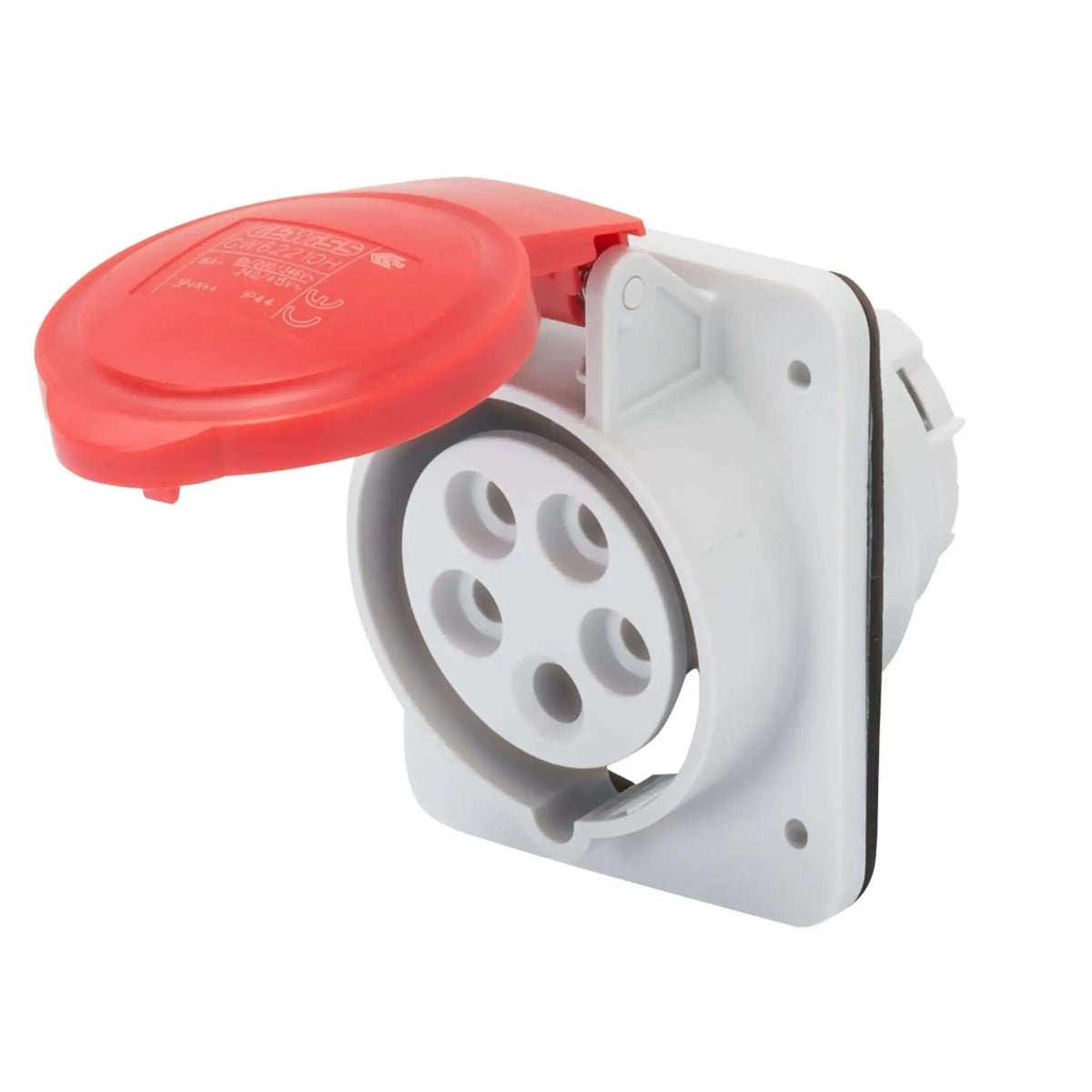

Gewiss GW62210H 10° Angled Flush-Mount Socket Outlet

Key Features

• Current rating: 16A; Voltage: 400V (380–415V); 5‑pin (3P+N+E) configuration
• IP44 protection for splash and dust resistance
• 10° angled flush‑mount design for neat installations and easier cabling
• Halogen‑free technopolymer body in red for clear system identification
• Screw‑type terminals for secure wiring
• Durable HP series construction for long service life

Technical Specifications

Applications

• Industrial machinery connections and control panels
• Commercial facilities and workshops requiring robust 400V outlets
• Warehouses and logistics hubs needing secure, splash‑resistant power points
• Semi‑outdoor or protected indoor environments with splash risk

FAQ

• What does 3P+N+E mean?
  It's a 5-pin configuration carrying all 3 phases, a neutral, and an earth — used for three-phase 400V power distribution to equipment that needs a neutral (as opposed to 3P+E, which has no neutral).
• What does the IP44 rating mean, and is this suitable outdoors?
  IP44 means it's protected against solid objects larger than 1mm and splashing water from any direction — suitable for outdoor use and damp site conditions, but not for full immersion or direct jetting/hosing down. Check the enclosure is fitted correctly (cover closed, gland sealed) to maintain the rating in practice.
• How is this socket mounted?
  Check the product title/Technical Specifications for the exact mounting style — flush-mount sockets are recessed into a panel or wall, surface-mount sockets are fixed to the wall/enclosure face, and interlocked sockets are typically panel-mounted with an integral isolating switch.
• Can I install this myself?
  No. This is a fixed socket outlet wired into a permanent electrical installation or distribution board, and should be installed and connected by a licensed electrician in accordance with UAE wiring regulations.
