Gewiss GW62482 Industrial Socket 16A 400V 5-Pin 3P+N+E IP44 — Angled Surface-Mount

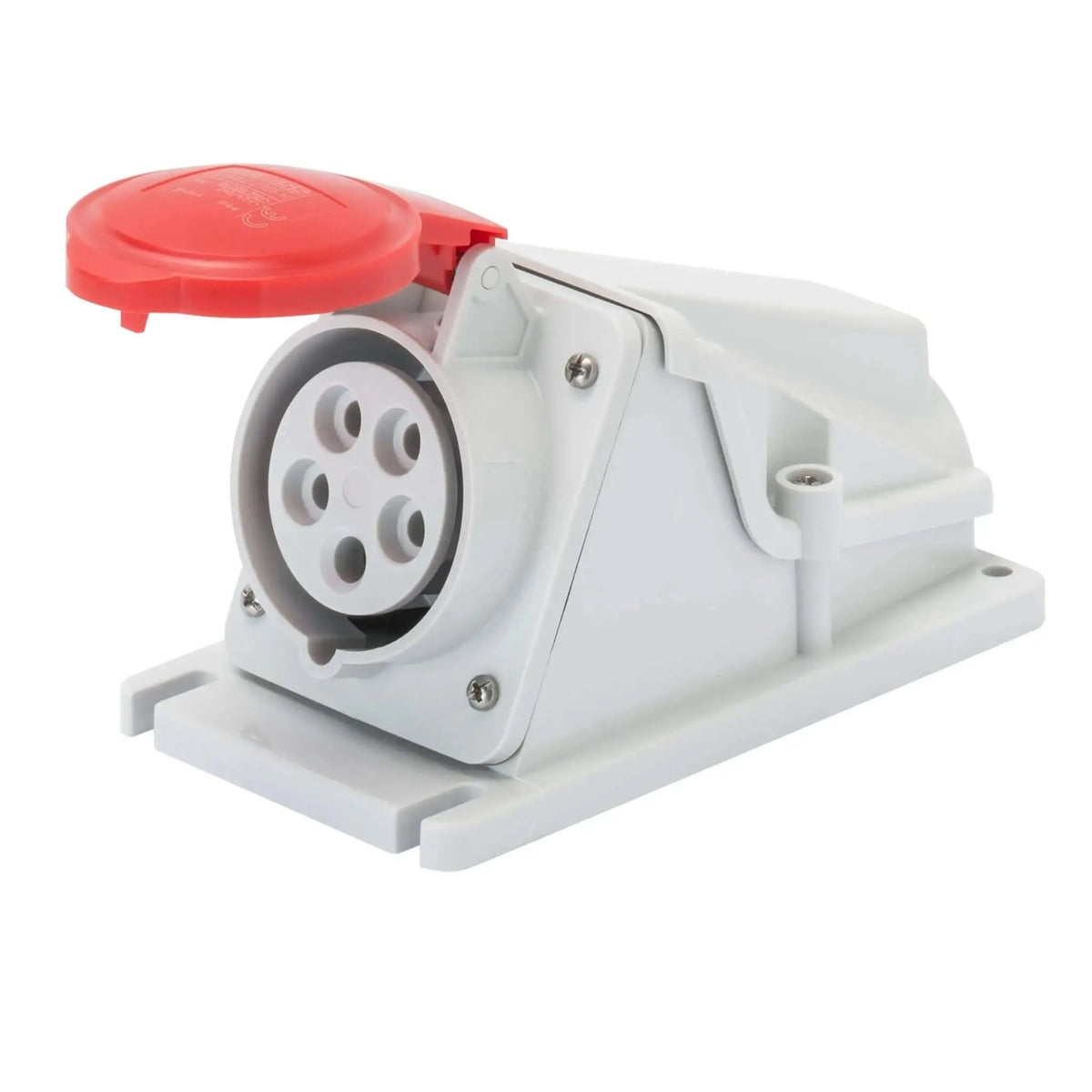

Gewiss GW62482 90° Angled Surface-Mount Socket Outlet, 16A 400V 5-Pin (3P+N+E), IP44 Red

The Gewiss GW62482 from the HP series is a rugged surface-mount socket designed for industrial power distribution. Its 90° angled body simplifies installation on walls or flat surfaces, while delivering a secure 5‑pin connection for three‑phase systems.

Key Features

• Current Rating: 16A
• Voltage: 400V (380–415V)
• Pin Configuration: 5-pin (3P+N+E)
• Protection Rating: IP44 (splash-proof)
• Design: 90° angled, surface-mount
• Material: Halogen-free technopolymer
• Color: Red
• Wiring: Screw-type terminals

Technical Specifications

Applications

• Industrial power distribution for 400V three-phase systems
• Wall or surface mounting in workshops, factories, and maintenance bays
• Permanent installations requiring a secure, splash-protected socket

FAQ

• What does 3P+N+E mean?
  It's a 5-pin configuration carrying all 3 phases, a neutral, and an earth — used for three-phase 400V power distribution to equipment that needs a neutral (as opposed to 3P+E, which has no neutral).
• What does the IP44 rating mean, and is this suitable outdoors?
  IP44 means it's protected against solid objects larger than 1mm and splashing water from any direction — suitable for outdoor use and damp site conditions, but not for full immersion or direct jetting/hosing down. Check the enclosure is fitted correctly (cover closed, gland sealed) to maintain the rating in practice.
• How is this socket mounted?
  Check the product title/Technical Specifications for the exact mounting style — flush-mount sockets are recessed into a panel or wall, surface-mount sockets are fixed to the wall/enclosure face, and interlocked sockets are typically panel-mounted with an integral isolating switch.
• Can I install this myself?
  No. This is a fixed socket outlet wired into a permanent electrical installation or distribution board, and should be installed and connected by a licensed electrician in accordance with UAE wiring regulations.
