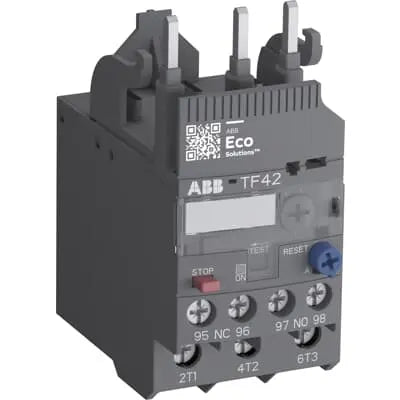

ABB TF42-29 Thermal Overload Relay 24 ... 29 A ABB
ABB TF42-29 Thermal Overload Relay 24 ... 29 A ABB

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB TF42-29 Thermal Overload Relay 24 ... 29 A

(0)
AED 134.00 inc. VAT
Out of stock
Fast UAE delivery & easy returns

Order before 12 PM for same-day dispatch. Delivered in 1–2 business days across the UAE, free on orders over AED 200 (AED 15 below). Unused items in sealed packaging can be returned within 7 days.

Free UAE delivery over AED 200
100% secure payments
Genuine branded products

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

ABB TF42-29 Thermal Overload Relay

The TF42-29 is a 24–29A thermal overload relay providing economic electromechanical protection for motor main circuits against overload and phase failure. Designed to mount directly onto compatible ABB AF-series contactors, it offers trip class 10 performance with temperature compensation, making it a dependable choice for motor control panels in UAE industrial and commercial installations.

Key Features

  • 24–29A adjustable setting range for accurate protection matched to motor full-load current
  • Trip class 10 with temperature-compensated bimetallic tripping for reliable performance across ambient conditions
  • Selectable automatic or manual reset with trip-free mechanism and clear trip indication
  • Integrated STOP function for straightforward manual isolation during maintenance
  • Genuine ABB quality — direct mounting compatibility with ABB AF09 through AF38 contactors

Technical Specifications

Specification Details
Brand ABB
Model TF42-29
Rated Operational Current (Ie) 29A
Setting Range 24-29A
Poles 3P
Trip Class 10
Rated Operational Voltage 690V AC / 600V DC
Auxiliary Contacts 1 NC + 1 NO
Degree of Protection IP20
Suitable For ABB AF09, AF12, AF16, AF26, AF30, AF38 Contactors
Ambient Operating Temperature -25°C to +60°C

Applications

  • Motor overload and phase failure protection in HVAC and pump control panels
  • Direct-on-line and star-delta motor starter assemblies in industrial facilities
  • Panel builds requiring compact, contactor-mounted thermal protection
  • Retrofit protection upgrades for existing ABB AF-series contactor installations

FAQ

  • What does this relay protect?
    It provides overload and phase-failure protection for the motor circuit it's fitted to, tripping the associated contactor if the current draw exceeds the set threshold for too long.
  • Does this mount directly onto a contactor?
    Check the Technical Specifications table for the specific compatible contactor range — many ABB thermal overload relays mount directly onto a matching contactor without separate wiring for the current path.
  • What is trip class 10?
    Trip class defines how long the relay allows an overload before tripping at a given multiple of the set current — class 10 is a standard general-purpose setting suited to most motor applications (as opposed to class 20/30 used for high-inertia loads with longer start times).
  • Can I install this myself?
    No. This is a motor control panel component and should be installed and set by a licensed electrician or panel builder.
