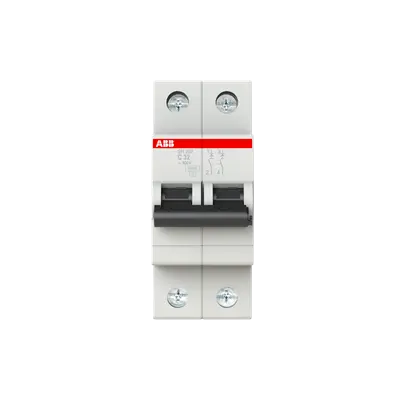

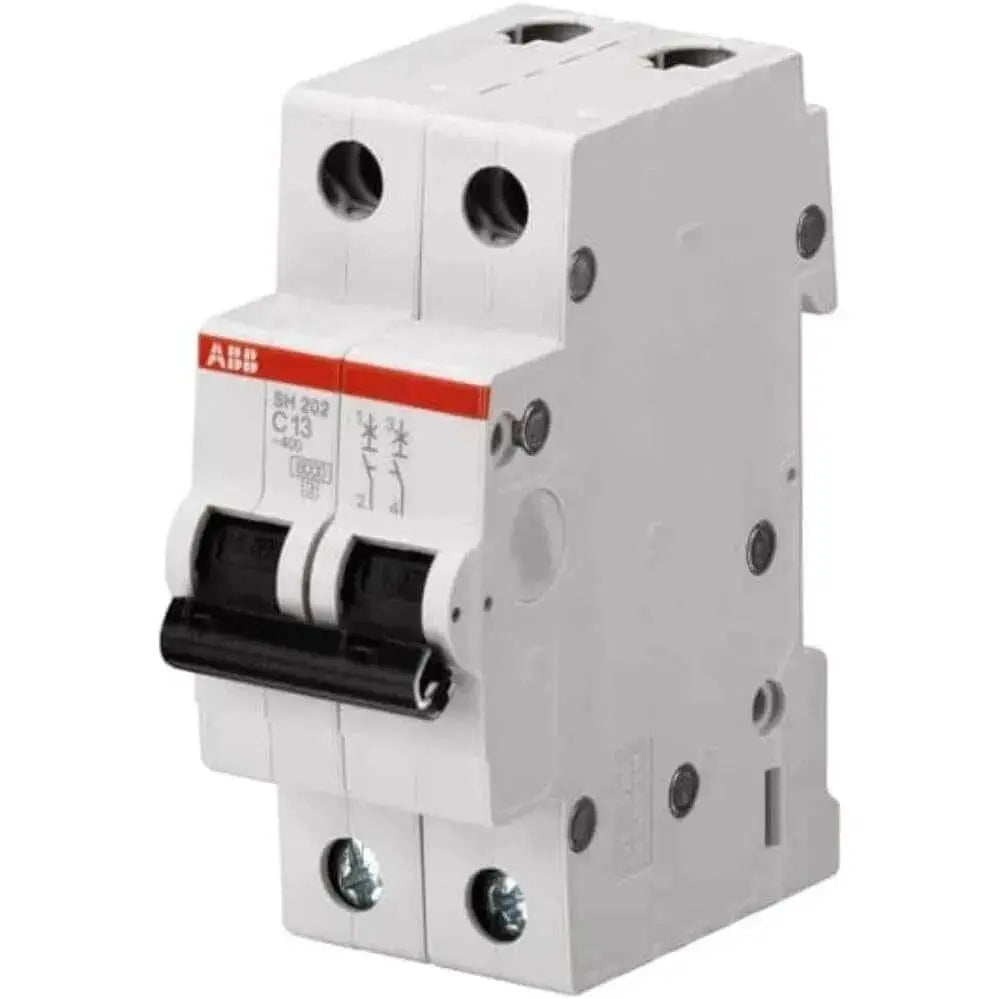

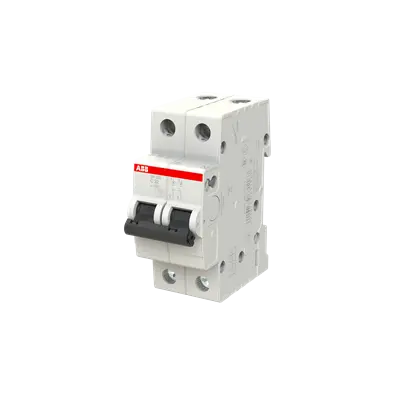

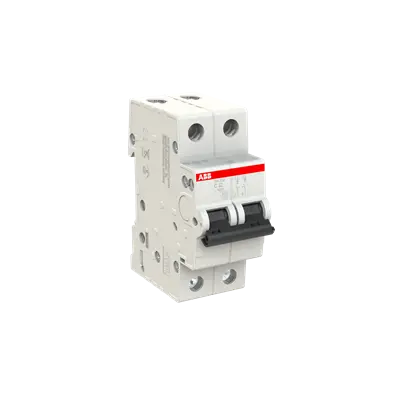

ABB SH202-C32 MCB 32A 2-Pole 6kA Type C

ABB Miniature Circuit Breaker 32A DP MCB C SH202-C32

The ABB 32A Double Pole Miniature Circuit Breaker (DP MCB) SH202-C32 delivers reliable overcurrent protection for UAE residential and light commercial panels. Compact, easy to install, and built to ABB standards for dependable performance.

Key Features

• Current rating: 32 A
• Double-pole configuration for line and neutral protection
• Tripping curve: C (standard general protection)
• Standard breaker type for straightforward replacements
• Durable ABB construction for long-term use
• Model/Part: SH202-C32 | Part Number: 2CDS212001R0324

Technical Specifications

Applications

• Residential distribution boards and consumer units
• Light commercial circuits requiring 32 A protection
• Retrofits and new installations in UAE panels

FAQ

• What's the difference between an MCB and an RCCB/RCD?
  An MCB (miniature circuit breaker) protects wiring and connected equipment against overload and short-circuit current. An RCCB/RCD protects against earth leakage by monitoring current imbalance. The two are complementary and are normally installed together in a distribution board.
• What does the Type C tripping curve mean?
  Type C trips at 5–10x rated current, giving enough headroom for motors, transformers, and ballast/LED-driver inrush without nuisance tripping.
• What does the 6kA breaking capacity mean?
  6kA is the maximum fault current this MCB can safely interrupt without damage. It should be equal to or higher than the prospective fault current at its installation point in the board.
• How many poles do I need?
  A 2-pole (2P) breaker switches both live and neutral together, giving full isolation on a single-phase circuit.
• Is this MCB compatible with other ABB DIN-rail distribution boards?
  Yes — it's a standard DIN-rail (EN 60715) mounted breaker and clips directly into ABB's modular consumer units and distribution boards alongside other ABB DIN-rail devices.
• Can I install this myself?
  No. This is a distribution board component and must be installed and connected by a licensed electrician in accordance with UAE wiring regulations — it is not a DIY consumer product.
