ABB

Abb SH201M-C32 Miniature Circuit Breaker 1P C 32A

(0)
AED 18.00 inc. VAT
In stock
Usually ships within 24 hours
Fast UAE delivery & easy returns

Order before 12 PM for same-day dispatch. Delivered in 1โ€“2 business days across the UAE, free on orders over AED 200 (AED 15 below). Unused items in sealed packaging can be returned within 7 days.

Free UAE delivery over AED 200
100% secure payments
Genuine branded products

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

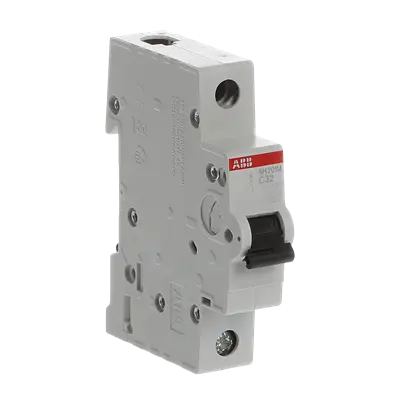

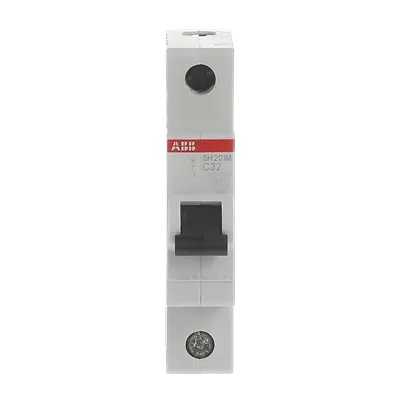

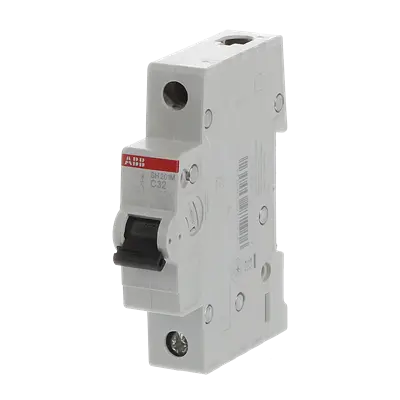

ABB SH201M-C32 1-Pole 32A Type C MCB

The ABB SH201M-C32 is a 1-pole 32A Type C miniature circuit breaker with 10kA breaking capacity from the ABB SH200M series. Built for higher fault-level applications than the standard SH200 range, it is well suited to power and small distribution circuits in UAE commercial and industrial buildings where a higher breaking capacity is required.

Key Features

  • 1-pole 32A Type C MCB for protection of power circuits with moderate inrush currents
  • 10kA breaking capacity, suitable for higher fault-level UAE commercial and industrial installations
  • Cage screw terminals with connecting capacity up to 25 mmยฒ, accommodating a wide range of conductor sizes
  • DIN rail mounting compatible with both TH35-15 and TH35-7.5 rails per IEC 60715, for flexible panel installation
  • Genuine ABB SH200M series quality โ€” consistent performance and reliability

Technical Specifications

Specification Details
Brand ABB
Model SH201M-C32
Rated Current 32A
Poles 1P
Tripping Characteristic Type C
Breaking Capacity 10kA (AC)
Rated Conditional Short-Circuit Current 25kA (230/400V)
Rated Operational Voltage 230 V AC (per IEC 60898-1)
Rated Insulation Voltage 440 V
Rated Frequency 50/60 Hz
Mounting DIN Rail (TH35-15 / TH35-7.5, acc. IEC 60715)
Terminal Type Screw Terminals (Cage)
Degree of Protection IP20 (IP40 with enclosure cover)
Mechanical Endurance 20,000 cycles
Electrical Endurance 10,000 AC cycles
Operating Temperature -25ยฐC to +55ยฐC
Width 17.5 mm (1 modular spacing)

Applications

  • Power circuit protection in commercial and industrial distribution boards
  • Distribution board upgrades requiring higher breaking capacity than standard residential MCBs
  • Sub-main and feeder circuit protection in FM-managed buildings across the UAE
  • Panel builder projects requiring 10kA-rated protection devices

FAQ

  • What's the difference between an MCB and an RCCB/RCD?
    An MCB (miniature circuit breaker) protects wiring and connected equipment against overload and short-circuit current. An RCCB/RCD protects against earth leakage by monitoring current imbalance. The two are complementary and are normally installed together in a distribution board.
  • How many poles do I need?
    A 1-pole (1P) breaker switches the line conductor only โ€” the standard choice for individual single-phase final circuits (lighting, sockets).
  • Is this MCB compatible with other ABB DIN-rail distribution boards?
    Yes โ€” it's a standard DIN-rail (EN 60715) mounted breaker and clips directly into ABB's modular consumer units and distribution boards alongside other ABB DIN-rail devices.
  • Can I install this myself?
    No. This is a distribution board component and must be installed and connected by a licensed electrician in accordance with UAE wiring regulations โ€” it is not a DIY consumer product.
