ABB

ABB MCB Miniature Circuit Breaker 32A 3P S203-C32

(0)
AED 65.00 inc. VAT
In stock
Usually ships within 24 hours
Fast UAE delivery & easy returns

Order before 12 PM for same-day dispatch. Delivered in 1–2 business days across the UAE, free on orders over AED 200 (AED 15 below). Unused items in sealed packaging can be returned within 7 days.

Free UAE delivery over AED 200
100% secure payments
Genuine branded products

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

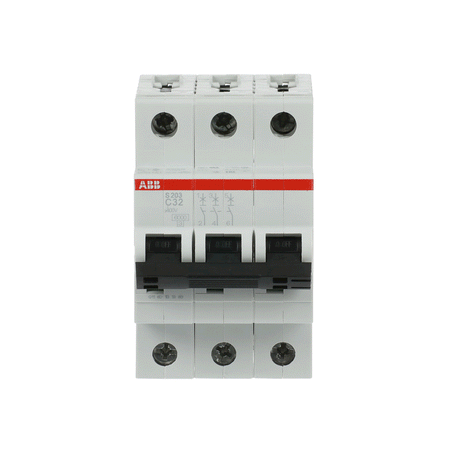

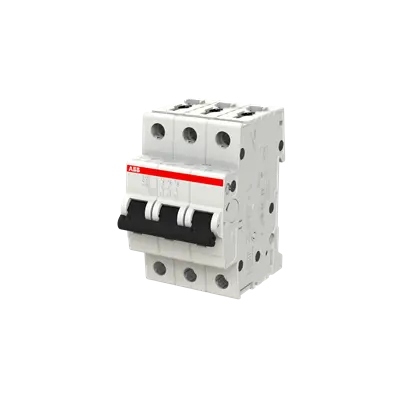

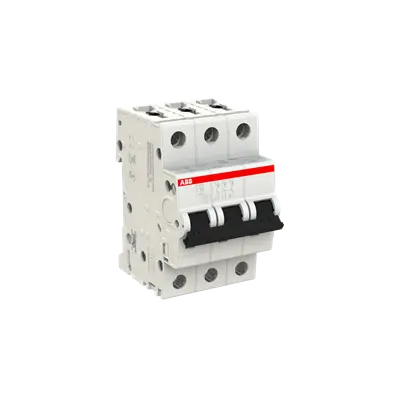

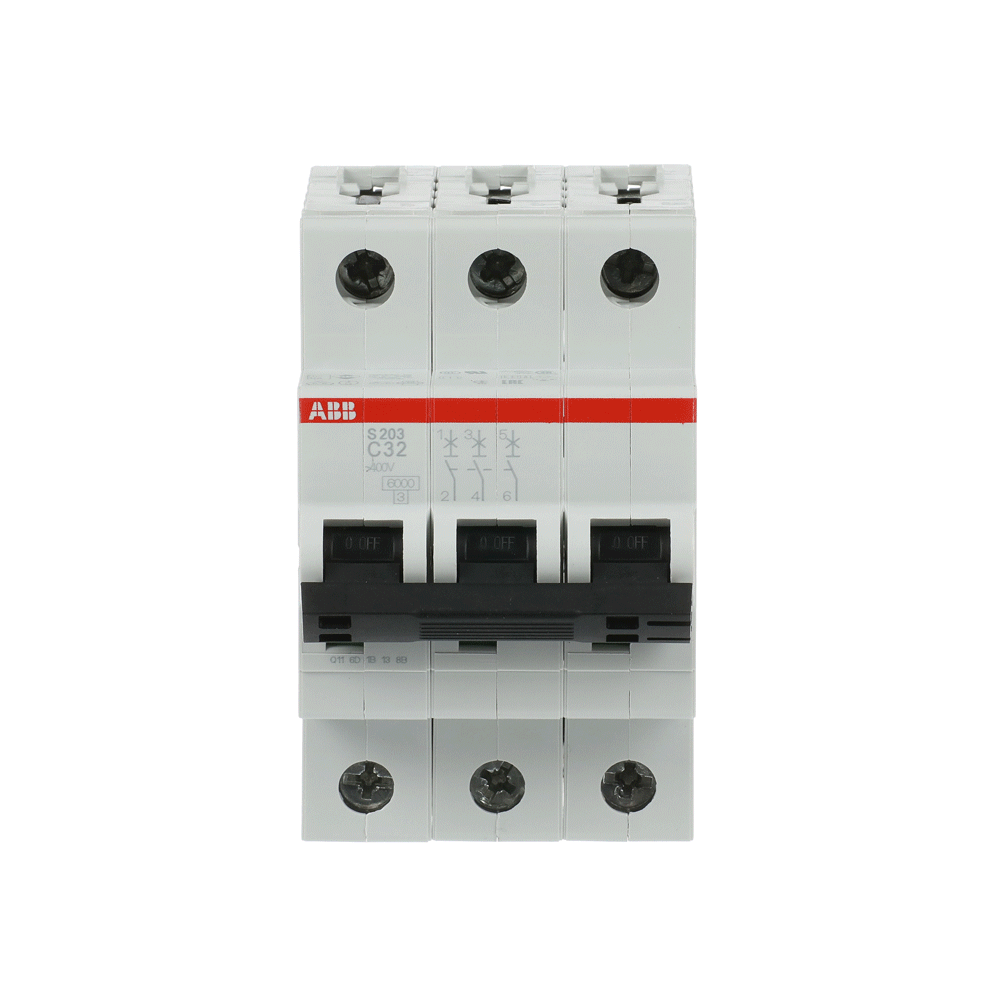

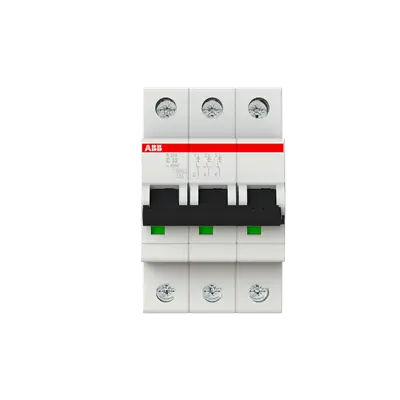

ABB S203-C32 3-Pole 32A 6kA Type C MCB

The ABB S203-C32 is a 3-pole, 32A Type C miniature circuit breaker with 6kA breaking capacity from the ABB System pro M compact S200 series. Combining a delayed thermal tripping mechanism for overload protection with an electromechanical mechanism for short circuit protection, it is current limiting and suited to three-phase circuit protection across residential, commercial and industrial UAE installations.

Key Features

  • 3-pole 32A Type C MCB for three-phase circuit protection in distribution boards
  • 6kA breaking capacity matching standard UAE commercial and industrial fault levels
  • Type C tripping characteristic suitable for resistive and lightly inductive loads
  • Bottom-fitting auxiliary contact compatibility, saving up to 50% panel space compared to side-mounted accessories
  • Genuine ABB S200 series quality — consistent performance and reliability

Technical Specifications

Specification Details
Brand ABB
Model S203-C32
Rated Current 32A
Poles 3
Tripping Characteristic Type C
Rated Short-Circuit Capacity 6kA (AC/DC)
Rated Ultimate Breaking Capacity (Icu) 20kA (230V) / 10kA (400V)
Rated Operational Voltage 400V AC (IEC 60898-1) / 440V AC (IEC 60947-2)
Rated Insulation Voltage (Ui) 440V
Mounting DIN Rail (TH35-15 / TH35-7.5)
Degree of Protection IP20 (IP40 with enclosure/cover)
Operating Temperature -25°C to +55°C
Mechanical Endurance 20,000 cycles
Net Weight 0.36 kg

Applications

  • Three-phase circuit protection in commercial and industrial distribution boards
  • Motor and power circuit protection in UAE building services installations
  • Distribution board upgrades and replacements for three-phase load protection
  • General building services circuit protection across residential, commercial and industrial UAE projects

FAQ

  • What's the difference between an MCB and an RCCB/RCD?
    An MCB (miniature circuit breaker) protects wiring and connected equipment against overload and short-circuit current. An RCCB/RCD protects against earth leakage by monitoring current imbalance. The two are complementary and are normally installed together in a distribution board.
  • How many poles do I need?
    A 3-pole (3P) breaker switches all three phases on a three-phase circuit without a switched neutral.
  • Is this MCB compatible with other ABB DIN-rail distribution boards?
    Yes — it's a standard DIN-rail (EN 60715) mounted breaker and clips directly into ABB's modular consumer units and distribution boards alongside other ABB DIN-rail devices.
  • Can I install this myself?
    No. This is a distribution board component and must be installed and connected by a licensed electrician in accordance with UAE wiring regulations — it is not a DIY consumer product.
