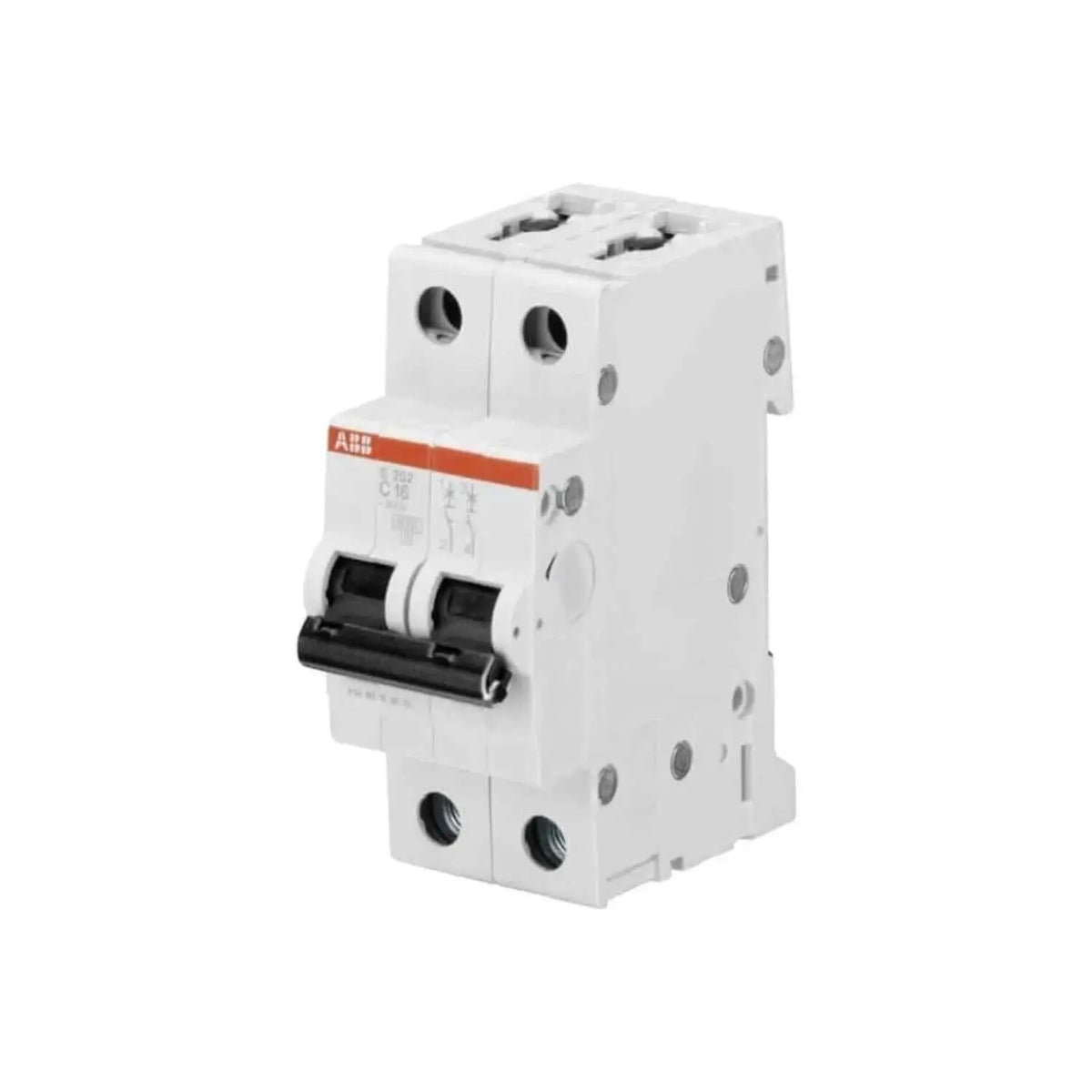

ABB S202-C32 miniature circuit breaker, 2P, C-curve, 32 A, white housing with orange ABB branding

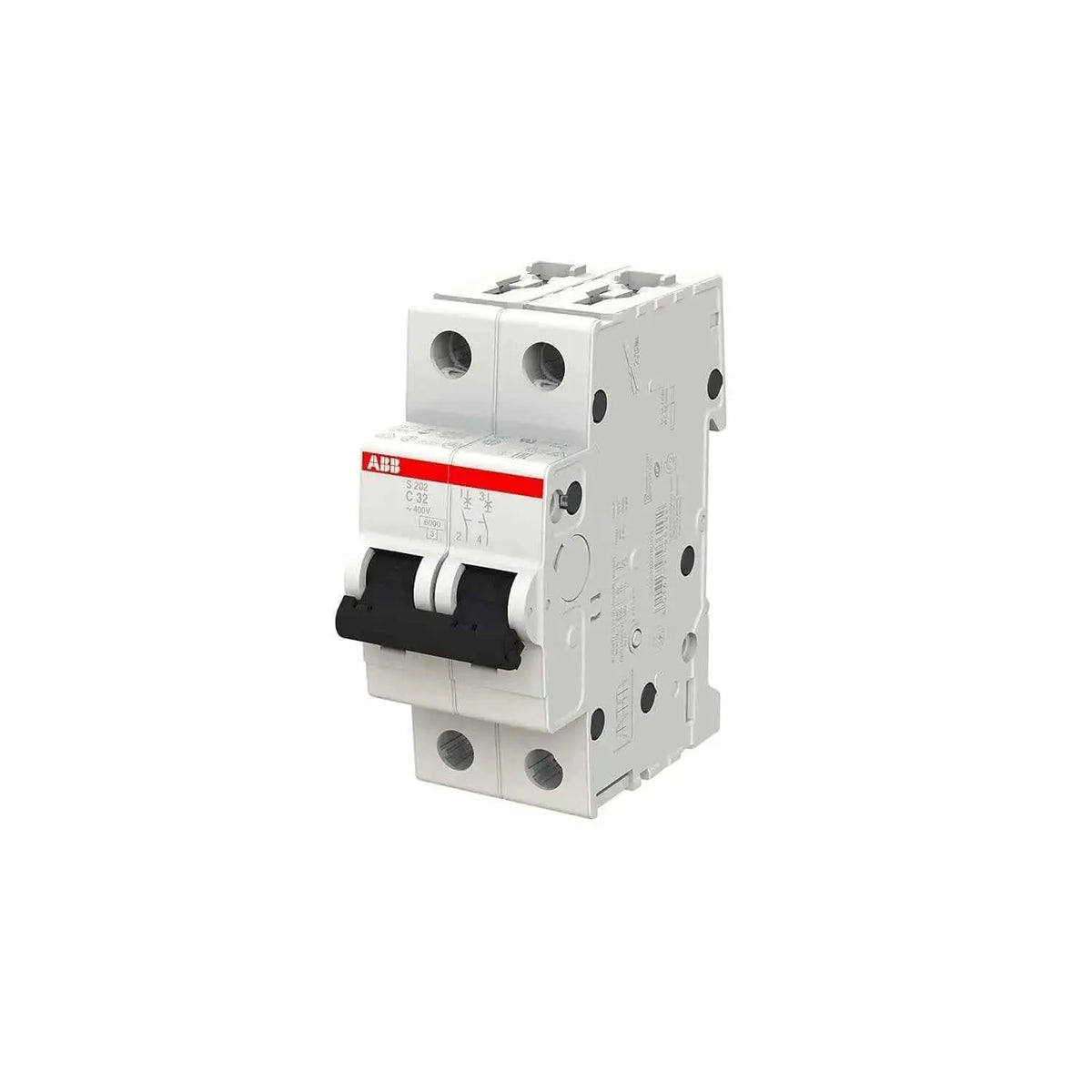

ABB S202-C32 miniature circuit breaker, white 2-pole MCB with red label and black toggle levers, 32 A

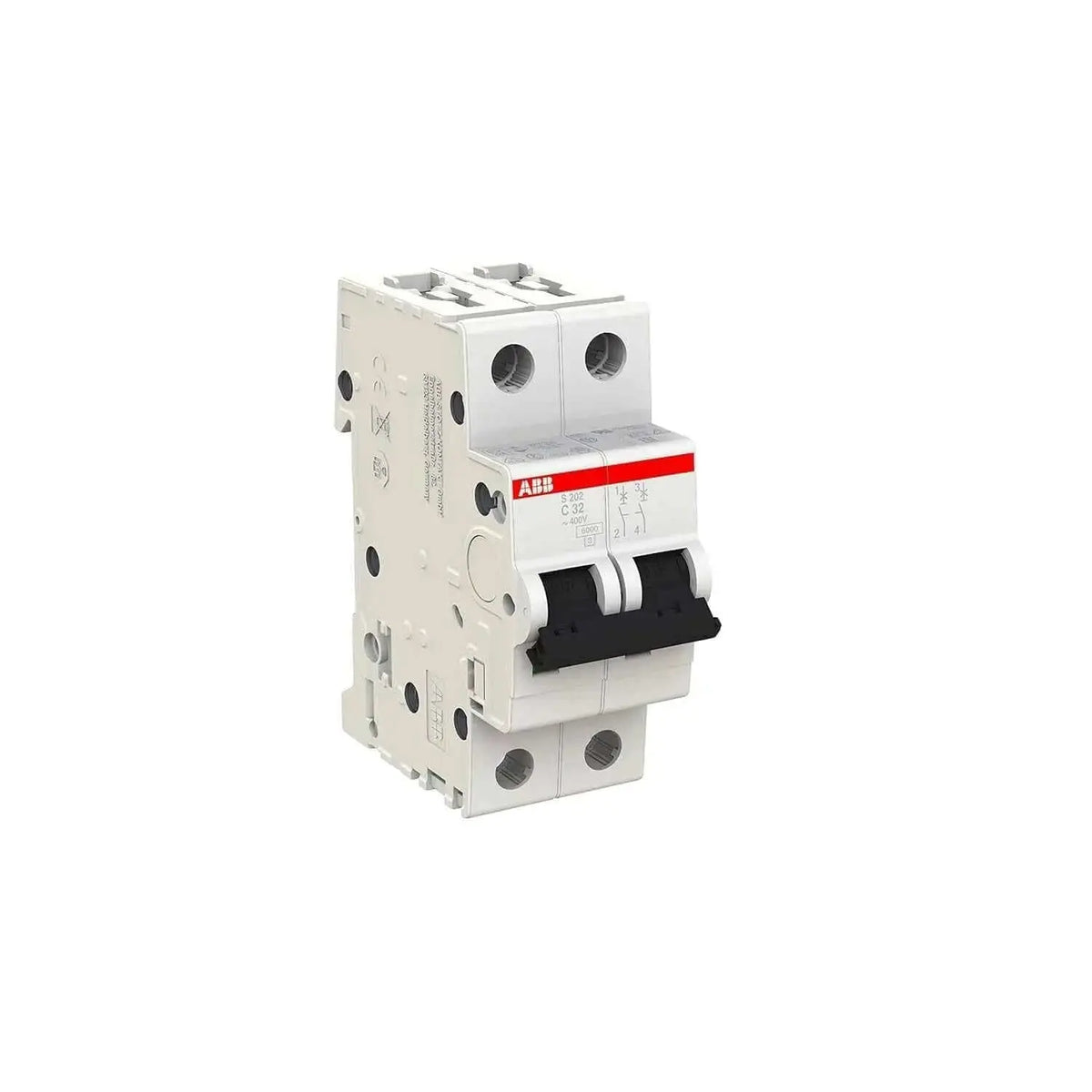

ABB S202-C32 2P miniature circuit breaker, white body with red branding, 32 A

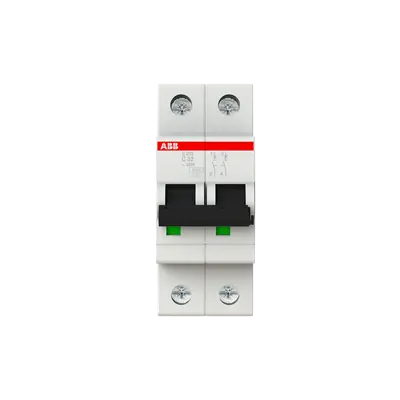

ABB S202-C32 MCB, 2-pole 32A Type C 6kA, official ABB product photo, additional angle
ABB S202-C32 miniature circuit breaker, 2P, C-curve, 32 A, white housing with orange ABB branding
ABB S202-C32 miniature circuit breaker, white 2-pole MCB with red label and black toggle levers, 32 A
ABB S202-C32 2P miniature circuit breaker, white body with red branding, 32 A
ABB S202-C32 MCB, 2-pole 32A Type C 6kA, official ABB product photo, additional angle

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB S202-C32 MCB 32A 2-Pole 6kA Type C

(0)
AED 52.00 inc. VAT
In stock
Usually ships within 24 hours
Fast UAE delivery & easy returns

Order before 12 PM for same-day dispatch. Delivered in 1โ€“2 business days across the UAE, free on orders over AED 200 (AED 15 below). Unused items in sealed packaging can be returned within 7 days.

Free UAE delivery over AED 200
100% secure payments
Genuine branded products

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

ABB S202-C32 Miniature Circuit Breaker delivers reliable twoโ€‘pole protection with current limiting, ideal for UAE electrical installations and modern distribution boards.

ABB S202-C32 Miniature Circuit Breaker โ€” 2P, C, 32 A

Key Features

  • Current Limiting for enhanced protection
  • Two Tripping Mechanisms: delayed thermal (overload) and electromechanical (short circuit)
  • Wide range of applications: screwless terminals, home panels, ring tongue wiring, UL and universal current, DC, marine, and railway environments
  • Global standards compliant for worldwide installations
  • Accessory compatibility for extended functions, including remote monitoring

Technical Specifications

Specification Detail
Brand ABB
Current Rating 32 Amps
Voltage 400 Volts
Circuit Breaker Type Standard
Number of Poles 2
Curve C
Current Limiting Yes

Applications

  • Residential and commercial distribution boards
  • Marine electrical systems
  • Railway and light industry installations
  • Direct current (DC) applications with appropriate accessories
  • Remote monitoring-enabled panels

FAQ

  • What's the difference between an MCB and an RCCB/RCD?
    An MCB (miniature circuit breaker) protects wiring and connected equipment against overload and short-circuit current. An RCCB/RCD protects against earth leakage by monitoring current imbalance. The two are complementary and are normally installed together in a distribution board.
  • What does the Type C tripping curve mean?
    Type C trips at 5โ€“10x rated current, giving enough headroom for motors, transformers, and ballast/LED-driver inrush without nuisance tripping.
  • What does the 6kA breaking capacity mean?
    6kA is the maximum fault current this MCB can safely interrupt without damage. It should be equal to or higher than the prospective fault current at its installation point in the board.
  • How many poles do I need?
    A 2-pole (2P) breaker switches both live and neutral together, giving full isolation on a single-phase circuit.
  • Is this MCB compatible with other ABB DIN-rail distribution boards?
    Yes โ€” it's a standard DIN-rail (EN 60715) mounted breaker and clips directly into ABB's modular consumer units and distribution boards alongside other ABB DIN-rail devices.
  • Can I install this myself?
    No. This is a distribution board component and must be installed and connected by a licensed electrician in accordance with UAE wiring regulations โ€” it is not a DIY consumer product.
