ABB OTP63T3M Safety switch 63A 3P ABB

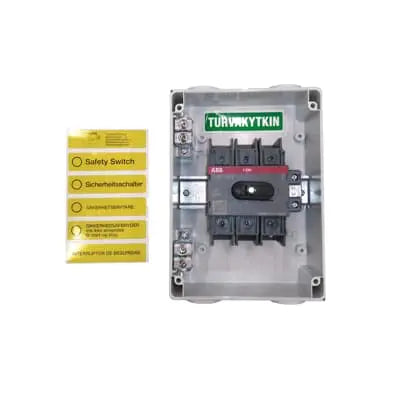

ABB OTP63T3M Safety Switch 63A 3P - official ABB product photo
ABB OTP63T3M Safety switch 63A 3P ABB
ABB OTP63T3M Safety Switch 63A 3P - official ABB product photo

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB OTP63T3M Safety switch 63A 3P

(0)
AED 263.00 inc. VAT
In stock
Usually ships within 24 hours
Fast UAE delivery & easy returns

Order before 12 PM for same-day dispatch. Delivered in 1โ€“2 business days across the UAE, free on orders over AED 200 (AED 15 below). Unused items in sealed packaging can be returned within 7 days.

Free UAE delivery over AED 200
100% secure payments
Genuine branded products

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

ABB OTP63T3M Enclosed Safety Switch

The OTP63T3M is a 3-pole enclosed safety switch rated at 63A, housed in a rigid glass-reinforced polycarbonate enclosure with IP65 protection. Fitted with a mounted auxiliary contact for remote status signaling, it is built for both indoor and outdoor use, offering reliable local isolation for machinery and distribution circuits across the UAE.

Key Features

  • 3-pole safety switch rated 63A (AC-22A) with fixed neutral and PE terminal for 5-wire system installations
  • Mounted auxiliary contact (1NO) included for remote status signaling and control interlocking
  • IP65-rated glass-reinforced polycarbonate enclosure, UV protected, suitable for outdoor and indoor mounting
  • Padlockable selector handle accommodating up to three padlocks, with defeatable interlocked cover for thermographic inspection
  • Genuine ABB quality โ€” impact-resistant housing rated IK08

Technical Specifications

Specification Details
Brand ABB
Model OTP63T3M
Number of Poles 3P
Rated Operational Current (Ie) AC-21A/AC-22A 63A (380โ€“690V)
Rated Operational Current (Ie) AC-23A 63A (380โ€“415V)
Rated Operational Voltage 750V (main circuit)
Rated Insulation Voltage (Ui) 750V
Rated Operational Power AC-23A (400V) 30kW
Rated Short-Circuit Making Capacity (Icm) 3.6kA at 690V
Rated Short-Time Withstand Current (Icw) 2.5kA for 1s
Mounted Auxiliary Contacts 1 NO, 0 NC
Degree of Protection IP65 (IEC 60529)
Impact Resistance IK08
Enclosure Material Glass-reinforced polycarbonate
Handle Type Selector, padlockable (up to 3 padlocks), black
Neutral Type Fixed neutral
Cable Cross-Section 10 โ€“ 70 mmยฒ
Cable Entry Position Top/Bottom, 2xM32+M16 per side
Terminal Type Screw terminals
Tightening Torque 6 Nยทm
Standards IEC 60947-1, IEC 60947-3
Net Weight 0.84 kg
Dimensions (W x H x D) 145 x 200 x 90 mm
Note Product nearing end-of-life; ABB replacement model is OTP63GT3M

Applications

  • Local isolation for HVAC units, pumps, and outdoor machinery requiring remote status feedback
  • Main isolation switch for external distribution boards exposed to UAE outdoor conditions
  • Safe isolation point for maintenance on rooftop and plant room equipment
  • Feeder isolation in FM-managed facilities requiring IP65-rated enclosures with auxiliary signaling

FAQ

  • Is this an MCB or an isolator?
    It's an isolator (switch-disconnector), not an MCB. It has no overload or short-circuit protection โ€” it only provides a manual on/off disconnect, and should be paired with separate MCBs or RCCBs for circuit protection.
  • What does 3-pole mean for this isolator?
    3-pole means it switches all three phases on a three-phase supply.
  • Where should this isolator be installed?
    Typically as the main incoming switch or a local isolation point ahead of the MCBs/RCCBs in a distribution board, so the whole board (or a section of it) can be isolated for maintenance without needing to trip individual breakers.
  • Can I install this myself?
    No. This is trade-only distribution board equipment and must be installed and connected by a licensed electrician in accordance with local wiring regulations.
  • Can this isolator be used to switch a live circuit under load?
    Isolators rated for on-load switching can do this within their utilisation category, but check the specific AC rating in the Technical Specifications table โ€” an isolator is not a protective device and should not substitute for a circuit breaker.
