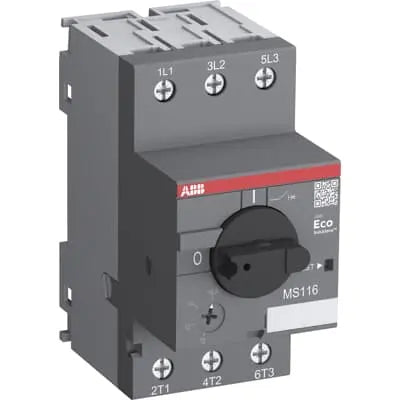

ABB MS116-4.0 Manual Motor Starter 2.5 ... 4.0 A ABB
ABB MS116-4.0 Manual Motor Starter 2.5 ... 4.0 A ABB

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB MS116-4.0 Manual Motor Starter 2.5 ... 4.0 A

(0)
AED 119.00 inc. VAT
In stock
Usually ships within 24 hours
Fast UAE delivery & easy returns

Order before 12 PM for same-day dispatch. Delivered in 1–2 business days across the UAE, free on orders over AED 200 (AED 15 below). Unused items in sealed packaging can be returned within 7 days.

Free UAE delivery over AED 200
100% secure payments
Genuine branded products

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

ABB MS116-4.0 Manual Motor Starter

The MS116-4.0 is a compact 45mm-wide manual motor starter from ABB, also known as a motor protection circuit breaker, with a rated operational current of 4.0A and an adjustable setting range of 2.5-4.0A. It provides manual on/off switching for motors along with fuseless protection against short-circuits, overload, and phase failure, making it a reliable choice for motor control panels in UAE commercial and industrial installations.

Key Features

  • Manual rotary handle with clear ON/OFF switch position indication for reliable motor switching
  • Fuseless protection against short-circuits, overload, and phase failure with trip class 10A
  • High rated service short-circuit breaking capacity of 50kA at 400V AC for demanding fault conditions
  • Built-in disconnect function, temperature compensation, and trip-free mechanism for safe, reliable operation
  • Genuine ABB quality — compatible with a wide range of accessories including auxiliary contacts, shunt trips, and undervoltage releases

Technical Specifications

Specification Details
Brand ABB
Model MS116-4.0
Type Manual Motor Starter / Motor Protection Circuit Breaker
Poles 3
Setting Range 2.5-4.0A
Rated Operational Current (Ie) 4A
Rated Operational Voltage 690V AC
Breaking Capacity (Ics) at 400V AC 50kA
Breaking Capacity (Icu) at 400V AC 75kA
Rated Operational Power (400V, 3-phase) 1.5kW
Degree of Protection IP20 (housing)
Mounting DIN Rail (TH35-15 / TH35-7.5)
Mechanical & Electrical Durability 100,000 cycles
Standards IEC/EN 60947-4-1, UL 60947-4-1

Applications

  • Manual switching and protection of small three-phase motors in industrial and commercial installations
  • Motor protection for HVAC fans, pumps, and conveyor drives across UAE facilities
  • Single-phase and three-phase motor control panels requiring fuseless overload protection
  • Compact motor starter installations in space-constrained control cabinets

FAQ

  • What does a manual motor starter do?
    It combines a manually-operated on/off switch with adjustable thermal overload protection for a single motor, in one compact DIN-rail device — suitable for smaller motors that don't need remote/automatic control.
  • How do I set the overload trip current?
    The adjustable dial is set to the motor's rated full-load current (from the motor's nameplate) so the starter trips on a genuine overload rather than nuisance-tripping on normal running current.
  • Can this be converted for remote/automatic control?
    Some ABB manual motor starters accept an add-on contactor module for remote switching — check the specific model's accessory range if automatic control is needed later.
  • Can I install this myself?
    No. Motor starters are wired into live motor circuits and should be installed by a licensed electrician.
