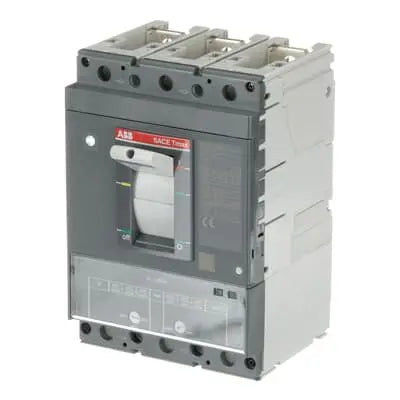

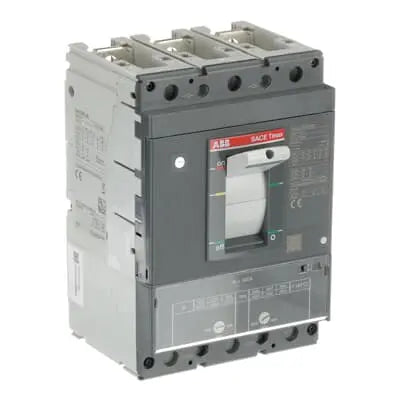

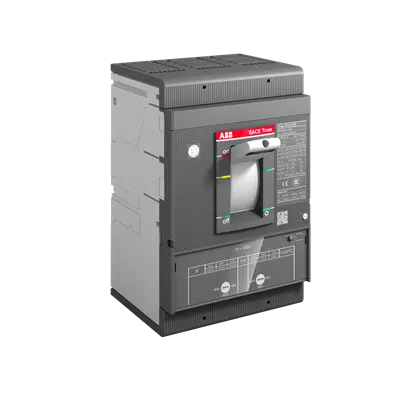

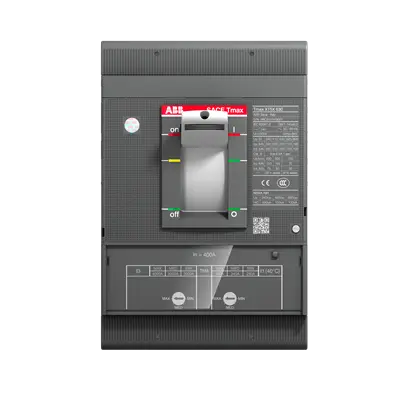

ABB MCCB XT5N 400 TMA 320-3200 3-Pole
The ABB XT5N 400 TMA 320-3200 3P is a 3-pole MCCB from the Tmax XT5 series with a 320–3200A TMA trip unit and 36kA breaking capacity. Designed for main incoming and primary distribution protection in UAE large industrial facilities, data centres, and commercial building switchgear requiring premium high-current MCCB performance.
Key Features
- 3-pole MCCB with 320–3200A adjustable TMA trip
- 36kA breaking capacity at 415V
- High-current main incoming and primary distribution protection
- Robust Tmax XT5 construction for demanding applications
- Genuine ABB Tmax XT5N quality
Technical Specifications
| Specification |
Details |
| Brand |
ABB |
| Model |
XT5N 400 TMA 320-3200 3p F F |
| Article Number |
1SDA100344R1 |
| Poles |
3 |
| Trip Unit |
TMA 320–3200A |
| Breaking Capacity |
36kA @ 415V |
Applications
- Main incoming protection for large industrial and commercial buildings
- Primary distribution and switchgear incoming
- Industrial MCC and large process plant protection
- Data centre and critical infrastructure main protection
FAQ
-
What's the difference between an MCB and an MCCB?
An MCB (miniature circuit breaker) is typically rated up to 100A with a fixed, non-adjustable trip and lower breaking capacity, used for final circuits. An MCCB (moulded case circuit breaker) is built for higher currents and fault levels, and is used for main incomers, sub-mains, and feeder protection where an MCB's rating or breaking capacity would be insufficient.
-
When do I need an MCCB instead of an MCB?
Use an MCCB where the prospective fault current or load current exceeds what an MCB is rated to handle safely — typically at the main incomer or major sub-main level of a commercial or industrial distribution board.
-
How many poles do I need?
This is a 3-pole device, sized for the corresponding single or three-phase supply arrangement.
-
Does this MCCB have an adjustable trip setting?
Check the specific trip unit type in the Technical Specifications table above — thermal-magnetic MCCBs may have a fixed or adjustable trip range depending on the model; an electronic trip unit typically offers configurable protection curves.
-
Can I install this myself?
No. MCCBs are installed in distribution boards and panels by a licensed electrician, in line with UAE wiring regulations.
