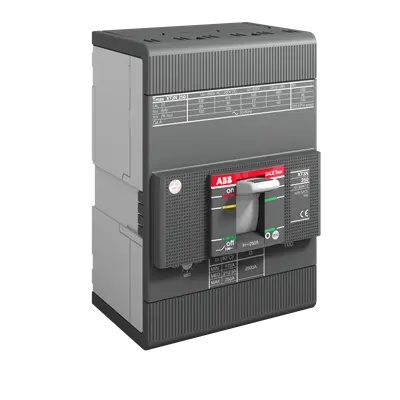

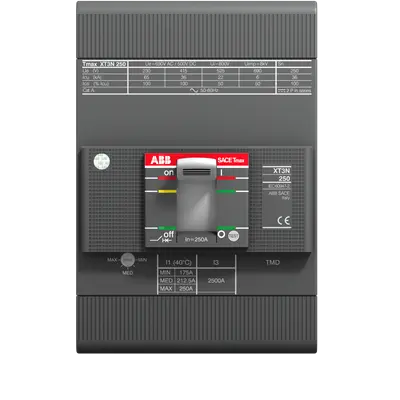

ABB MCCB XT3N 250 TMD 200-2000 3-Pole 50°C
The ABB XT3N 250 TMD 200-2000 3P is a 3-pole MCCB from the Tmax XT3 series with a high-range 200–2000A adjustable TMD trip and 36kA breaking capacity at 415V, rated at 50°C. It is designed for main incoming and heavy-duty feeder protection in UAE large commercial and industrial switchgear.
Key Features
- 3-pole MCCB with 200–2000A adjustable TMD trip
- 36kA breaking capacity at 415V
- 50°C rated for UAE high-ambient environments
- Fixed front mounting
- Genuine ABB Tmax XT3N quality
Technical Specifications
| Specification |
Details |
| Brand |
ABB |
| Model |
XT3N 250 TMD 200-2000 3p F F 50C |
| Article Number |
1SDA070162R1 |
| Poles |
3 |
| Trip Unit |
TMD 200–2000A |
| Breaking Capacity |
36kA @ 415V |
| Ambient Rating |
50°C |
Applications
- Main incoming protection in large industrial and commercial switchgear
- Heavy feeder and distribution circuit protection
- Large industrial plant and facility MCCs
- Data centre and critical infrastructure panel protection
FAQ
-
What's the difference between an MCB and an MCCB?
An MCB (miniature circuit breaker) is typically rated up to 100A with a fixed, non-adjustable trip and lower breaking capacity, used for final circuits. An MCCB (moulded case circuit breaker) is built for higher currents and fault levels, and is used for main incomers, sub-mains, and feeder protection where an MCB's rating or breaking capacity would be insufficient.
-
When do I need an MCCB instead of an MCB?
Use an MCCB where the prospective fault current or load current exceeds what an MCB is rated to handle safely — typically at the main incomer or major sub-main level of a commercial or industrial distribution board.
-
How many poles do I need?
This is a 3-pole device, sized for the corresponding single or three-phase supply arrangement.
-
Does this MCCB have an adjustable trip setting?
Check the specific trip unit type in the Technical Specifications table above — thermal-magnetic MCCBs may have a fixed or adjustable trip range depending on the model; an electronic trip unit typically offers configurable protection curves.
-
Can I install this myself?
No. MCCBs are installed in distribution boards and panels by a licensed electrician, in line with UAE wiring regulations.
