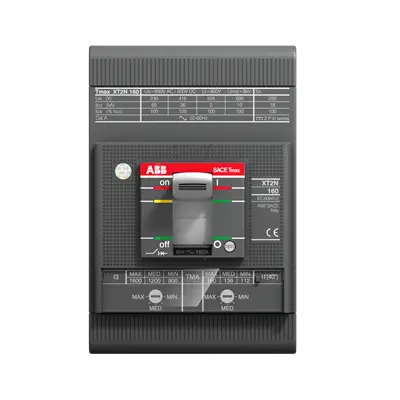

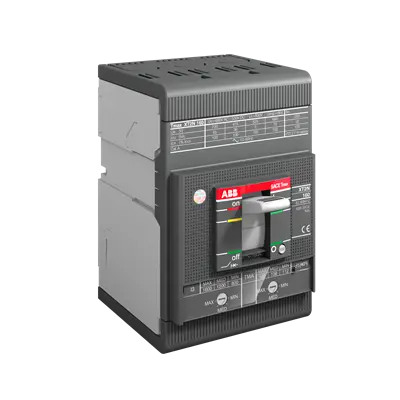

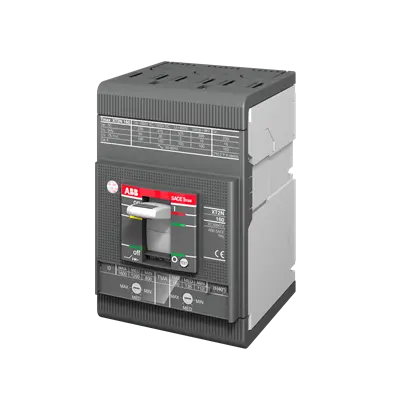

ABB MCCB XT2S 160 TMD 63-630 3-Pole 50°C
The ABB XT2S 160 TMD 63-630 3P is a 3-pole MCCB with a 63–630A TMD trip unit and 36kA breaking capacity at 415V, rated at 50°C. Suited for high-current sub-main feeder and incoming circuit protection in UAE high-ambient industrial and commercial switchgear panels.
Key Features
- 3-pole MCCB with 63–630A adjustable TMD trip
- 36kA breaking capacity at 415V
- 50°C ambient rating for UAE high-temperature environments
- Fixed front mounting
- Genuine ABB Tmax XT2S quality
Technical Specifications
| Specification |
Details |
| Brand |
ABB |
| Model |
XT2S 160 TMD 63-630 3p F F 50C |
| Article Number |
1SDA070143R1 |
| Poles |
3 |
| Trip Unit |
TMD 63–630A |
| Breaking Capacity |
36kA @ 415V |
| Ambient Rating |
50°C |
Applications
- High-current three-phase incoming and feeder protection
- Industrial MCC and large switchgear applications
- Commercial building main MCCB protection
- High fault-level sub-main distribution protection
FAQ
-
What's the difference between an MCB and an MCCB?
An MCB (miniature circuit breaker) is typically rated up to 100A with a fixed, non-adjustable trip and lower breaking capacity, used for final circuits. An MCCB (moulded case circuit breaker) is built for higher currents and fault levels, and is used for main incomers, sub-mains, and feeder protection where an MCB's rating or breaking capacity would be insufficient.
-
When do I need an MCCB instead of an MCB?
Use an MCCB where the prospective fault current or load current exceeds what an MCB is rated to handle safely — typically at the main incomer or major sub-main level of a commercial or industrial distribution board.
-
How many poles do I need?
This is a 3-pole device, sized for the corresponding single or three-phase supply arrangement.
-
Does this MCCB have an adjustable trip setting?
Check the specific trip unit type in the Technical Specifications table above — thermal-magnetic MCCBs may have a fixed or adjustable trip range depending on the model; an electronic trip unit typically offers configurable protection curves.
-
Can I install this myself?
No. MCCBs are installed in distribution boards and panels by a licensed electrician, in line with UAE wiring regulations.
