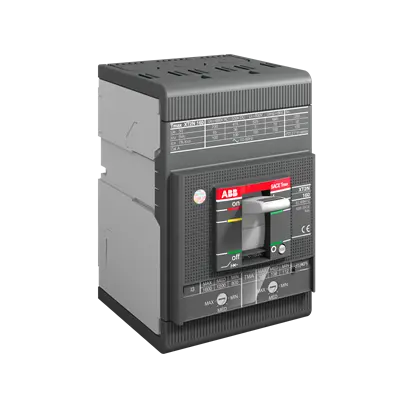

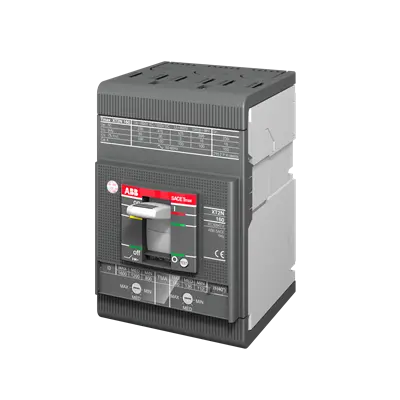

ABB MCCB XT2S 160 TMD 40-400 3-Pole 50°C
The ABB XT2S 160 TMD 40-400 3P is a 3-pole MCCB with a 40–400A adjustable TMD trip and 36kA breaking capacity at 415V, rated for 50°C ambient conditions. It delivers reliable circuit protection for UAE high-ambient industrial and commercial switchgear, sub-main feeders, and motor circuit applications.
Key Features
- 3-pole MCCB with 40–400A adjustable TMD trip
- 36kA breaking capacity at 415V
- 50°C ambient temperature rating for UAE conditions
- Fixed front mounting
- Genuine ABB Tmax XT2S quality
Technical Specifications
| Specification |
Details |
| Brand |
ABB |
| Model |
XT2S 160 TMD 40-400 3p F F 50C |
| Article Number |
1SDA070141R1 |
| Poles |
3 |
| Trip Unit |
TMD 40–400A |
| Breaking Capacity |
36kA @ 415V |
| Ambient Rating |
50°C |
Applications
- Three-phase sub-main feeder MCCB protection
- Industrial motor circuit and MCC protection
- Commercial building high fault-level panels
- High-ambient UAE industrial switchgear
FAQ
-
What's the difference between an MCB and an MCCB?
An MCB (miniature circuit breaker) is typically rated up to 100A with a fixed, non-adjustable trip and lower breaking capacity, used for final circuits. An MCCB (moulded case circuit breaker) is built for higher currents and fault levels, and is used for main incomers, sub-mains, and feeder protection where an MCB's rating or breaking capacity would be insufficient.
-
When do I need an MCCB instead of an MCB?
Use an MCCB where the prospective fault current or load current exceeds what an MCB is rated to handle safely — typically at the main incomer or major sub-main level of a commercial or industrial distribution board.
-
How many poles do I need?
This is a 3-pole device, sized for the corresponding single or three-phase supply arrangement.
-
Does this MCCB have an adjustable trip setting?
Check the specific trip unit type in the Technical Specifications table above — thermal-magnetic MCCBs may have a fixed or adjustable trip range depending on the model; an electronic trip unit typically offers configurable protection curves.
-
Can I install this myself?
No. MCCBs are installed in distribution boards and panels by a licensed electrician, in line with UAE wiring regulations.
