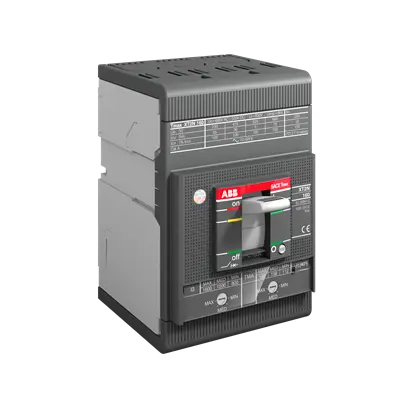

ABB MCCB XT2S 160 TMD 25-300 3-Pole 50°C
The ABB XT2S 160 TMD 25-300 3P is a 3-pole MCCB rated at 50°C ambient with a 25–300A adjustable TMD trip and 36kA breaking capacity. It provides reliable protection for UAE industrial and commercial panels where high-ambient temperature conditions and high fault current levels are present.
Key Features
- 3-pole MCCB with 25–300A adjustable TMD trip
- 36kA breaking capacity at 415V, rated at 50°C
- Suitable for high-ambient temperature UAE panels
- Fixed front mounting
- Genuine ABB Tmax XT2S quality
Technical Specifications
| Specification |
Details |
| Brand |
ABB |
| Model |
XT2S 160 TMD 25-300 3p F F 50C |
| Article Number |
1SDA070139R1 |
| Poles |
3 |
| Trip Unit |
TMD 25–300A |
| Breaking Capacity |
36kA @ 415V |
| Ambient Rating |
50°C |
Applications
- Industrial high-ambient MCCB protection
- Sub-main circuit protection in commercial buildings
- MCC and switchgear distribution panels
- Process plant and industrial facility protection
FAQ
-
What's the difference between an MCB and an MCCB?
An MCB (miniature circuit breaker) is typically rated up to 100A with a fixed, non-adjustable trip and lower breaking capacity, used for final circuits. An MCCB (moulded case circuit breaker) is built for higher currents and fault levels, and is used for main incomers, sub-mains, and feeder protection where an MCB's rating or breaking capacity would be insufficient.
-
When do I need an MCCB instead of an MCB?
Use an MCCB where the prospective fault current or load current exceeds what an MCB is rated to handle safely — typically at the main incomer or major sub-main level of a commercial or industrial distribution board.
-
How many poles do I need?
This is a 3-pole device, sized for the corresponding single or three-phase supply arrangement.
-
Does this MCCB have an adjustable trip setting?
Check the specific trip unit type in the Technical Specifications table above — thermal-magnetic MCCBs may have a fixed or adjustable trip range depending on the model; an electronic trip unit typically offers configurable protection curves.
-
Can I install this myself?
No. MCCBs are installed in distribution boards and panels by a licensed electrician, in line with UAE wiring regulations.
