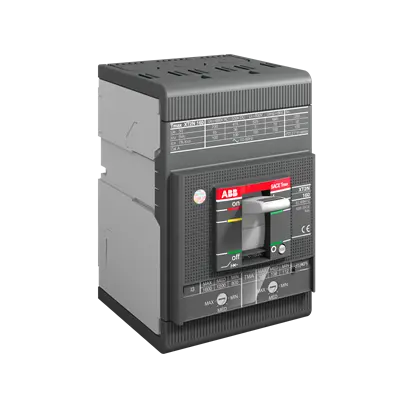

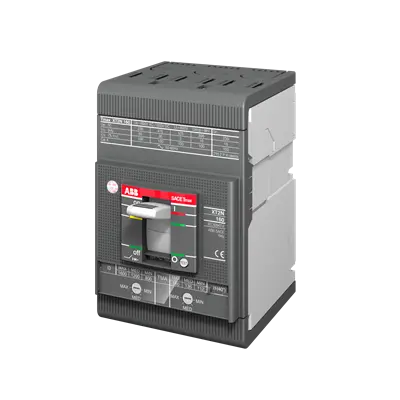

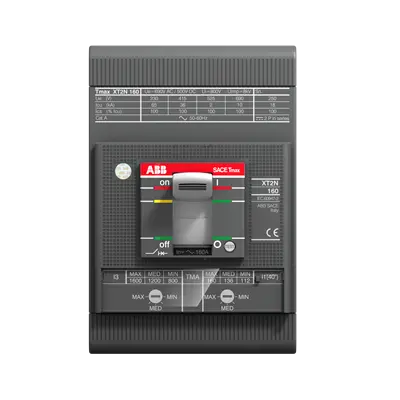

ABB MCCB XT2S 160 TMD 20-300 3-Pole 50°C
The ABB XT2S 160 TMD 20-300 3P is a 3-pole MCCB from the Tmax XT2S series with a 20–300A adjustable TMD trip unit rated at 50°C for UAE high-ambient installations. Its 36kA breaking capacity at 415V provides robust protection for sub-main feeders and motor circuits in demanding industrial environments.
Key Features
- 3-pole MCCB with 20–300A adjustable TMD trip
- 36kA breaking capacity at 415V AC
- Rated at 50°C for high-ambient UAE installations
- Fixed front mounting
- Genuine ABB Tmax XT2S quality
Technical Specifications
| Specification |
Details |
| Brand |
ABB |
| Model |
XT2S 160 TMD 20-300 3p F F 50C |
| Article Number |
1SDA070138R1 |
| Poles |
3 |
| Trip Unit |
TMD 20–300A |
| Breaking Capacity |
36kA @ 415V |
| Ambient Rating |
50°C |
Applications
- Sub-main feeder protection in high-ambient UAE panels
- Industrial MCC and motor circuit protection
- Commercial building sub-main MCCB protection
- High breaking capacity distribution switchgear
FAQ
-
What's the difference between an MCB and an MCCB?
An MCB (miniature circuit breaker) is typically rated up to 100A with a fixed, non-adjustable trip and lower breaking capacity, used for final circuits. An MCCB (moulded case circuit breaker) is built for higher currents and fault levels, and is used for main incomers, sub-mains, and feeder protection where an MCB's rating or breaking capacity would be insufficient.
-
When do I need an MCCB instead of an MCB?
Use an MCCB where the prospective fault current or load current exceeds what an MCB is rated to handle safely — typically at the main incomer or major sub-main level of a commercial or industrial distribution board.
-
How many poles do I need?
This is a 3-pole device, sized for the corresponding single or three-phase supply arrangement.
-
Does this MCCB have an adjustable trip setting?
Check the specific trip unit type in the Technical Specifications table above — thermal-magnetic MCCBs may have a fixed or adjustable trip range depending on the model; an electronic trip unit typically offers configurable protection curves.
-
Can I install this myself?
No. MCCBs are installed in distribution boards and panels by a licensed electrician, in line with UAE wiring regulations.
