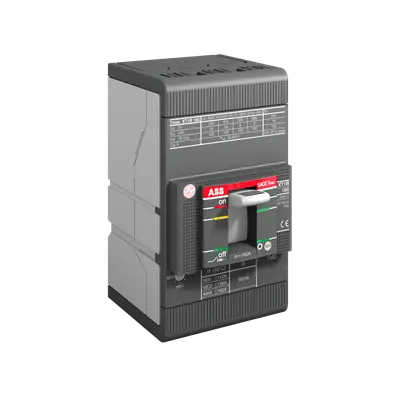

ABB MCCB XT1C 160 TMD 80-800 3-Pole
The ABB MCCB XT1C 160 TMD 80-800 3P is a 3-pole MCCB from the Tmax XT1 series with an 80–800A adjustable TMD trip unit and 25kA breaking capacity at 415V. It provides reliable overcurrent and short-circuit protection for sub-main feeders and large power circuits in UAE commercial and industrial installations.
Key Features
- 3-pole MCCB with adjustable TMD trip unit 80–800A
- 25kA breaking capacity at 415V AC
- Fixed front mounting for panel and switchgear installation
- Compact Tmax XT1 design
- Genuine ABB Tmax XT quality
Technical Specifications
| Specification |
Details |
| Brand |
ABB |
| Model |
XT1C 160 TMD 80-800 3p F F |
| Article Number |
1SDA067396R1 |
| Poles |
3 |
| Trip Unit |
TMD 80–800A |
| Breaking Capacity |
25kA @ 415V |
| Voltage |
415V AC |
Applications
- Three-phase sub-main feeder protection
- Commercial and industrial distribution board incoming
- MCC and switchgear circuit protection
- High-current circuit protection in large buildings
