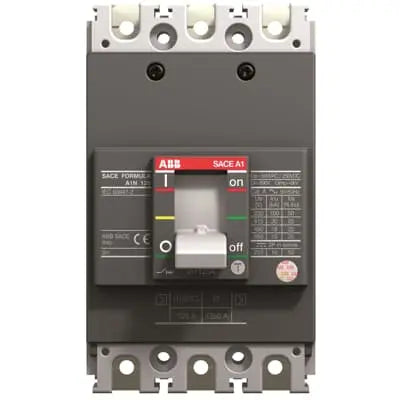

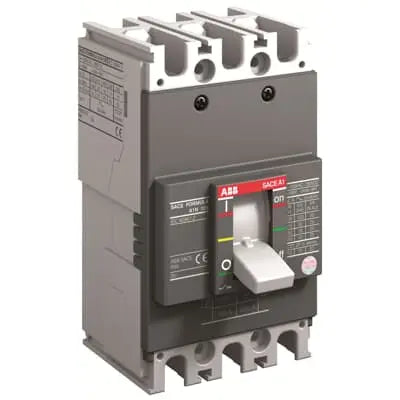

ABB MCCB A1C 125 TMF 40-400 3-Pole
The ABB A1C 125 TMF 40-400 3P is a 3-pole MCCB from the ABB Formula A1 series with an adjustable thermal-magnetic trip unit. Providing reliable three-phase circuit protection with high breaking capacity, it is used in UAE commercial and industrial panels for sub-main feeder and incoming circuit protection.
Key Features
- 3-pole MCCB with adjustable TMF trip unit 40–400A
- High breaking capacity for industrial switchgear applications
- Fixed front operation with trip indication
- Compact design for panel space efficiency
- Genuine ABB Formula A1 MCCB quality
Technical Specifications
| Specification |
Details |
| Brand |
ABB |
| Model |
A1C 125 TMF 40-400 3p F F |
| Article Number |
1SDA066713R1 |
| Poles |
3 |
| Trip Unit |
TMF 40–400A (adjustable) |
| Voltage |
415V AC |
Applications
- Three-phase sub-main feeder circuit protection
- Industrial switchgear and panel incoming protection
- Commercial building MCC and distribution applications
- High fault-level three-phase circuit protection
FAQ
-
What's the difference between an MCB and an MCCB?
An MCB (miniature circuit breaker) is typically rated up to 100A with a fixed, non-adjustable trip and lower breaking capacity, used for final circuits. An MCCB (moulded case circuit breaker) is built for higher currents and fault levels, and is used for main incomers, sub-mains, and feeder protection where an MCB's rating or breaking capacity would be insufficient.
-
When do I need an MCCB instead of an MCB?
Use an MCCB where the prospective fault current or load current exceeds what an MCB is rated to handle safely — typically at the main incomer or major sub-main level of a commercial or industrial distribution board.
-
How many poles do I need?
This is a 3-pole device, sized for the corresponding single or three-phase supply arrangement.
-
Does this MCCB have an adjustable trip setting?
Check the specific trip unit type in the Technical Specifications table above — thermal-magnetic MCCBs may have a fixed or adjustable trip range depending on the model; an electronic trip unit typically offers configurable protection curves.
-
Can I install this myself?
No. MCCBs are installed in distribution boards and panels by a licensed electrician, in line with UAE wiring regulations.
