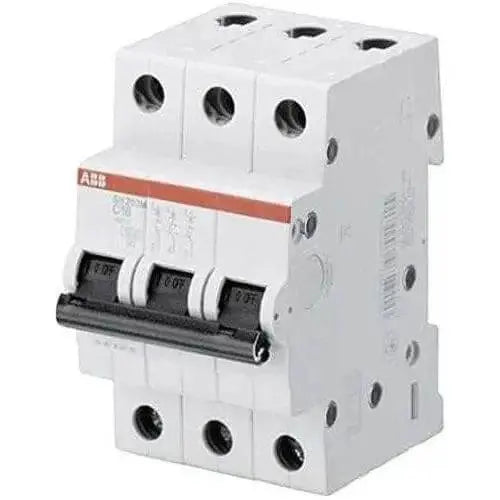

ABB SH203M-C32 MCB 32A 3-Pole 10kA Type C

ABB SH203M-C32 3-Pole Miniature Circuit Breaker, 32 A, 10 kA

ABB SH203M-C32 three-pole MCB for safe, reliable overcurrent protection in residential and light commercial installations. With a 32 A rating and 10 kA breaking capacity, it delivers dependable performance and easy panel integration for UAE projects.

Key Features

• Three-pole configuration for multi-phase protection
• Rated current: 32 A
• Short-circuit breaking capacity: 10 kA
• Standard circuit breaker type for versatile use
• Brand: ABB; model SH203M-C32

Technical Specifications

Applications

• Residential distribution boards and lighting circuits
• Small to medium commercial installations requiring reliable overcurrent protection
• Temporary or permanent electrical panels where quick, safe disconnection is needed

FAQ

• What's the difference between an MCB and an RCCB/RCD?
  An MCB (miniature circuit breaker) protects wiring and connected equipment against overload and short-circuit current. An RCCB/RCD protects against earth leakage by monitoring current imbalance. The two are complementary and are normally installed together in a distribution board.
• What does the Type C tripping curve mean?
  Type C trips at 5–10x rated current, giving enough headroom for motors, transformers, and ballast/LED-driver inrush without nuisance tripping.
• What does the 10kA breaking capacity mean?
  10kA is the maximum fault current this MCB can safely interrupt without damage. It should be equal to or higher than the prospective fault current at its installation point in the board.
• How many poles do I need?
  A 3-pole (3P) breaker switches all three phases on a three-phase circuit without a switched neutral.
• Is this MCB compatible with other ABB DIN-rail distribution boards?
  Yes — it's a standard DIN-rail (EN 60715) mounted breaker and clips directly into ABB's modular consumer units and distribution boards alongside other ABB DIN-rail devices.
• Can I install this myself?
  No. This is a distribution board component and must be installed and connected by a licensed electrician in accordance with UAE wiring regulations — it is not a DIY consumer product.
