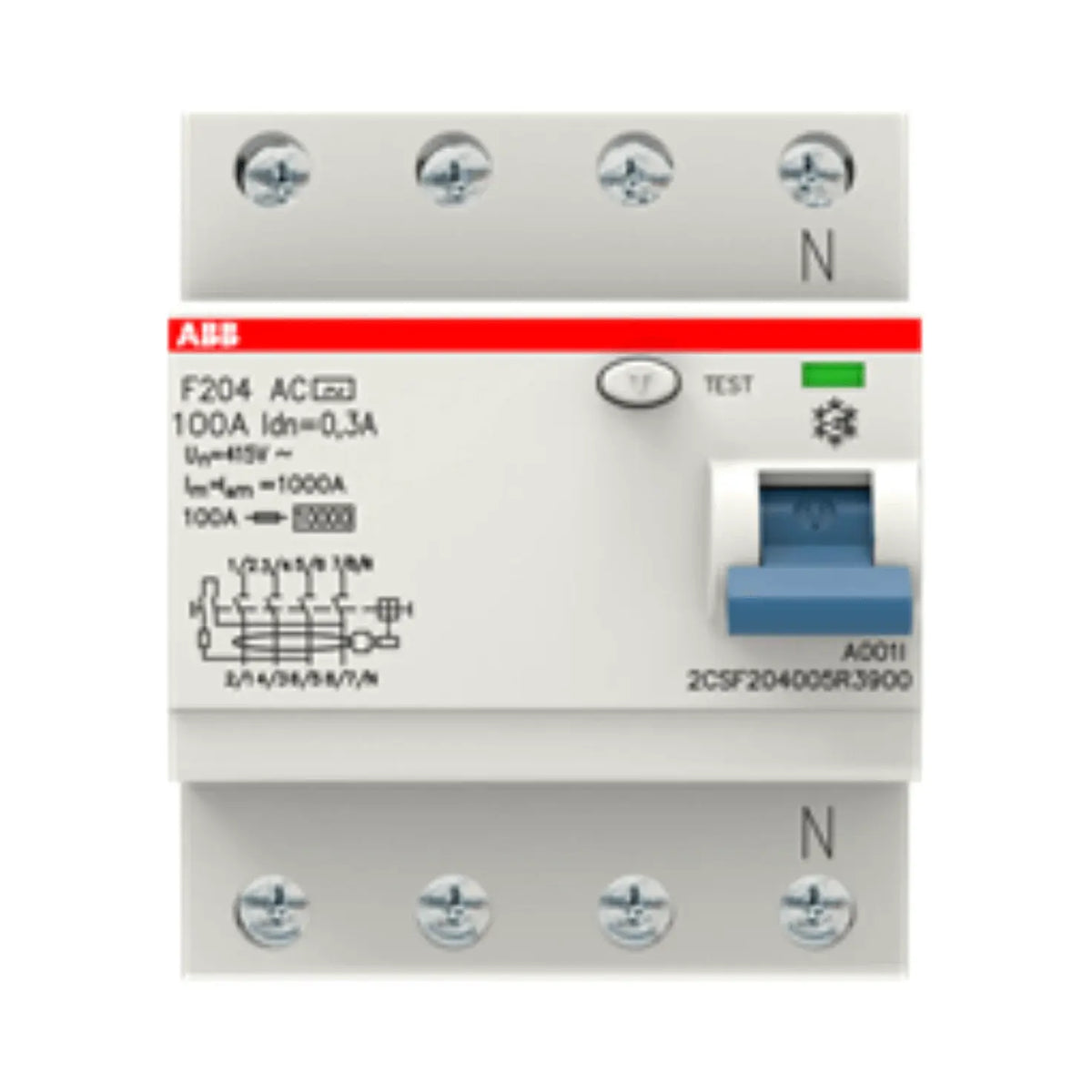

ABB F204 4P RCCB/ELCB, 100A, 300mA, front view with test button and N terminals

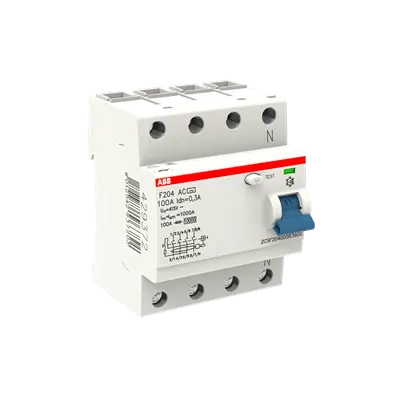

ABB 4P RCCB/ELCB, 100A, 300mA, white with blue test button (front view)

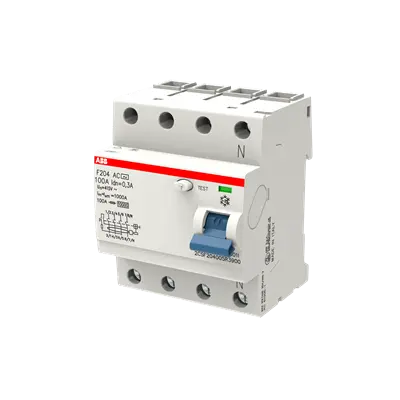

ABB ELCB/RCCB 100A 4P 300mA F204 blue test lever, front view
ABB F204 4P RCCB/ELCB, 100A, 300mA, front view with test button and N terminals
ABB 4P RCCB/ELCB, 100A, 300mA, white with blue test button (front view)
ABB ELCB/RCCB 100A 4P 300mA F204 blue test lever, front view

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB F204 RCCB 100A 4-Pole 300mA Type AC — ELCB

(0)
AED 363.00 inc. VAT
In stock
Usually ships within 24 hours
Fast UAE delivery & easy returns

Order before 12 PM for same-day dispatch. Delivered in 1–2 business days across the UAE, free on orders over AED 200 (AED 15 below). Unused items in sealed packaging can be returned within 7 days.

Free UAE delivery over AED 200
100% secure payments
Genuine branded products

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

ABB ELCB/RCCB 100A 4P 300mA F204

ABB Earth Leakage Circuit Breaker (ELCB/RCCB) 4-pole, 100 A, 300 mA residual current rating. Built for durability and reliable protection in UAE electrical installations.

Key Features

  • Four-pole (4P) residual current circuit breaker (RCCB) for earth-leakage protection
  • Rated current: 100 A with 300 mA residual current sensitivity
  • Type AC sensitivity: detects sinusoidal AC residual fault currents
  • Conditional short-circuit rating: 10 kA
  • Complies with IEC 61008
  • DIN-rail mounting for standard distribution boards
  • Brand: ABB
  • Current rating: 100 A
  • Type: ELCB/RCCB, 4P
  • Residual current rating: 300 mA
  • Model: F204
  • Durable construction for long service life

Technical specifications

Specification Value
Brand ABB
Product type ELCB / RCCB
Current rating 100 A
Poles 4P
Residual current rating 300 mA
Model F204

Applications

  • Protection for distribution boards in commercial and residential UAE projects
  • Suitable for 4-pole protection in main and sub-distribution panels
  • Ideal for electrical rooms and control panels requiring reliable earth leakage protection

FAQ

  • What's the difference between an MCB and an RCCB/RCD?
    An MCB protects circuits and wiring against overload and short-circuit current. An RCCB like this one protects against earth leakage by monitoring current imbalance and disconnecting the circuit — the two are complementary and are normally installed together in a distribution board.
  • What does the 300mA sensitivity rating mean?
    300mA RCCBs are sized for fire and equipment protection on larger circuits and sub-mains, not personal shock protection — that requires a 30mA device. A 300mA unit is a common choice as a main incomer or sub-distribution protection device upstream of 30mA final-circuit RCDs.
  • How many poles do I need?
    A 4-pole (4P) RCCB switches all three phases plus neutral together. Use 4P for three-phase supplies or distribution boards where the neutral must also be isolated; 2-pole devices are used for single-phase circuits.
  • Can this be used alongside MCBs in the same board?
    Yes. This RCCB is typically installed upstream of the MCBs it protects, on the same DIN rail, so a leakage fault trips the RCCB while overloads/short circuits are still cleared by the individual MCBs.
  • Can I install this myself?
    No. RCCBs are wired into a live distribution board and must be installed by a licensed electrician in line with UAE wiring regulations.
