Abb Fuse switch disconnector E 91/32

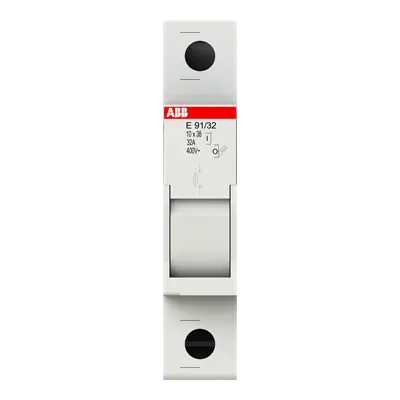

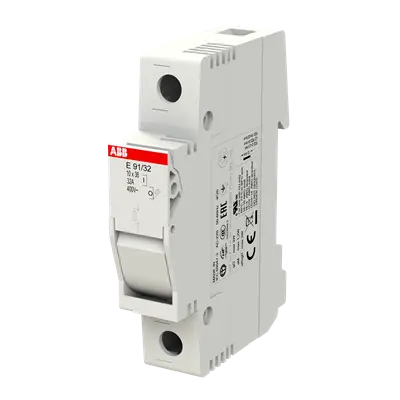

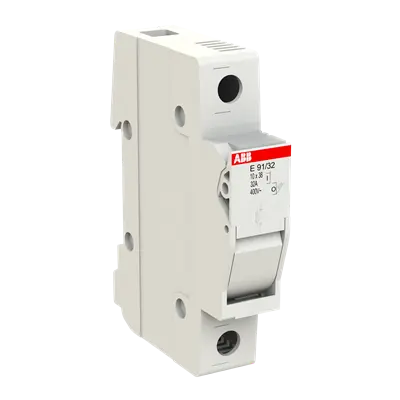

ABB E 91/32 1-Pole 32A Fuse Switch Disconnector

The E 91/32 is a 1-pole DIN rail mounted fuse switch disconnector designed for overcurrent and short circuit protection using 10x38 mm cylindrical fuse links. Rated at 32A, it combines a fuse holder with a switching function, allowing safe isolation of the protected circuit before fuse replacement. It is a practical solution for distribution boards and control panels across UAE commercial and industrial installations where cylindrical fuse protection is preferred.

Key Features

• 1-pole fuse switch disconnector rated for 32A, accepting 10x38 mm cylindrical fuse links
• Padlockable when open, supporting safe lock-out/tag-out procedures during maintenance
• Compact 18 mm width (1 modular spacing) for space-efficient DIN rail installation
• Rated insulation voltage of 1kV and operating temperature range of -5°C to +40°C, suited to UAE ambient conditions
• Genuine ABB quality

Technical Specifications

Applications

• Overcurrent and short circuit protection in distribution boards using cylindrical fuses
• Isolation point for maintenance on protected circuits in commercial UAE installations
• Fuse-based circuit protection in panel builder assemblies as an alternative to MCBs
• Retrofit fuse holder replacement in existing DIN rail distribution boards

FAQ

• Is this an MCB or an isolator?
  It's an isolator (switch-disconnector), not an MCB. It has no overload or short-circuit protection — it only provides a manual on/off disconnect, and should be paired with separate MCBs or RCCBs for circuit protection.
• Where should this isolator be installed?
  Typically as the main incoming switch or a local isolation point ahead of the MCBs/RCCBs in a distribution board, so the whole board (or a section of it) can be isolated for maintenance without needing to trip individual breakers.
• Can I install this myself?
  No. This is trade-only distribution board equipment and must be installed and connected by a licensed electrician in accordance with local wiring regulations.
• Can this isolator be used to switch a live circuit under load?
  Isolators rated for on-load switching can do this within their utilisation category, but check the specific AC rating in the Technical Specifications table — an isolator is not a protective device and should not substitute for a circuit breaker.

Orders placed before 12 PM (UAE time) are dispatched the same business day and delivered in 1–2 business days across the UAE. Delivery is free on orders over AED 200; below that it costs AED 15. International shipping is charged by weight at checkout, and international orders cannot be returned. Read our Shipping Policy and Refund Policy.

Download
