ABB CR-PLS Logical socket for 1c/o or 2c/o CR-P relays 1SVR405650R0000

(0)
AED 12.00 inc. VAT
In stock
Usually ships within 24 hours
Fast UAE delivery & easy returns

Order before 12 PM for same-day dispatch. Delivered in 1โ€“2 business days across the UAE, free on orders over AED 200 (AED 15 below). Unused items in sealed packaging can be returned within 7 days.

Free UAE delivery over AED 200
100% secure payments
Genuine branded products

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

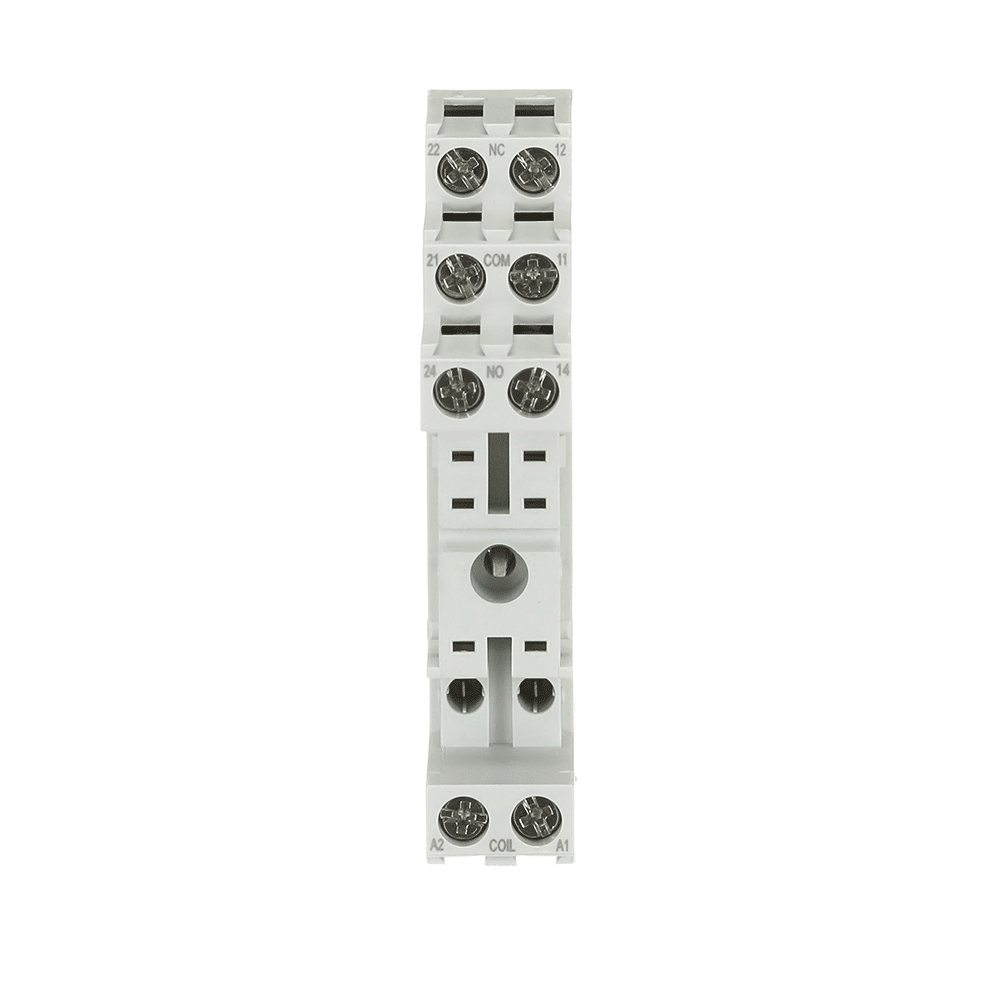

ABB CR-PLS Logical Socket for CR-P Relays

The CR-PLS is a logical socket from ABB's CR-P PCB relay range, built with protective safety isolation for use with CR-P relays featuring 1 c/o or 2 c/o (SPDT) output contacts. Fitted with screw connection terminals, it provides a secure mounting base for compact interface relays in control panels across UAE commercial and industrial installations.

Key Features

  • Compatible with CR-P interface relays with 1 c/o or 2 c/o (SPDT) output contacts
  • Logical socket design with protective separation for enhanced safety isolation
  • Screw connection terminals rated at 250V and 2A for secure, serviceable wiring
  • Compact form factor suited to space-constrained control panels and relay assemblies
  • Genuine ABB quality โ€” rated for operation from -40ยฐC to +70ยฐC

Technical Specifications

Specification Details
Brand ABB
Model CR-PLS
Function Logical socket for CR-P PCB relays
Compatible Relay Outputs 1 c/o or 2 c/o (SPDT)
Rated Operational Voltage 250V
Rated Operational Current (AC-12, 230V) 2A
Terminal Type Screw Terminals
Standards IEC/EN 61984, UL 508, CAN/CSA C22.2 No.14
Ambient Operating Temperature -40ยฐC to +70ยฐC
Flammability Rating UL94 V-0

Applications

  • Base socket for CR-P pluggable interface relays in control and automation panels
  • Applications requiring protective separation between control and load circuits
  • Relay bank assemblies in DIN rail-mounted control cabinets across UAE facilities
  • Serviceable relay installations where quick replacement without rewiring is required

FAQ

  • What is this socket/base used for?
    It's the DIN-rail or panel-mount base that a compatible pluggable relay plugs into โ€” the socket carries the field wiring terminals while the relay itself can be unplugged and swapped without disturbing the wiring.
  • Which relays is this compatible with?
    Check the Technical Specifications table and the model code for the exact matching relay range (e.g. ABB's CR-M or CR-P pluggable relay series) โ€” sockets and relays within the same range are designed to be interchangeable.
  • Can I install this myself?
    The socket itself can be DIN-rail clipped in easily, but wiring it into a live control panel should be done by a licensed electrician or qualified panel builder.
  • Does the socket come with the relay?
    No โ€” this is the socket/base only, sold separately from the plug-in relay. Confirm you're ordering both parts if you don't already have a compatible relay or socket.
