ABB Pilot LED Indicator Lamp Red 230VAC CL2-523R

(0)
AED 15.00 inc. VAT
In stock
Usually ships within 24 hours
Fast UAE delivery & easy returns

Order before 12 PM for same-day dispatch. Delivered in 1โ€“2 business days across the UAE, free on orders over AED 200 (AED 15 below). Unused items in sealed packaging can be returned within 7 days.

Free UAE delivery over AED 200
100% secure payments
Genuine branded products

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

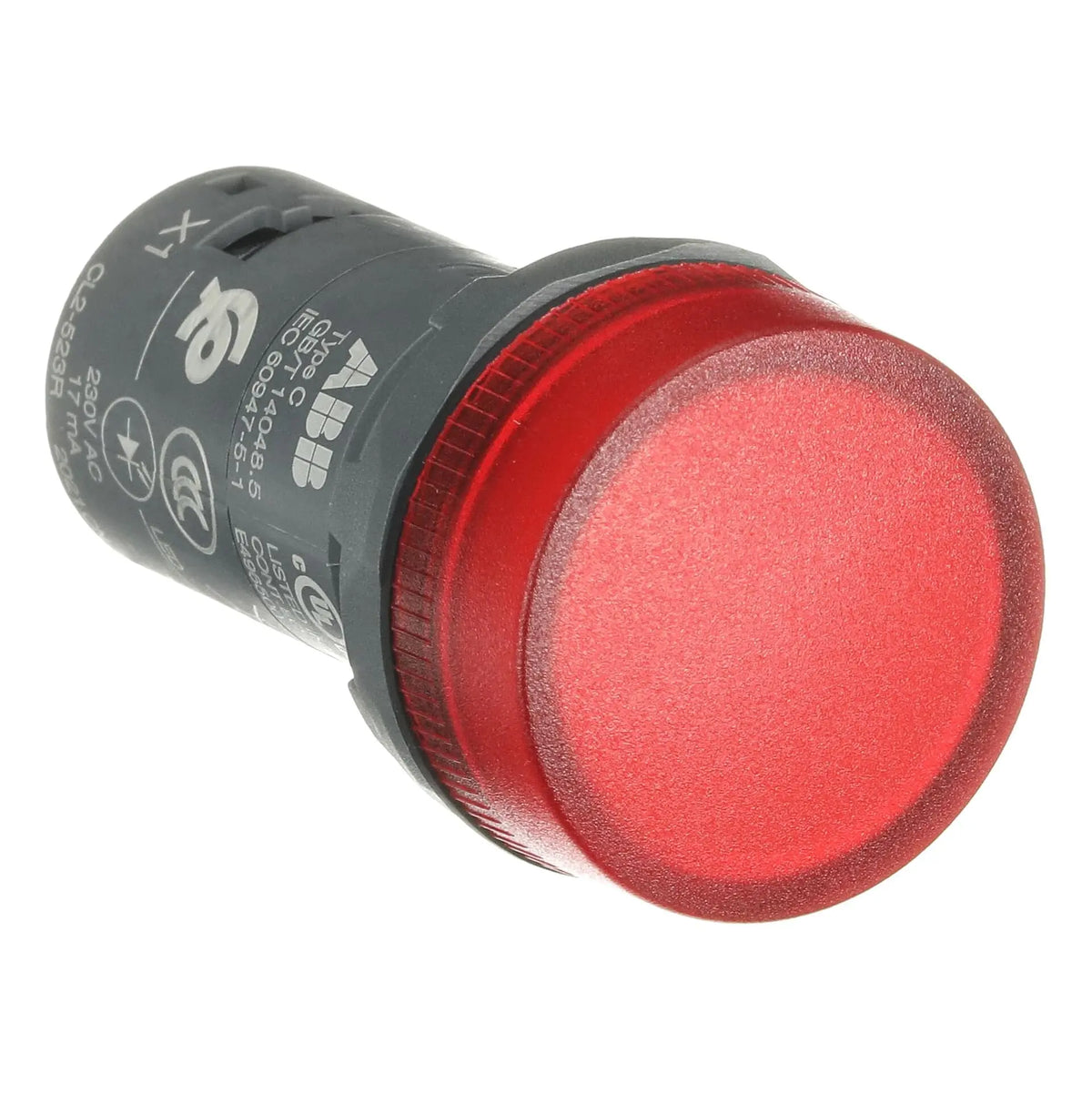

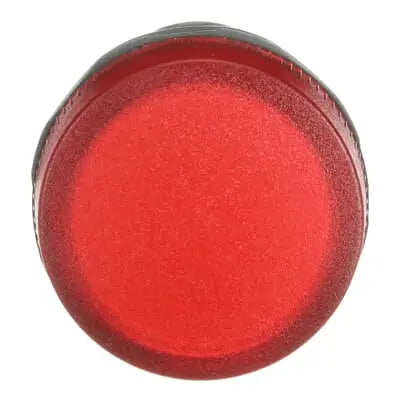

ABB CL2-523R Red Illuminated Pilot Light

The CL2-523R is a red illuminated pilot light head from ABB's compact CL range, operating at 230V AC with an integrated LED lamp. Built as an all-in-one solution to reduce installation time, it offers a high level of dust and water resistance, making it well suited for fault or alarm indication on control panels and machinery across UAE industrial and commercial sites.

Key Features

  • Red illuminated pilot light head with integrated 230V AC LED for clear fault or alarm indication
  • Compact all-in-one design that reduces installation time and panel space requirements
  • Front-facing IP66, IP67 and IP69K protection for dust, washdown and high-pressure spray resistance
  • Screw clamp terminals rated for a wide range of conductor sizes for flexible panel wiring
  • Genuine ABB quality โ€” reliable indication performance in demanding environments

Technical Specifications

Specification Details
Brand ABB
Model CL2-523R
Colour Red
Illumination Illuminated, integrated LED
Rated Operational Voltage 230V AC
Rated Frequency 50/60 Hz
Degree of Protection (Front) IP66 / IP67 / IP69K
Degree of Protection (Terminals) IP20
Terminal Type Screw Terminals
Ambient Operating Temperature -30ยฐC to +70ยฐC

Applications

  • Fault and alarm status indication on control panels in commercial and industrial buildings
  • Machine and equipment warning signaling in UAE manufacturing facilities
  • Outdoor and washdown-area panel indication thanks to high IP-rated front face
  • General switchboard and control desk visual signaling applications

FAQ

  • What is this accessory used for?
    It's a genuine ABB DIN-rail/panel accessory used alongside compatible ABB switchgear (breakers, contactors, enclosures) โ€” check the Technical Specifications table for the exact compatible device range.
  • Is this compatible with other ABB equipment I already have?
    Genuine ABB accessories are designed for ABB's own matching device ranges โ€” confirm the exact series/model compatibility in the product's Technical Specifications before ordering, since accessory ranges are model-specific.
  • Can I fit this myself?
    Simple panel accessories like pilot lamps and selector switches can often be fitted by a competent person, but anything involving live wiring or a distribution board should be done by a licensed electrician in line with UAE wiring regulations.
  • Does this come with the base device or is it sold separately?
    This is sold as a standalone accessory โ€” check the listing and your existing equipment to confirm it's the add-on rather than the complete base unit.
