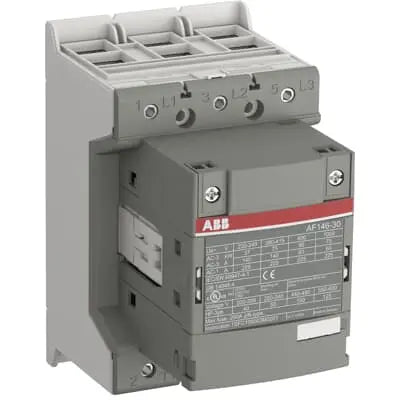

ABB AF146-30-00-13 3-Pole Contactor

The AF146-30-00-13 is a 3-pole block-type contactor rated at 1000V IEC (600V UL), designed to control motors up to 75 kW at 400V AC (AC-3) or switch power circuits up to 225A (AC-1). Built on ABB's AF technology, it features a wide control voltage range of 100-250V AC/DC, allowing it to manage voltage fluctuations reliably while reducing panel energy consumption. This makes it well suited for demanding motor control applications in UAE industrial facilities where power supply variation and high ambient temperatures are common considerations.

Key Features

  • 3-pole contactor controlling motors up to 75 kW / 400V AC (AC-3) or switching power circuits up to 225A (AC-1)
  • Wide control voltage range of 100-250V, 50/60Hz and DC, ensuring stable operation across unstable or variable networks
  • Built-in surge protection for a compact, reliable panel solution without additional external components
  • Block type design allowing easy extension with add-on auxiliary contact blocks and a wide range of ABB accessories
  • Genuine ABB quality

Technical Specifications

Specification Details
Brand ABB
Model AF146-30-00-13
Poles 3P
Main Contacts 3 NO
Rated Operational Current AC-1 225A (1000V, 40ยฐC)
Rated Operational Current AC-3 146A (380-415V, 60ยฐC)
Rated Operational Power AC-3 75 kW (380-415V)
Coil / Control Voltage (Uc) 100-250V, 50/60Hz and DC
Rated Insulation Voltage (Ui) 1000V (IEC) / 600V (UL/CSA)
Rated Impulse Withstand Voltage (Uimp) 8 kV
Mechanical Durability 5 million operations
Terminal Type Double Clamp
Degree of Protection Main terminals IP00 / Coil IP20 / Auxiliary IP40
Operating Temperature -25ยฐC to +55ยฐC (with thermal O/L relay)
Net Weight 1.55 kg

Applications

  • Motor starting and switching for HVAC pumps, compressors, and fans in commercial UAE buildings
  • Power circuit switching in industrial control panels and motor control centres
  • Applications with unstable or fluctuating control voltage networks, thanks to the wide coil voltage range
  • Panel builder assemblies requiring extendable contactors with auxiliary contact blocks

FAQ

  • What does this contactor control?
    It's an electrically-operated switch used to make/break a load circuit repeatedly under remote or automatic control โ€” commonly lighting banks, motors, HVAC equipment, or heating loads switched via a timer, BMS, or control relay.
  • Does this need a separate overload relay for motor protection?
    Yes, if it's controlling a motor โ€” a contactor alone doesn't protect against sustained overload. Pair it with a compatible thermal overload relay (see ABB's matching TF/TA-series relays) to form a full motor starter.
  • Can I control this contactor with a timer or BMS?
    Yes โ€” the coil is designed for remote switching from a timer, PLC, BMS, or control relay rather than direct manual operation, making it suited to automated load switching.
  • Can I install this myself?
    No. Contactors are wired into live control and power circuits and must be installed by a licensed electrician in accordance with UAE wiring regulations.
