ABB SH203-C6 MCB 6A 3-Pole 6kA Type C

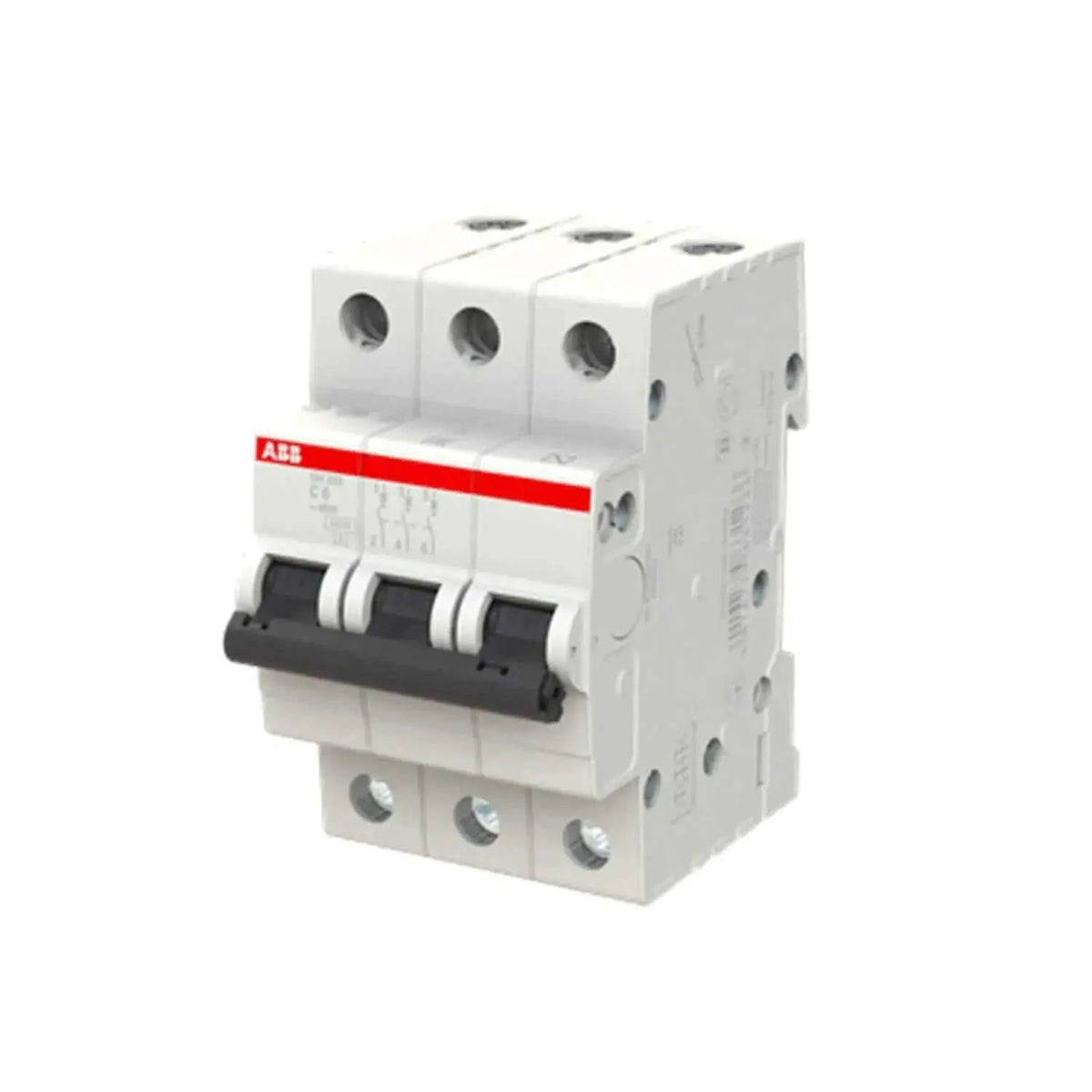

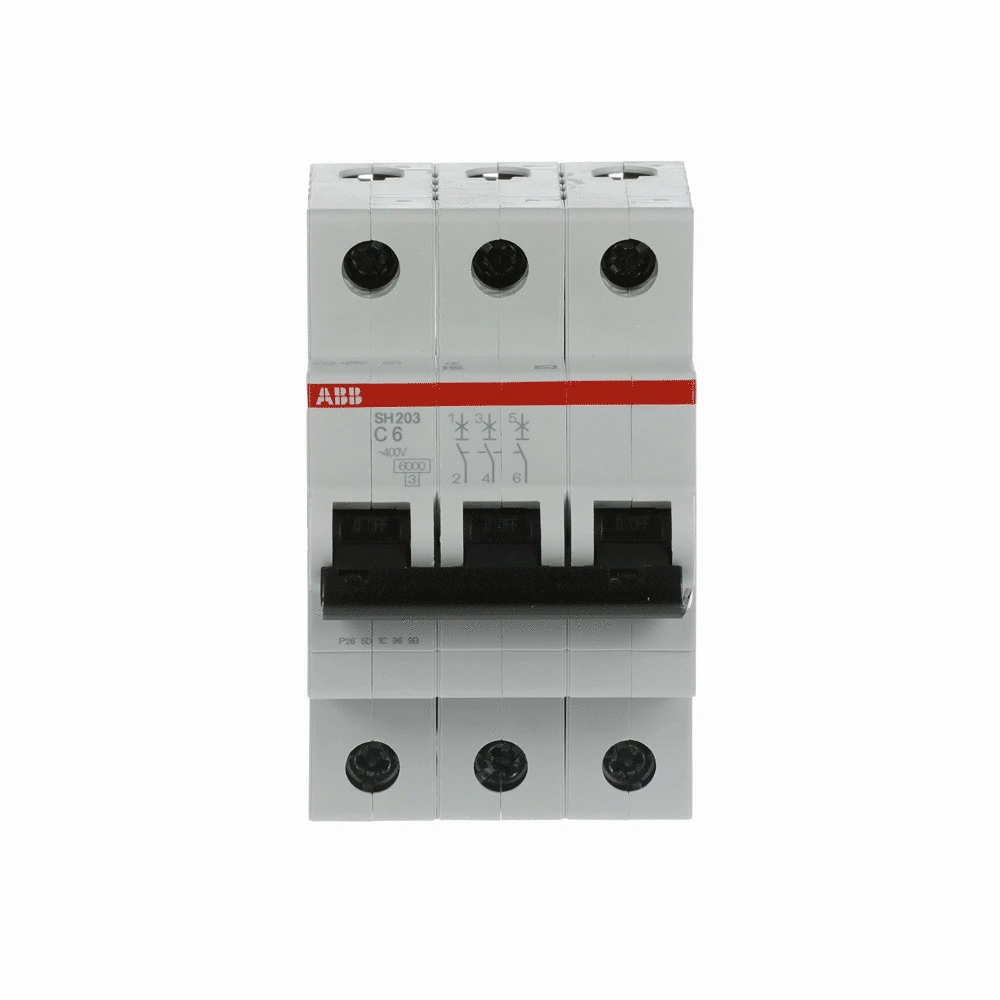

ABB SH203-C6 3-Pole Miniature Circuit Breaker, 6 A, 400 V

Protect installations from overload and short-circuits with ABB’s System pro M compact S200 3‑pole MCB. This 6 A device combines reliable current-limiting protection with space-saving installation features, designed for domestic and residential applications across markets that require IEC, UL, and CSA compliance.

Key Features

• 3 poles with 6 A rating, 400 V
• Current-limiting overcurrent protection with dual tripping mechanisms
• Space-saving bottom-fixing auxiliary contact design
• Wide market coverage with international standards compliance (IEC, UL, CSA)
• DIN rail mounting for quick, secure installation

Technical Specifications

Applications

• Domestic and residential installations in specified markets
• Protection for lighting circuits, outlets, and small appliance circuits
• Distribution boards and consumer units where compact, reliable MCB protection is required

FAQ

• What's the difference between an MCB and an RCCB/RCD?
  An MCB (miniature circuit breaker) protects wiring and connected equipment against overload and short-circuit current. An RCCB/RCD protects against earth leakage by monitoring current imbalance. The two are complementary and are normally installed together in a distribution board.
• What does the Type C tripping curve mean?
  Type C trips at 5–10x rated current, giving enough headroom for motors, transformers, and ballast/LED-driver inrush without nuisance tripping.
• What does the 6kA breaking capacity mean?
  6kA is the maximum fault current this MCB can safely interrupt without damage. It should be equal to or higher than the prospective fault current at its installation point in the board.
• How many poles do I need?
  A 3-pole (3P) breaker switches all three phases on a three-phase circuit without a switched neutral.
• Is this MCB compatible with other ABB DIN-rail distribution boards?
  Yes — it's a standard DIN-rail (EN 60715) mounted breaker and clips directly into ABB's modular consumer units and distribution boards alongside other ABB DIN-rail devices.
• Can I install this myself?
  No. This is a distribution board component and must be installed and connected by a licensed electrician in accordance with UAE wiring regulations — it is not a DIY consumer product.
