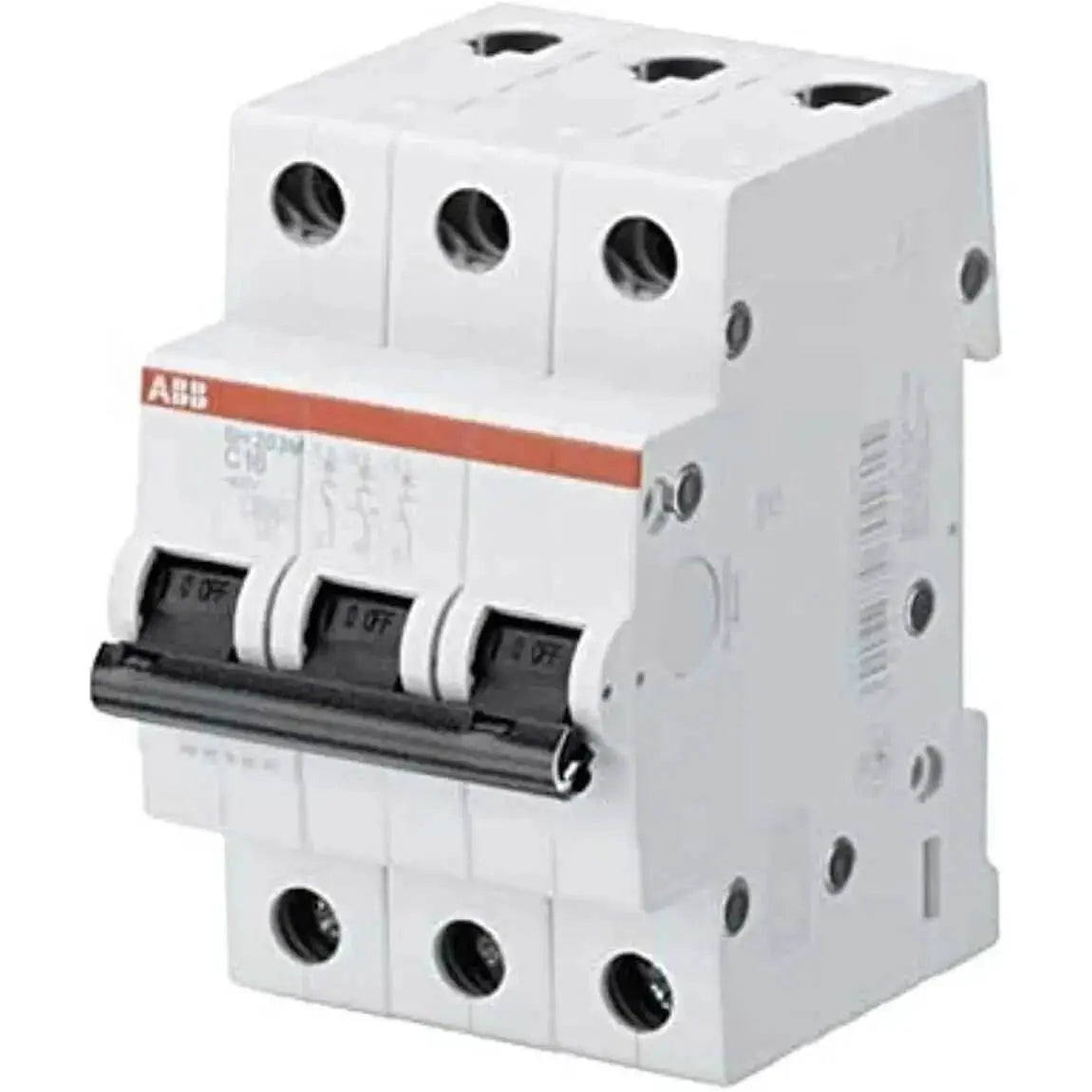

ABB Miniature Circuit Breaker SH203M-C40 is a three-pole, 40 A MCB designed for reliable fault protection in distribution boards, control panels, and commercial/industrial electrical systems. With a 10 kA breaking capacity, it quickly isolates faults to minimise damage and downtime.
Key Features
- Brand: ABB
- Model: SH203M-C40
- Type: Standard, 3-pole
- Current rating: 40 A
- Breaking capacity: 10 kA
- Manufacturer part: 2CDS273011R0404
- Reliable protection for electrical circuits in UAE installations
Technical Specifications
| Parameter |
Value |
| Brand |
ABB |
| Model |
SH203M-C40 |
| Type |
Standard, 3-pole |
| Current rating |
40 A |
| Breaking capacity |
10 kA |
| Manufacturer part |
2CDS273011R0404 |
Applications
- Residential distribution boards
- Commercial control panels
- Industrial electrical installations
- Backup power and sub-panel protection
- Renewable energy system secondary protection
FAQ
-
What's the difference between an MCB and an RCCB/RCD?
An MCB (miniature circuit breaker) protects wiring and connected equipment against overload and short-circuit current. An RCCB/RCD protects against earth leakage by monitoring current imbalance. The two are complementary and are normally installed together in a distribution board.
-
What does the Type C tripping curve mean?
Type C trips at 5–10x rated current, giving enough headroom for motors, transformers, and ballast/LED-driver inrush without nuisance tripping.
-
What does the 10kA breaking capacity mean?
10kA is the maximum fault current this MCB can safely interrupt without damage. It should be equal to or higher than the prospective fault current at its installation point in the board.
-
How many poles do I need?
A 3-pole (3P) breaker switches all three phases on a three-phase circuit without a switched neutral.
-
Is this MCB compatible with other ABB DIN-rail distribution boards?
Yes — it's a standard DIN-rail (EN 60715) mounted breaker and clips directly into ABB's modular consumer units and distribution boards alongside other ABB DIN-rail devices.
-
Can I install this myself?
No. This is a distribution board component and must be installed and connected by a licensed electrician in accordance with UAE wiring regulations — it is not a DIY consumer product.
