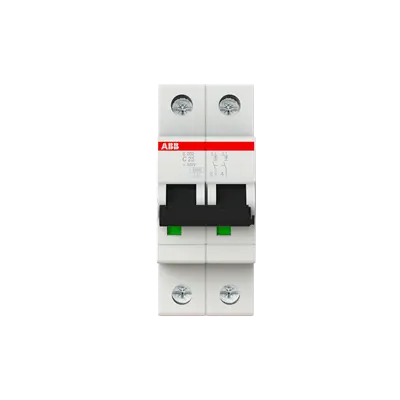

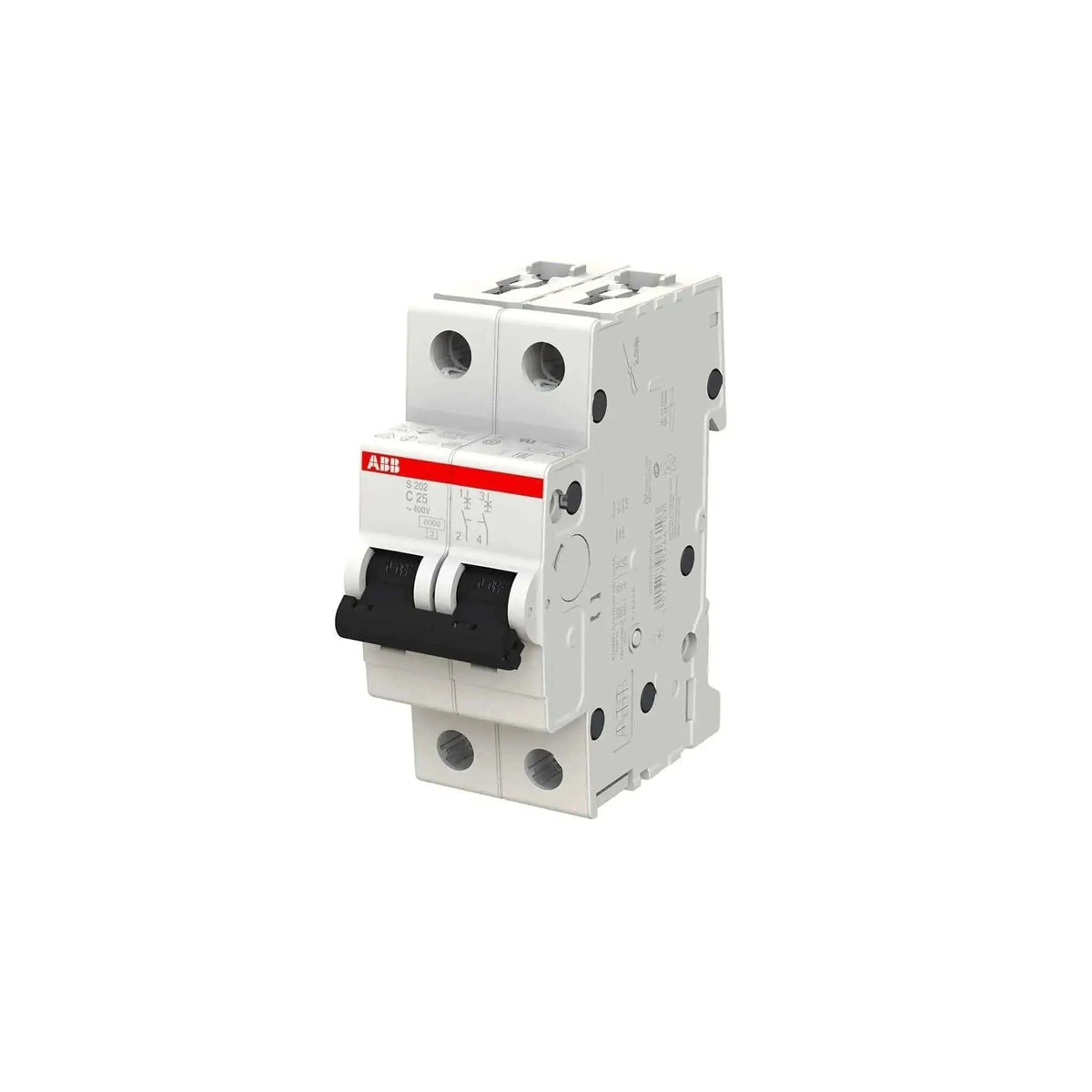

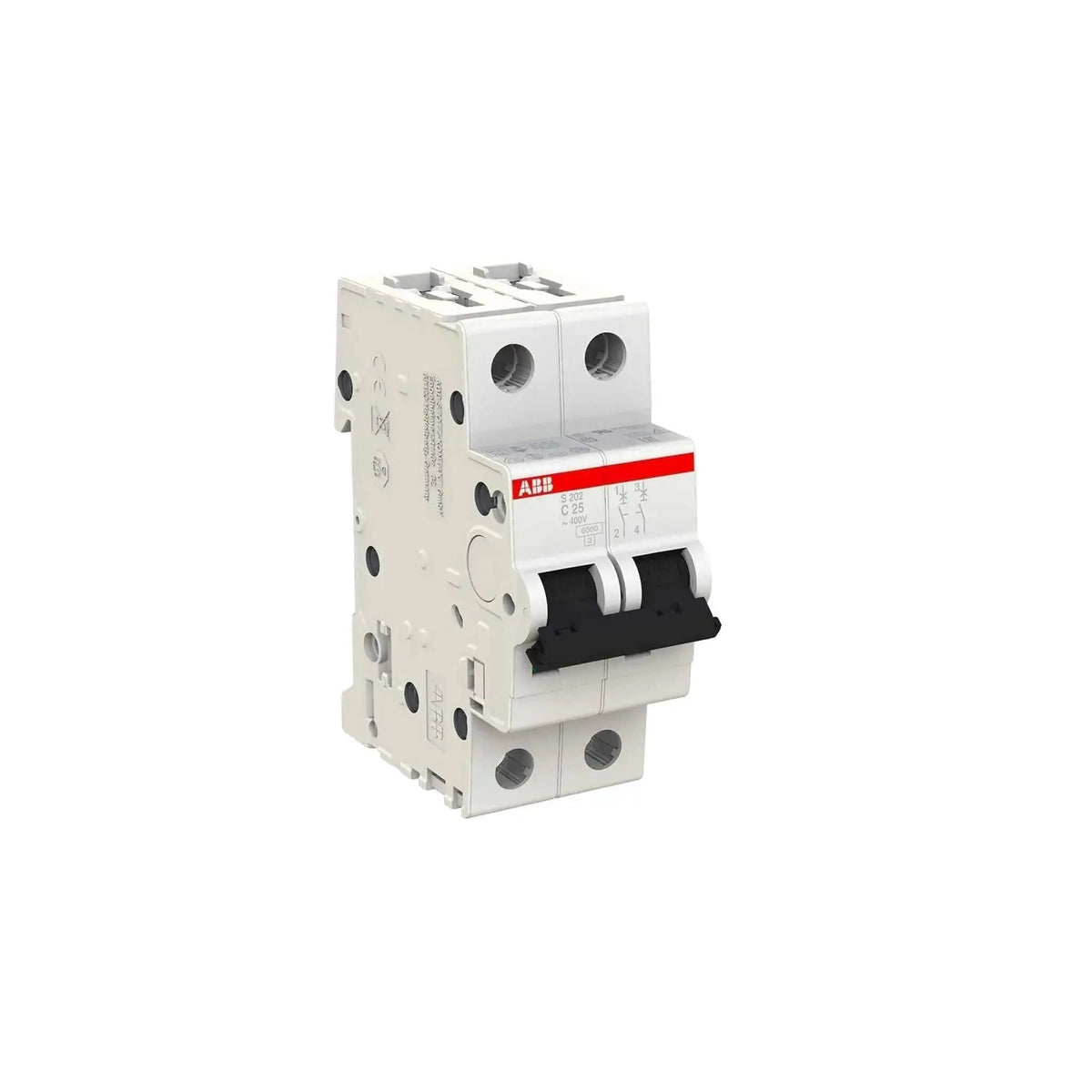

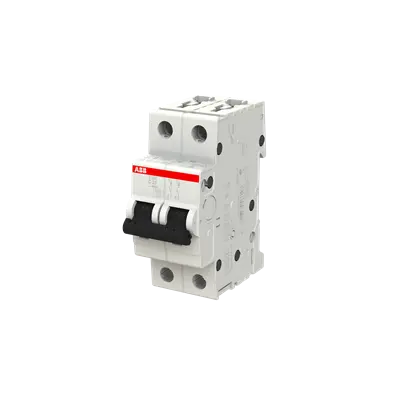

ABB Miniature Circuit Breaker S202-C25 — 2P, 25 A, 6 kA, Type C
ABB S202-C25 is a 2‑pole miniature circuit breaker rated for 25 A with a 6 kA breaking capacity, designed for versatile protection in low‑voltage installations. Part of the S200/S202 family, it supports screwless and captive-screw terminals, a bottom‑fix auxiliary contact, and a range of accessories for control and remote monitoring. Suitable for residential, commercial, marine, railway, and industrial applications in the UAE, it delivers compact, reliable protection with easy wiring.
Key Features
- Two-pole (2P) MCB for simultaneous line and neutral protection
- Rated current: 25 A with 6 kA breaking capacity at 400 V AC
- Type C tripping curve for general-purpose circuits
- Dual trip mechanism: delayed thermal (overload) and electromagnetic (short-circuit)
- Complies with IEC/EN 60898-1, IEC/EN 60947-2 and UL1077
- DIN-rail mounting (TH35-15, 35 x 15 mm rail)
- Brand: ABB
- Current rating: 25 A
- Nominal voltage: 72 V
- Poles: 2 (DP)
- Breaker type: Type C
- Breaking capacity: 6 kA
- Terminals: Twin terminals with captive screws
- Mounting: Bottom fixing
- Accessory options: Control and remote‑monitoring accessories
Technical Specifications
| Specification |
Value |
| Brand |
ABB |
| Model |
S202-C25 |
| Series |
S200 / S202 family |
| Current rating |
25 A |
| Nominal voltage |
72 V |
| Poles |
2 |
| Breaker curve |
Type C |
| Breaking capacity |
6 kA |
| Mounting |
Bottom fixing |
| Terminals |
Twin terminals with captive screws |
Applications
- Protection for DC circuits up to 72 V in electrical panels and control cabinets
- Residential, commercial, marine, and railway installations requiring reliable two‑pole protection
- Compact design suited for space‑constrained distribution boards
FAQ
-
What's the difference between an MCB and an RCCB/RCD?
An MCB (miniature circuit breaker) protects wiring and connected equipment against overload and short-circuit current. An RCCB/RCD protects against earth leakage by monitoring current imbalance. The two are complementary and are normally installed together in a distribution board.
-
What does the Type C tripping curve mean?
Type C trips at 5–10x rated current, giving enough headroom for motors, transformers, and ballast/LED-driver inrush without nuisance tripping.
-
What does the 6kA breaking capacity mean?
6kA is the maximum fault current this MCB can safely interrupt without damage. It should be equal to or higher than the prospective fault current at its installation point in the board.
-
How many poles do I need?
A 2-pole (2P) breaker switches both live and neutral together, giving full isolation on a single-phase circuit.
-
Is this MCB compatible with other ABB DIN-rail distribution boards?
Yes — it's a standard DIN-rail (EN 60715) mounted breaker and clips directly into ABB's modular consumer units and distribution boards alongside other ABB DIN-rail devices.
-
Can I install this myself?
No. This is a distribution board component and must be installed and connected by a licensed electrician in accordance with UAE wiring regulations — it is not a DIY consumer product.
